Home LED UFO High Bay Light
LED UFO High Bay Light LED UFO High Bay Light LED UFO High Bay Light LED UFO High Bay Light LED UFO High Bay Light LED UFO High Bay Light LED UFO High Bay Light

LED UFO High Bay Light

Item No.: NG-BIUFO
· ETL CE DLC approved
· 150LM/W SMD3030 Chips
· Adjustable wattages: 100W/ 150W/ 200W/ 240W

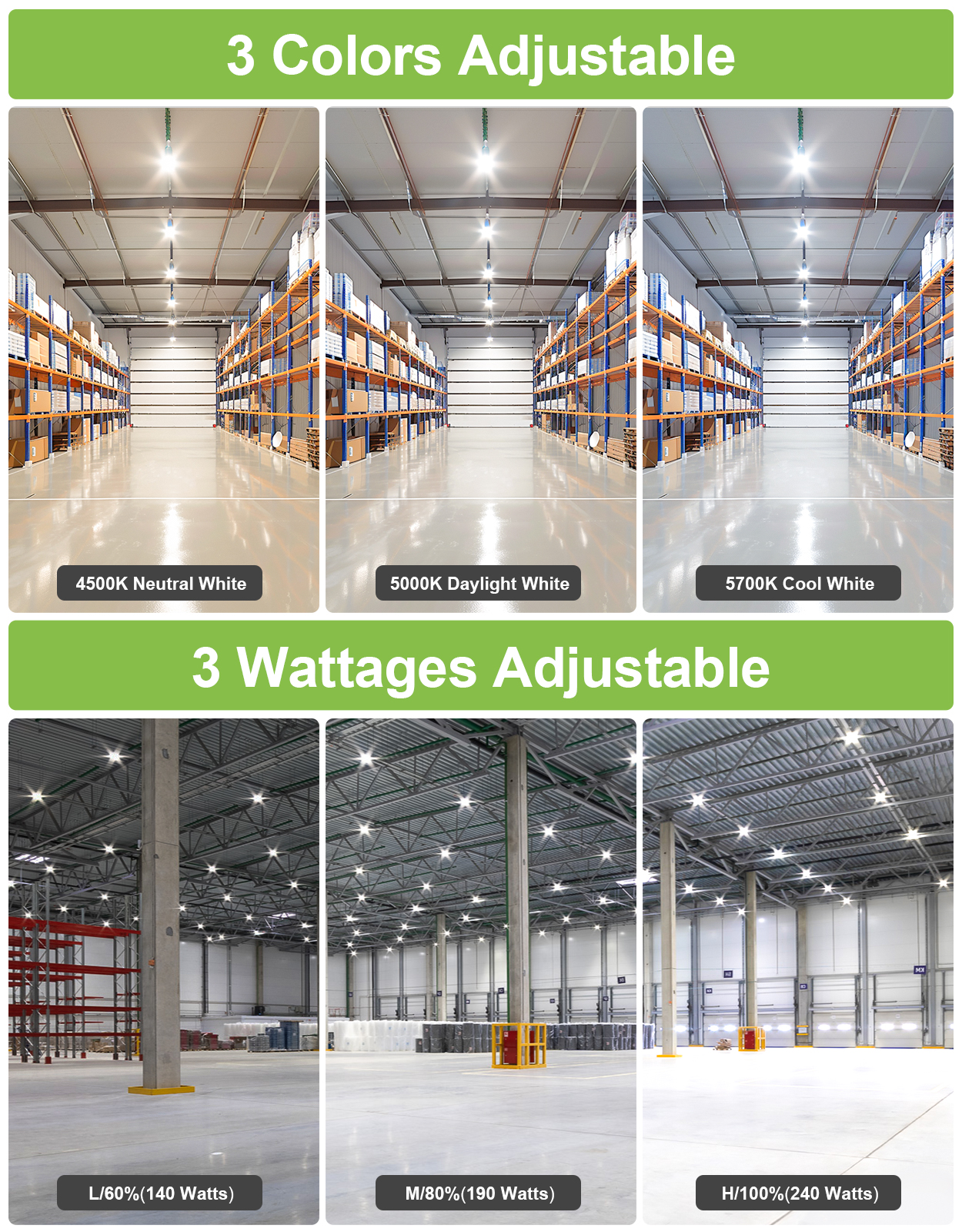

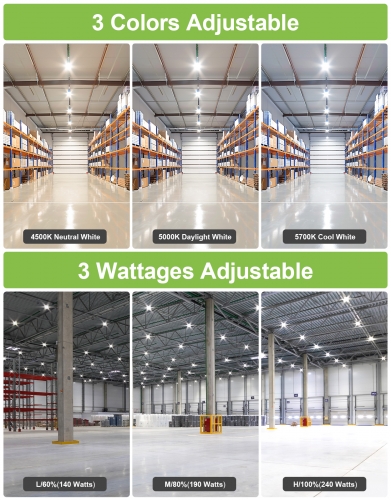

· Adjustable CCT: 4500K/ 5000K/ 5700K
· Voltage rating: 100-277VAC
· 5-Year warranty
Quantity
-
+
Login to Order Request Quote
Description DLC Certification FAQ Overseas Warehouse
Description
Item No. Wattage Input voltage Light Source Luminous Flux CCT (k) Light Effi. Beam Angle LED Driver Dimension
NG-BIUFO-150W 150W 100~277V 180pcs SMD3030 21000Lm 4500K
5000K
5700K		 140LM/W 120° UL DRIVER Φ310*150mm
NG-BIUFO-150W Tunable
90W
120W
150W		 100~277V 360pcs SMD3030
180(3000K)
180(5000K)		 21000Lm 4500K
5000K
5700K		 140LM/W 120° UL DRIVER Φ310*150mm
NG-BIUFO-200W 200W 100~277V 260pcs SMD3030 28000Lm 4500K
5000K
5700K		 140LM/W 120° UL DRIVER Φ310*150mm
NG-BIUFO-200W Tunable
120W
160W
200W		 100~277V 520pcs SMD3030
260(3000K)
260(5000K)		 28000Lm 4500K
5000K
5700K		 140LM/W 120° UL DRIVER Φ310*150mm
NG-BIUFO-240W 240W 100~277V 260pcs SMD3030 33600Lm 4500K
5000K
5700K		 140LM/W 120° UL DRIVER Φ310*150mm
NG-BIUFO-240W Tunable
144W
192W
240W		 100~277V 520pcs SMD3030
260(3000K)
260(5000K)		 33600Lm 4500K
​​​​​​​ 5000K
5700K		 140LM/W 120° UL DRIVER Φ310*150mm
​​​​​​​
  led post top light led parking lot light led shop light led bulb light led temporary work
  LED Post Top Lights LED Parking Lot Light LED Shop Light
LED Corn Bulb Light
 		 LED Temporary Work LED Wall Light

 Voltage

 AC100-277V AC100-480V AC120V士10% AC100-480V AC100-277V AC100-277V
  Applications Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on IndoorUse,shop,warehouse,
workshop,garage,office, and so on		 Indoor and Outdoor Use,
warehouse, parking lot, street, area, roadway, driveway, square, tennis court and so on		 Indoor and Outdoor Use, Job site, construction site, tunnel, garage, workshop and so on IndoorUse,shop,warehouse,
workshop,garage,office, and so on

 Lumens
 		 7800LM~19500LM 14000LM~44800LM 14000LM~16800LM 4332LM~39280LM 8400LM~21000LM 7800LM~19500LM

Feature
 		 Dusk to Dawn Dusk to Dawn Super Bright Super Bright Super Bright Super Bright
DLC Certification

For more details please click the picture
FAQ

Q: What is the driver brand of the 300W UFO?

A: Sosen brand.

Q: What reflector should I use?

A: This high bay light fixture is 120 ° angle. We recommend using a 90 ° reflector with an anti-glare UGR less than 19. The picture of the reflector has been sent to you for reference.

Q: Can I order them with a plug and a longer cord if requested?

A: Sure, We can made longer plug for you as your required.


Q: If i don't have a desire to dim the lights, what do i do with the dimmers wires? or should i just buy the non-dimmable version?

A: You do nothing with the dimmer wires.Just leave them unconnected to anything the light will stay at 100% brightness. You can also trim them if needed be.

Q: Do this come in 480 volt?

A: No. This one light is only 100-277 volt.

Q: Is there black ones?

A: Our factory only stock black one, if you need white one need meet the MOQ 100pcs.


Q: Can I insert inside football field aluminum enclosed fixture?

A: Sorry it could not be used in an enclosed fixture, as it's hard to dissipate heat in a closed situation. So we suggest using led high bay light in open indoor places like warehouse gym barn and shop ect.

Q: Can these be used for plants?

A: Sorry, it could not be used for plants, we suggest buying led light specially for plants.

Q: Can you wire this for 240 or 277?

A: It is rated for 100-277v, so the light could be wired to 240 or 277 volts.

Q: Does this high bay light have motion sensor?

A: This light does not have a motion sensor.You could choose our NGUFO/UFO PRO version.

Q: Does this light require a ballast?

A:：Pls remove ballast or bypass ballest since LED lights use a "driver" not a ballast, it is all included ready to go, just put a plug end on it or wire it direct and your set.


Q: We live in cold climate,what is the operating temperature range and storage range temperature?

A: -30℃-55℃,-22°F-131°F

Overseas Warehouse
led high bay light

US&Canada Warehouse Fast& Convenient Delivery Located in CA,OH.Where we ship the lights depends on what products you need and our inventory conditions. After got inquiry we will check which warehouse ship the light to you.

led high bay light
