LED Post Top Light

Item No.: NG-AL
IP65 Dust free and waterproof
Die- casting housing anti- corrosion
120 degree Directly down lighting
6K High voltage Surge test approved.
No magnetic disturbance driver design
Quantity
-
+
Description DLC Certification FAQ Overseas Warehouse
Description

Series

Lumens Base Beam Angle(Degree) Electrical Data LED Type Color Temperature Color Rendering Index

NG-AL-60W


7800Lm


 3 pin wires  120° Input Voltage
100-277V 50~60Hz
Power Factor(%)
>90
SMD 2835 Chips  3000K
 4000K
 5000K


Ra>=80



NG-AL-80W


 10400Lm  3 pin wires

NG-AL-100W

 13000Lm  3 pin wires
NG-AL-120W 15600Lm 3 pin wires

NG-AL-150W

 19500Lm  3 pin wires

NG-AL-200W

26000Lm 3 pin wires

led post top light led garden lightled post top light strucrureled post top light wiring diagramled post top light sfkidtable cct

  led parking lot light led retrofit kits led wall pack light led flood light led garden light
  LED Stadium Lights LED Parking Lot Light LED Retrofit Kits
LED Wall Pack Light

LED Flood Light LED Post Top Light

 Voltage

AC100-480V AC100-480V AC100-480V AC100-277V AC100-277V AC100-277V
  Applications Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, Yard, Barn, Street, Area, Pathway, Patio and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on

 Lumens


84000LM~130000LM 14000LM~44800LM 14000LM~42000LM 8400LM~16800LM 14000LM~42000LM 7800LM~19500LM

Feature


Super Bright Dusk to Dawn Super Bright Dusk to Dawn Super Bright Dusk to Dawn
DLC Certification

For more details please click the picture
FAQ
Q: Do your led post top light have photocell sensor?
A: Yes, the light photocell sensor is optional. You can choose one with photocell sensor, which automatically closes at dawn, opens at dark. And you can also choose one with photocell sensor and shortaging cap, when you take this cap on the photocell sensor, the light will be a regular light, no dusk to dawn function; but when this cap been removed, you can get the dusk to dawn function again.

Q: Does this have CCT seletable and wattage selectable function?
A: Yes, its have CCT& wattage selectable function, Its just canbe change by button, its very easy.

Q: Does this lamp have any certification?
A: Yes, this led post top light is UL cUL certified, and it’s also DLC approved, it’s ok for you to apply for rebate. And we provide 5 years warranty. Anything wrong during the warranty period, we’ll solve it for you.

Q: Does this led post top light come with a pole?

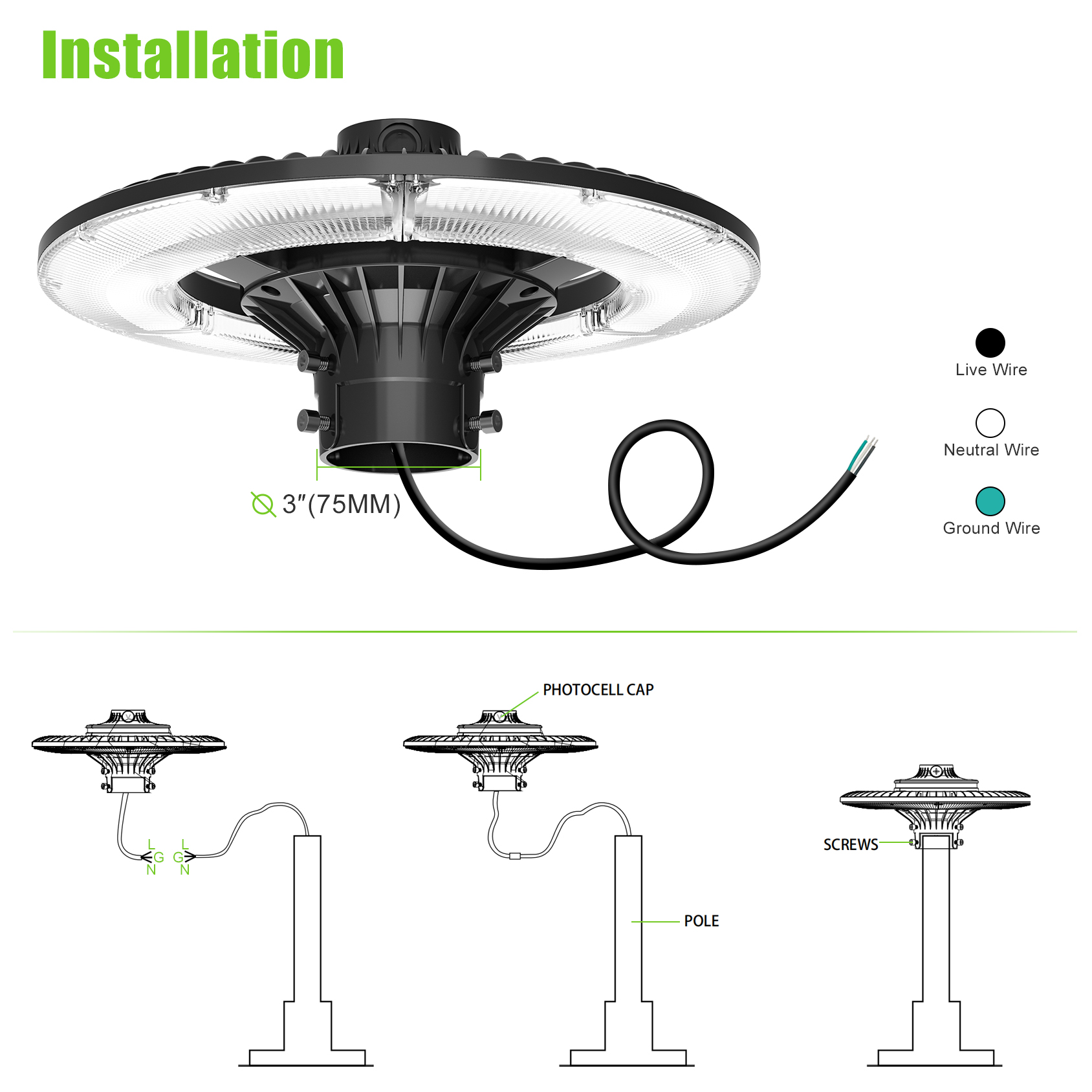

A: Sorry, the pole is not included. And the led post top light fits for a 2 3/8 inch OD tenon & less than or equal to 3 inch standard pole. Install height from floor higher than 1.2m

Q: Will this light work on a 120 power source?
A: Yes, this led post top light can be used at 100-277volt, 50/60HZ, can be work on a 120v power.

Q: What’s light efficiency?
A: The light efficiency of this led post top light can reach up to 135-150lm/w, we use high efficiency SMD 3030.

Q: Is the round lamp head metal or plastic?
A: Metal, this led post top light is die-casting aluminum body, with high transmittance PC lens cover. IP65 waterproof and Anti- fade, Anti-corrosion.

Q: Can this plug into a standard outlets?
A: Please kindly note that this post top light are not equipped with a plug, their installation method is wired connection.

Q: Can you makes it in a 4000k version?
A: Yes, we provide it from 3000k to 6500k, warm white light, daylight, pure white light and cool white light.

Q: Can we replace bulb only ?
A: No, there is no bulb to replace. This is a complete unit, LED board, and drivers built in.
