CCT Power Adjustable LED Corn light

Item No.: NG-FCL
* Adjustable wattages: 60%/ 80%/ 100%
* Adjustable CCT: 4500K/ 5000K/ 5700K
* 40% more LEDs compared to general corn bulbs available in the market
* Available in 30~150W power range
* Supports 100~277V voltage input
* Offers a lifespan of 50,000 hour
Quantity
-
+
Description DLC Certification FAQ Overseas Warehouse
Description

Item No. Wattage Input voltage Light Source Luminous Flux Light Effi. CCT Screw Base Dimension
NG-FCL-30W Tunable
18W
24W
30W
100~277V 280pcs SMD2835 4500Lm 150LM/W Tunable         4500K               5000K               5700K E26 E27
E39 E40 EX39
Φ82*162mm
NG-FCL-45W Tunable
27W
36W
45W
100~277V 280pcs SMD2835 6750Lm 150LM/W Tunable         4500K               5000K               5700K E26 E27
E39 E40 EX39
Φ82*162mm
NG-FCL-60W Tunable
36W                              48W
60W
100~277V 504pcs SMD2835 9000Lm 150LM/W Tunable         4500K               5000K               5700K E26 E27
E39 E40 EX39
Φ82*204mm
NG-FCL-75W Tunable
45W
60W
75W
100~277V 504pcs SMD2835 11250Lm 150LM/W Tunable         4500K               5000K               5700K E26 E27
E39 E40 EX39
Φ82*204mm
NG-FCL-80W Tunable
48W                                64W
80W
100~277V 504pcs SMD2835 12000Lm 150LM/W Tunable         4500K               5000K               5700K E26 E27
E39 E40 EX39
Φ105*188mm
NG-FCL-100W Tunable
60W                    80W
100W
100~277V 504pcs SMD2835 15000Lm 150LM/W Tunable         4500K               5000K               5700K E26 E27
E39 E40 EX39
Φ105*188mm
NG-FCL-120W Tunable
72W                   96W
120W
100~277V 728pcs SMD2835 18000Lm 150LM/W Tunable         4500K               5000K               5700K E26 E27
E39 E40 EX39
Φ105*228mm
NG-FCL-150W Tunable
90W                  120W
150W
100~277V 728pcs SMD2835 22500Lm 150LM/W Tunable         4500K               5000K               5700K E26 E27
E39 E40 EX39
Φ105*228mm


* Adjustable wattages: 60%/ 80%/ 100%
* Adjustable CCT: 4500K/ 5000K/ 5700K
* 40% more LEDs compared to general corn bulbs available in the market
* Suitable for replacing 100~600W metal halide/HPS
* Transparent PBT Cover, Aluminum fin heat sink
* Equipped with 2 fans for active cooling
* Available in 30~150W power range
* Supports 100~277V voltage input
* Provides a 360-degree beam angle
* 6K High voltage surge test passed
* Offers a lifespan of 50,000 hours
* E26/ E27/ E39/ E40 Mogul screw base
* SMD2835, 150lm/w LED chips
* Emits no UV or IR radiation
* No magnetic disturbance driver
* 5 years warranty
  led post top light led parking lot light led temporary work led garage light
  LED Post Top Lights LED Parking Lot Light LED High Bay Light
LED Corn Bulb Light

LED Temporary Work LED Garage Light

 Voltage

AC100-277V AC100-480V AC100-480V AC100-277V AC100-277V AC100-277V
  Applications Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on IndoorUse,shop,warehouse,
workshop,garage,office, and so on
Indoor and Outdoor Use,
warehouse, parking lot, street, area, roadway, driveway, square, tennis court and so on
Indoor and Outdoor Use, Job site, construction site, tunnel, garage, workshop and so on IndoorUse,shop,warehouse,
workshop,garage,office, and so on

 Lumens

7800LM~19500LM 14000LM~44800LM 14000LM~16800LM 4332LM~39280LM 8400LM~21000LM 8400LM~21000LM

Feature

Dusk to Dawn Dusk to Dawn Super Bright Super Bright Super Bright Super Bright

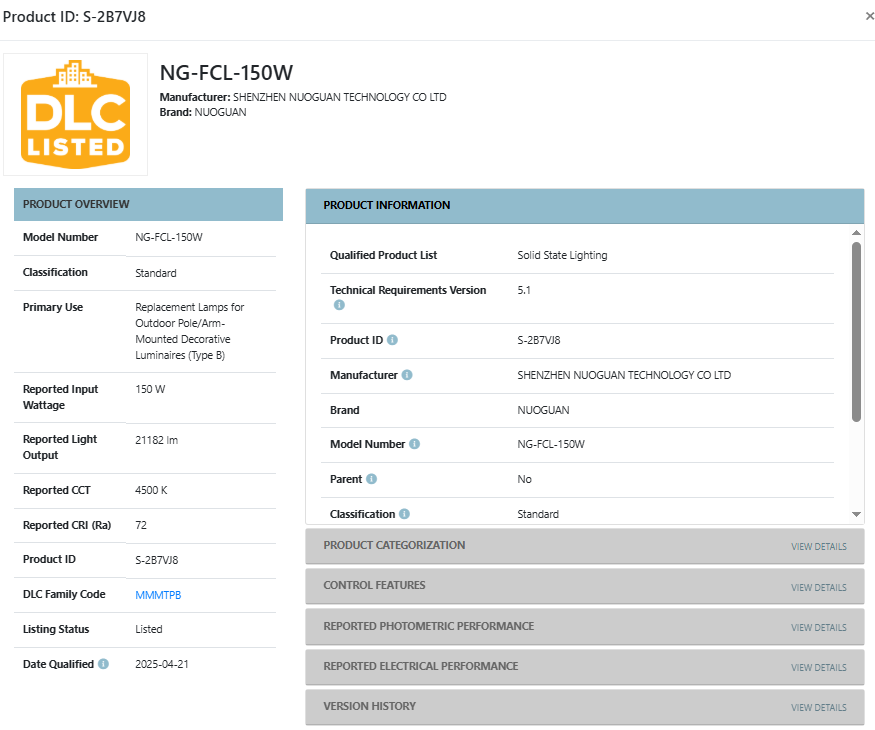

DLC Certification

For more details please click the picture
FAQ

Q: Can corn bulb be used in a enclosed outside lighting fixture?

A: All of 80W, 100W and 120W corn bulbs can be used in a enclosed fixture. Please kindly note that our 160~300W corn bulbs CAN NOT be used in enclosed fixture.

Q:Will it work with a dimmer?

A:No, it cannot work with a dimmer.

Q: How does this unit work? is the driver integrated into the bulb? you just wire line current to the mogul base, bypassing the existing mh ballast?

A:Connect directly into E39 base - just screw in Corn bulb is equipped with internal driver for single component installation.(Don't need ballast, just direct wire them)

Q: Can they be used in bad weather?

A: The working environment of the bulb is from -113°F to 113°F These bulbs(Except 160~300w) are great for outside installation as long as they are in the enclosed fixture. Please noted that they are not waterproof.

Q: Does the ballast need to be bypassed when installing these lights?

A:Yes, these are self ballasted. You need to remove the ballast(Or bypass) in your old fixtures and wired the lamp socket directly to the 120V main leads. This both lightened up the fixture as well as provided airspace for cooling.


Q: Why it’s called corn bulb?Any difference?

A: BECAUSE IT LOOKS LIKE A CORN. THE LIGHT IS VERY BRIGHT AND IT SPREADS EVENLY AROUND THE BULB.It's 360degree beam angle spread luminaries like corn.



Q: Does this have a fan for extra cooling?

A:Yes, our corn bulbs have a fan inside for better cooling effect.The fan brand is Taiwan Sunon.
