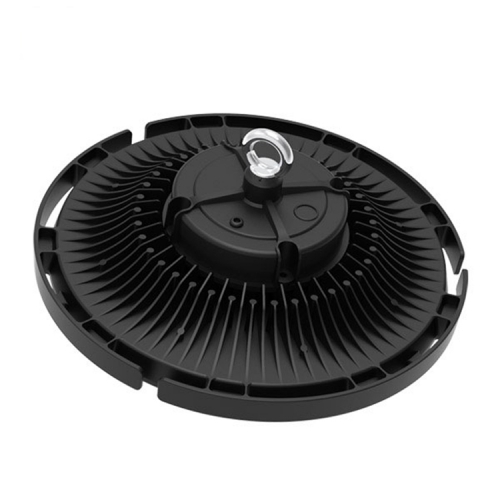

LED UFO High Bay Light

Item No.: NG-UFO
UL CUL DLC approved
100~277V 277~480V input voltage
120° Beam angle glass cover
0-10V Dimmable
Microwave sensor function
IP65 waterproof dust free
6K High Voltage Surge test approved
High Heat Resistance Die Casting Heat Sink
Description DLC Certification FAQ Overseas Warehouse
led high bay light
Pic Item No Input Voltage Microwave Dimmbale Remote Control PC Diffuser Beam Angle UL&CUL &DLC Color Materials Wattage Applications
led high bay light NG-UFO 100-277V X X X 120° Black Aluminum
Glass Cover
Auto Shop,
Industrial Area,
Exhibition Hall,
Storage facilities, etc.
led high bay light NG-IHB 100-277V X X 120° Black
PC Cover
led high bay light NG-UFOPL 100-277V X 120° Black Aluminum
PC Cover
led high bay light NG-UFOPR 100-480V X 120° Black Aluminum
PC Cover

led high bay light

Lumens Base Beam Angle(Degree) Electrical Data LED Type Color Temperature Color Rendering Index


 3 pin wires  120° Input Voltage
100-277V 50~60Hz
Power Factor(%)
SMD 3030 Chips WW 3000K
NW 4000K
DW 5000K
CW 5700K




 21000Lm  3 pin wires

 25000Lm  3 pin wires

 31200Lm  3 pin wires

 45000Lm  3 pin wires

led high bay light structure


NUOGUAN LED High Bay Light is an excellent choice for industrial and commercial spaces that require an efficient lighting solution. UL&DLC Listed. These LED high bay lights provide excellent efficacy and output to illuminate your space while lasting 3 times longer than HID fixtures.

The newest design high bay lights-Up and down lighting design provides basic downward lighting for tasks,Full screen promises the maximum luminous area of UFO bay light.NO flickering, NO humming, No spot, No black area.

Energy-Efficient Driver-This LED High Bay Light uses SMD 3030 chips, 150lm/w brightness and 80% energy savings, light delay <5%, CRI>80% delivery more realistic color for the objects.

1~10V DIMMING-Equip with the dimming capacity allows you to adjust the brightness over your space and save energy with the standard 1-10V dimmer.

120 Degree Large Beam angle -UFO High Bay Lights are perfect for Indoor and Outdoor use, such as Warehouses, Garage, Factories, Stadiums, Supermarkets, Logistics center, Exhibition hall and other places that may need lighting.

Durable & Long Lifespan-This LED high bay fixture is made of heavy-duty die-casted aluminum material, it is solid and durable, it has excellent corrosion resistance and heat dissipation effect, extending its lifespan up to 50,000 hours, fewer repairs or replacements, decreased maintenance requirements.

What you can get--5-year lifetime technical support

led high bay light wiring diagramdimmable led high bay light120° beam angle led high bay light


Have you ever had these puzzles? How many led lights to need to use? What kind of power? Don't worry - NUOGUAN will help you, only the length * width * height and illuminance requirements of the site need to be provided. We will provide you free NUOGUAN light layout service, to help you get more projects. Normally, in order to achieve the illumination of 40fc, we suggest that the hanging height of the 100W lamp is 10~14ft, 150W is 14~18ft, The distance we recommended between two lights=2*Height.

*The light effects may be affected by the real-time environment!

led high bay light dimensionsled high bay light easy installationled high bay light application
  led post top light led parking lot light led shop light led bulb light led temporary work led garage light
  LED Post Top Lights LED Parking Lot Light LED Shop Light
LED Corn Bulb Light
LED Temporary Work LED Garage Light

AC100-277V AC100-480V AC120V士10% AC100-480V AC100-277V AC100-277V
  Applications Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on IndoorUse,shop,warehouse,
workshop,garage,office, and so on
Indoor and Outdoor Use,
warehouse, parking lot, street, area, roadway, driveway, square, tennis court and so on
Indoor and Outdoor Use, Job site, construction site, tunnel, garage, workshop and so on IndoorUse,shop,warehouse,
workshop,garage,office, and so on
7800LM~19500LM 14000LM~44800LM 14000LM~16800LM 4332LM~39280LM 8400LM~21000LM 8400LM~21000LM
Dusk to Dawn Dusk to Dawn Super Bright Super Bright Super Bright Super Bright
DLC Certification

For more details please click the picture


Q: What is the beam angle?

A: The beam angle is 120°

Q: which dimmer is recomended ?

A: It is recommended that you use a 0-10V dimmer.

Q: Is the light fixture furnished with the safety cable?

A: Yes, UFO high bay light is equipped with a 5-foot safety rope.

Q: Are you high bay light can use microwave function?

A: Yes, It’s can made to Microwave function.

Q: One dimmer control multiple high bay lights?

A: In some case, one dimmer can control multiple high bay lights.It all depends on the dimmer you purchased.There's power restriction for dimmer. Please pay attention to the total maximum power the dimmer can withstand.For example,if the 0-10V dimmer is fully compatible with 480W max Dimmable LED,then it can control 2 pcs 240W led high bay light.

Q: Is 150W 480V ufo suitable for 3-phase 480V?

A: Yes.

Q:Can I have 3 lights use the same remote and 1 use a different remote?

A: Microwave remote control can control all lights within 15 meters. The RF dimming remote control can control all lights within a 50-meter unobstructed range.

Q: What is the difference between microwave induction and infrared induction?

A: The microwave senses the motion of the object within its sensing range, and it will make corresponding actions, such as automatically turning on the light when it senses the motion of the object etc.; Infrared sensing senses the temperature of the human body.

Q: Can a 480V UFO do microwave light sensing?

A: This version can't.But you could choose LED UFO Pro highbay version.
