LED UFO High Bay Light

Description DLC Certification FAQ Overseas Warehouse

Description

Item No.	Wattage	Input voltage	Light Source	Luminous Flux	CCT (k)	Light Effi.	LED Driver	Dimension
NG-UFOPR-150W UL DRIVER	150W	100~277V	209pcs SMD3030	22500Lm	Tunable 4500K 5000K 5700K	150LM/W	UL Driver	Φ320*169mm
NG-UFOPR 150W CCT&WATT Tunable	Tunable 80W 100W 150W	100~277V	380pcs SMD3030 190(3000K) 190(5000K)	22500Lm	Tunable 4500K 5000K 5700K	150LM/W	UL Driver	Φ320*169mm
NG-UFOPR-150W Microwave	150W	100~277V	209pcs SMD3030	22500Lm	Tunable 4500K 5000K 5700K	150LM/W	Sosen Driver	Φ320*169mm
NG-UFOPR-150WH WATT Tunable	Tunable 80W 100W 150W	277-480V	209pcs SMD3030	22500Lm	Tunable 4500K 5000K 5700K	150LM/W	Sosen Driver	Φ320*169mm
NG-UFOPR-150WH CCT&WATT Tunable	Tunable 80W 100W 150W	277-480V	380pcs SMD3030 190(3000K) 190(5000K)	22500Lm	Tunable 4500K 5000K 5700K	150LM/W	Sosen Driver	Φ320*169mm
NG-UFOPR-200W	200W	100~277V	266pcs SMD3030	30000Lm	Tunable 4500K 5000K 5700K	150LM/W	UL Driver	Φ320*169mm
NG-UFOPR-240W	240W	100~277V	304pcs SMD3030	36000Lm	Tunable 4500K 5000K 5700K	150LM/W	UL Driver	Φ380*169mm
NG-UFOPR-240W CCT&WATT Tunable	Tunable 150W 200W 240W	100~277V	608pcs SMD3030 304(3000K) 304(5000K)	36000Lm	Tunable 4500K 5000K 5700K	150LM/W	UL Driver	Φ380*169mm
NG-UFOPR-240W Microwave	240W	100~277V	304pcs SMD3030	36000Lm	Tunable 4500K 5000K 5700K	150LM/W	Sosen Driver	Φ380*169mm
NG-UFOPR-240WH WATT Tunable	Tunable 150W 200W 240W	277-480V	304pcs SMD3030	36000Lm	Tunable 4500K 5000K 5700K	150LM/W	Sosen Driver	Φ380*169mm
NG-UFOPR-240WH CCT&WATT Tunable	Tunable 150W 200W 240W	277-480V	608pcs SMD3030 304(3000K) 304(5000K)	36000Lm	Tunable 4500K 5000K 5700K	150LM/W	Sosen Driver	Φ380*169mm
NG-UFOPR-300W CCT&WATT Tunable	Tunable 180W 240W 300W	100~277V	720pcs SMD3030 360(3000K) 360(5000K)	45000Lm	Tunable 4500K 5000K 5700K	150LM/W	UL Driver	Φ380*169mm
NG-UFOPR-300WH WATT Tunable	Tunable 180W 240W 300W	277-480V	360pcs SMD3030	45000Lm	Tunable 4500K 5000K 5700K	150LM/W	Sosen Driver	Φ380*169mm


	LED Post Top Lights	LED Parking Lot Light	LED S hop Light	LED Corn Bulb Light	LED Temporary Work	LED Wall Light
Voltage	AC100-277V	AC100-480V	AC120V士10%	AC100-480V	AC100-277V	AC100-277V
Applications	Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on	Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on	IndoorUse,shop,warehouse, workshop,garage,office, and so on	Indoor and Outdoor Use, warehouse, parking lot, street, area, roadway, driveway, square, tennis court and so on	Indoor and Outdoor Use, Job site, construction site, tunnel, garage, workshop and so on	IndoorUse,warehouse, workshop,garage, and so on
Lumens	7800LM~19500LM	14000LM~44800LM	14000LM~16800LM	4332LM~39280LM	8400LM~21000LM	7800LM~19500LM
Feature	Dusk to Dawn	Dusk to Dawn	Super Bright	Super Bright	Super Bright	Super Bright

DLC Certification

For more details please click the picture

FAQ

Q: I bought the AC100-277v. it does not appear to be dimmable. Does this model not have a dimming function?

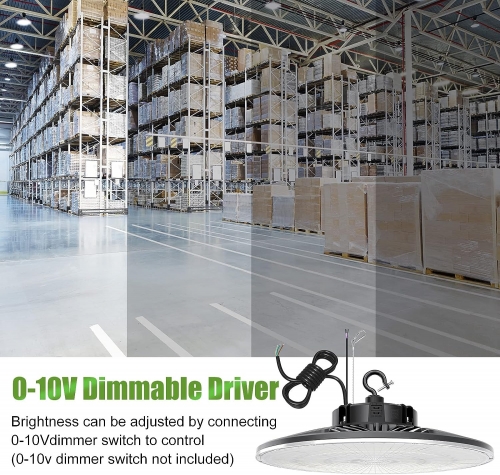

A: Yes, this model have a dimming function. The dimmable cable of ufo led high bay light is under the driver, you need pull it out and then connect dimmer switch.

Q: Is there glare? flicker?

A: no glare, no flicker.

Q: Can the light be used to grow my plants?

A: This light is not a full spectrum.You could buy led grow light specially for plants.

Q: Does the light save the last dimmer setting that was used after I shut off and turn back on?

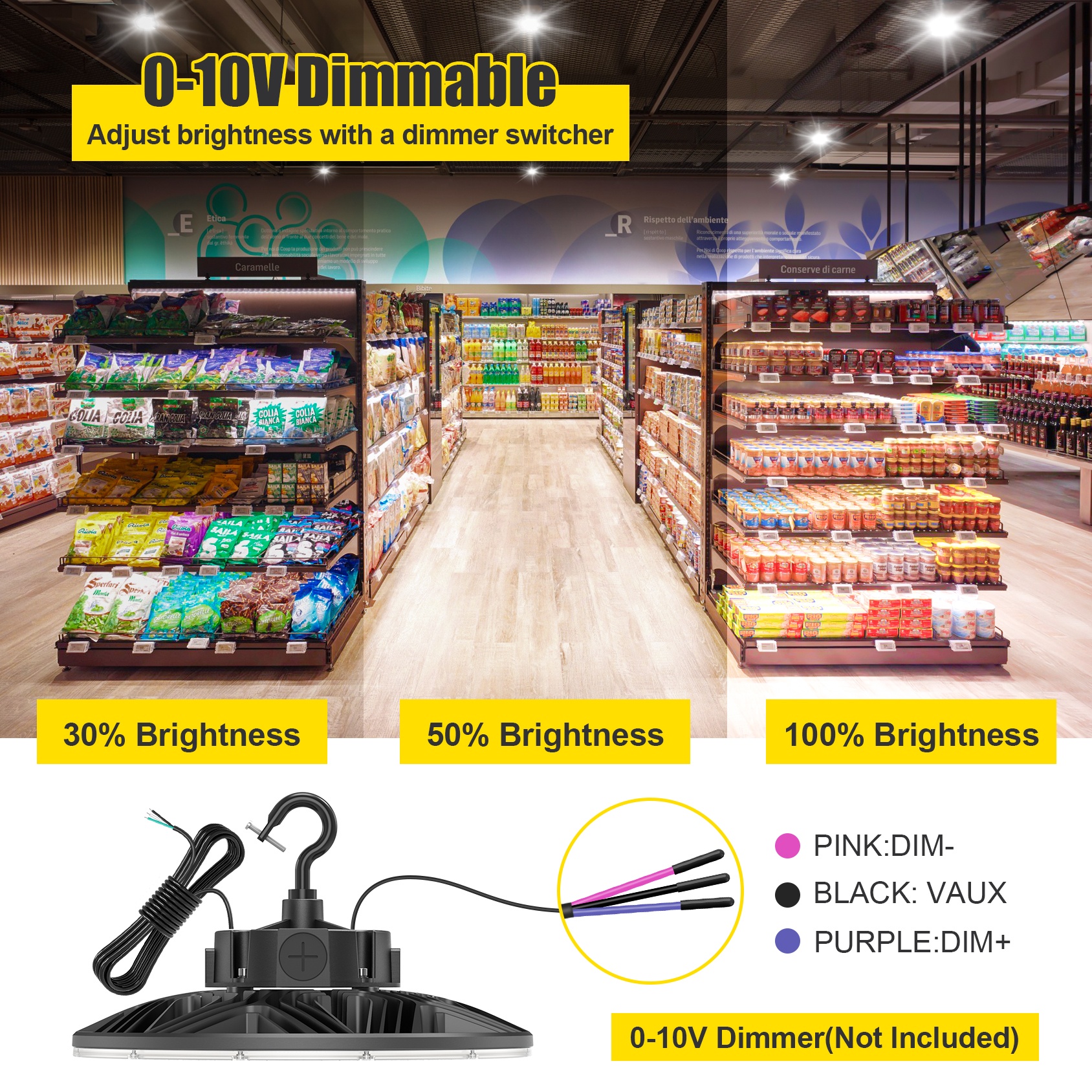

A: A 0-10V dimmer (used with 0-10V dimmable model) should save last setting. You can control dimming with your existing switch and avoid new wiring in your walls.

Q: How many amps? And what gauge is the wire?

A: UFO high bay light, its amps is 1A, and the ware gauge is 18 AWG. Thanks

Q: Can each light be controlled by remote individually? I installed 2 and want more but the remote controls both no matter where I point it.

A: No. The remote controls all lights at the same time - even across different sizes and brightness strengths.

Q: Does it have a motion sensor?

A: Yes,it has motion sensor,but it needs to be sent from China.

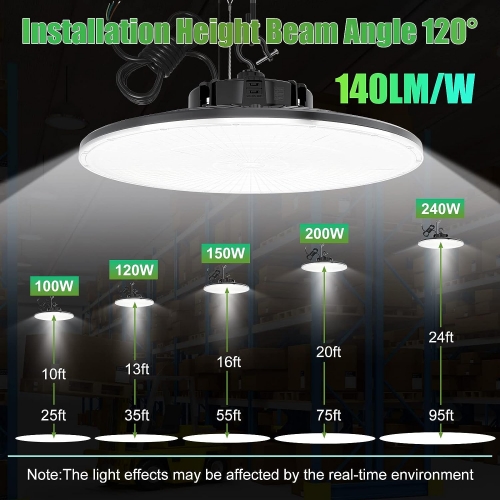

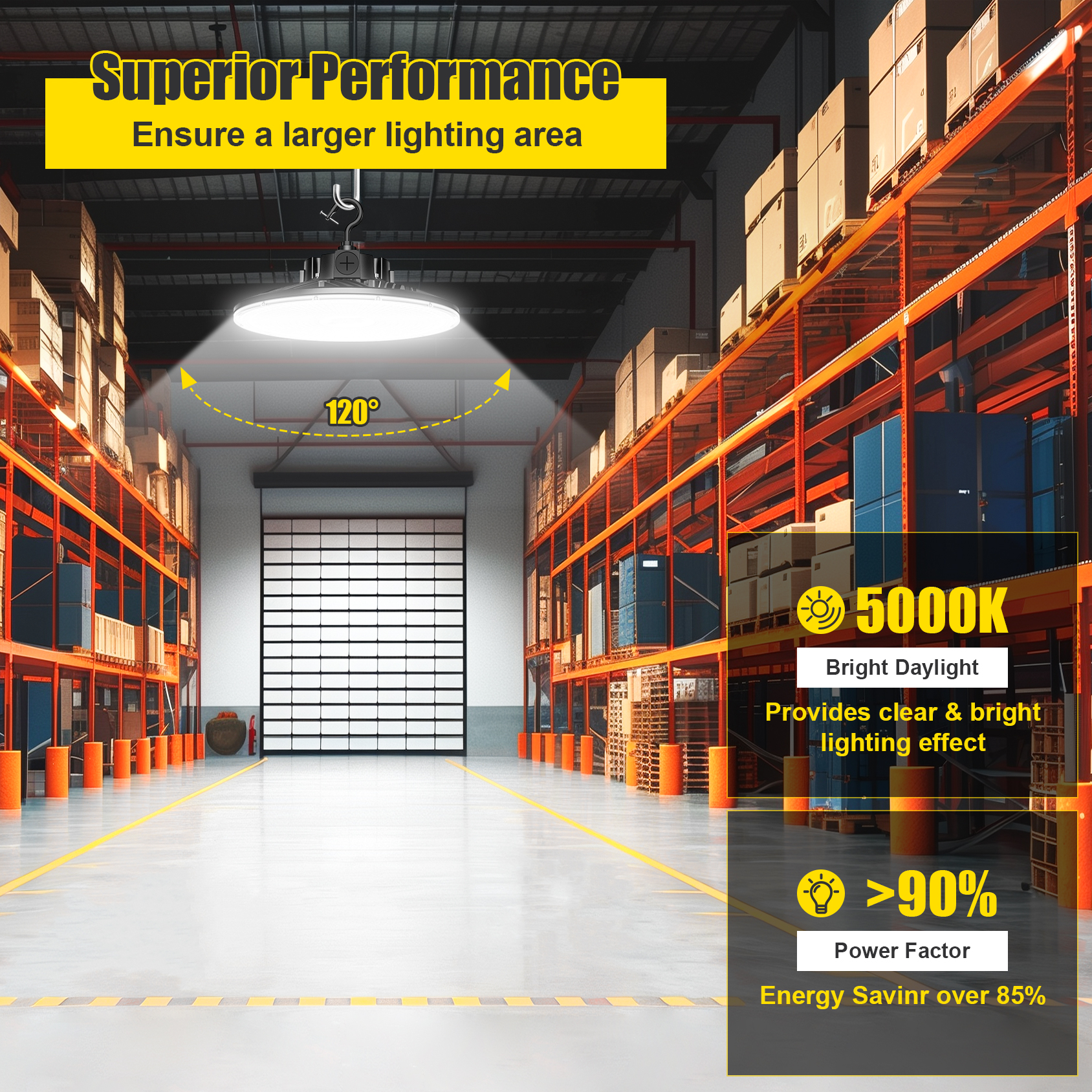

Q: In addition to 120 degrees, UFO pro can also do 90 degrees?

A: Only 120 degree is available.

Overseas Warehouse

US&Canada Warehouse Fast& Convenient Delivery

Located in CA,OH.Where we ship the lights depends on what products you need and our inventory conditions. After got inquiry we will check which warehouse ship the light to you.
