Home LED Shoebox Area Light
LED Shoebox Area Light LED Shoebox Area Light LED Shoebox Area Light LED Shoebox Area Light LED Shoebox Area Light LED Shoebox Area Light LED Shoebox Area Light

LED Shoebox Area Light

Item No.: NG-PL
· Available in 100 ~ 350W power range
· 50,000 hrs lifespan & 5 yrs warranty

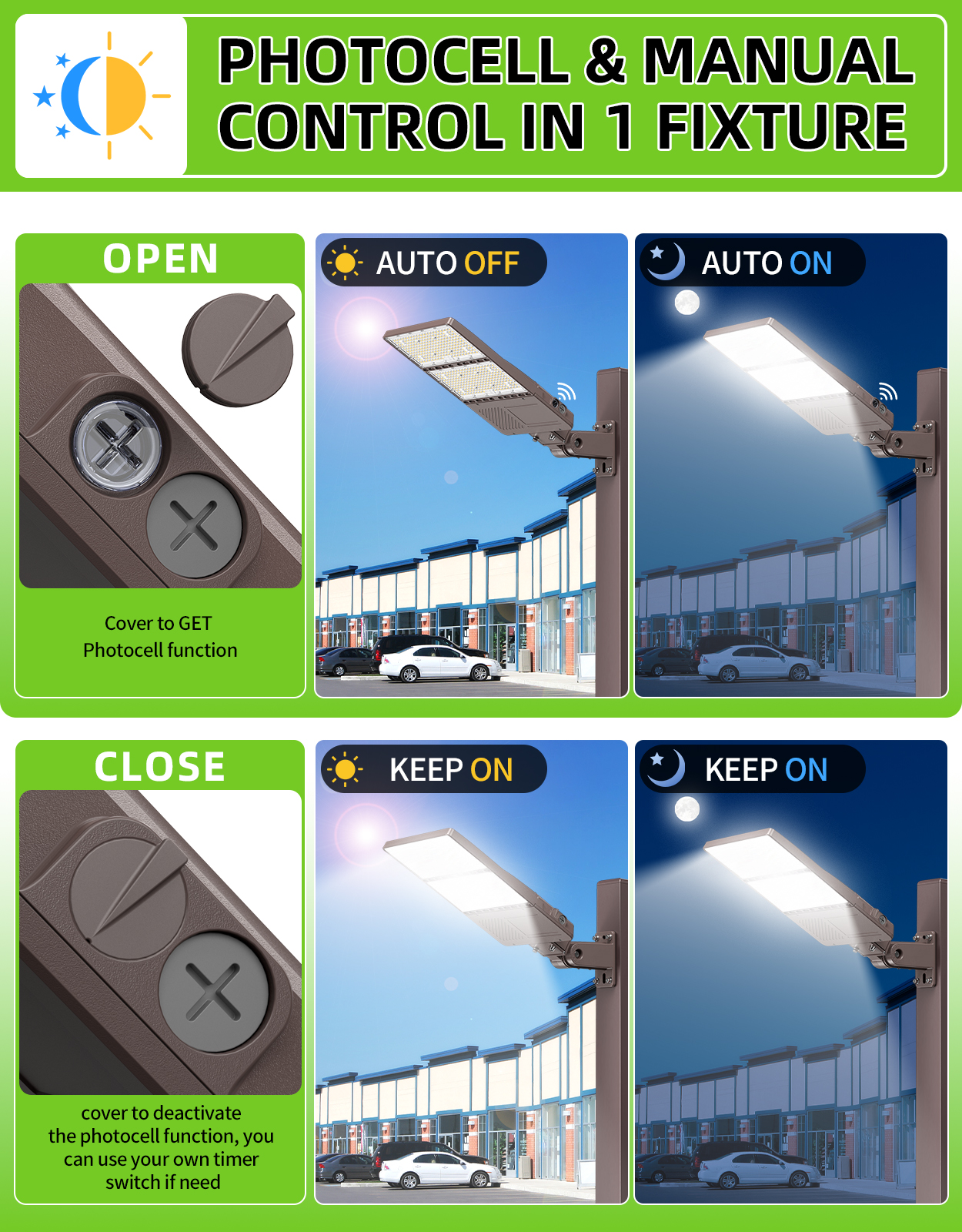

· Built-in dusk-to-dawn photocell sensor
· Type II, type III and type V distributions

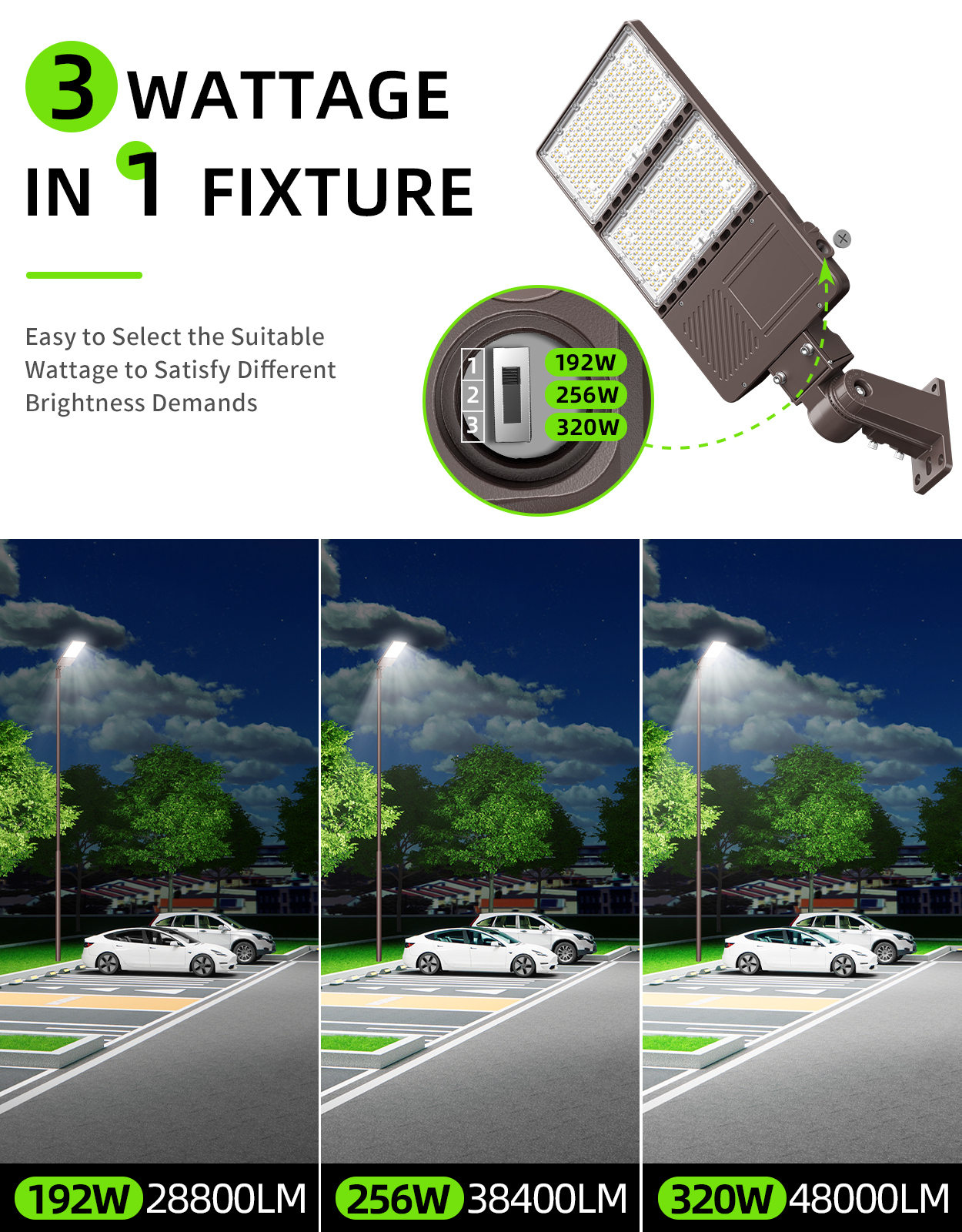

· Adjustable CCT and power

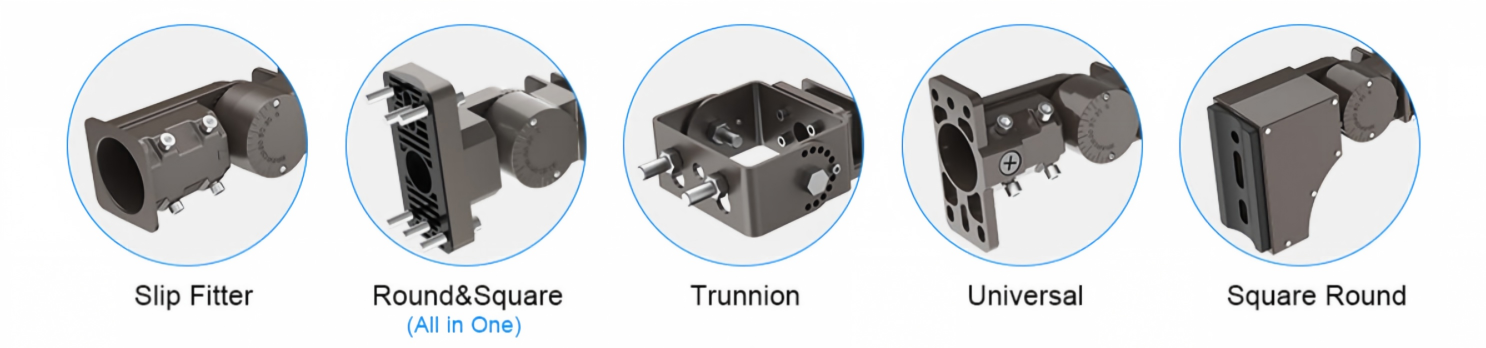

· 4 types brackets: slip fitter, round & square, trunnion, u
Quantity
-
+
Login to Order Request Quote
Description Overseas Warehouse FAQ DLC Certification
Description
Item No. Wattage Input voltage Light Source Luminous Flux Light Effi. LED Driver Dimension Photocell
NG-PL-100W 100W 100~277V 294pcs SMD2835 21000Lm 140LM/W UL Driver 558*305mm Built-in photocell
NG-PL-100WH 100W 277~480V 294pcs SMD2835 21000Lm 140LM/W UL Driver 558*305mm Built-in photocell
NG-PL-100W
CCT&WATT Tunable		 Tunable
60W
80W
100W		 100~277V 400pcs SMD3030
200(4500K)
200(5700K)		 21000Lm 140LM/W UL Driver 558*305mm Built-in photocell
NG-PL-150W 150W 100~277V 294pcs SMD2835 21000Lm 140LM/W UL Driver 558*305mm Built-in photocell
NG-PL-150WH 150W 277~480V 294pcs SMD2835 21000Lm 140LM/W UL Driver 558*305mm Built-in photocell
NG-PL-150W
CCT&WATT Tunable		 Tunable
90W
120W
150W		 100~277V 400pcs SMD3030
200(4500K)
200(5700K)		 21000Lm 140LM/W UL Driver 558*305mm Built-in photocell
NG-PL-200W 200W 100~277V 294pcs SMD3030 28000Lm 140LM/W UL Driver 558*305mm Built-in photocell
NG-PL-200WH 200W 277~480V 294pcs SMD3030 28000Lm 140LM/W UL Driver 558*305mm Built-in photocell
NG-PL-200W
CCT&WATT Tunable		 Tunable
120W
160W
200W		 100~277V 416pcs SMD3030
208(4500K)
208(5700K)		 28000Lm 140LM/W UL Driver 558*305mm Built-in photocell
NG-PL-240W 240W 100~277V 432pcs SMD3030 33600Lm 140LM/W UL Driver 730*305mm Built-in photocell
NG-PL-240WH 240W 277~480V 432pcs SMD3030 33600Lm 140LM/W UL Driver 730*305mm Built-in photocell
NG-PL-240W
CCT&WATT Tunable		 Tunable
144W
192W
240W		 100~277V 608pcs SMD3030
304(4500K)
304(5700K)		 33600Lm 140LM/W UL Driver 730*305mm Built-in photocell
NG-PL-320W 320W 100~277V 432pcs SMD3030 44800Lm 140LM/W UL Driver 730*305mm Built-in photocell
NG-PL-320WH 320W 277~480V 432pcs SMD3030 44800Lm 140LM/W UL Driver 730*305mm Built-in photocell
NG-PL-320W
CCT&WATT Tunable		 Tunable
192W
256W
320W		 100~277V 608pcs SMD3030
304(4500K)
304(5700K)		 44800Lm 140LM/W UL Driver 730*305mm Built-in photocell

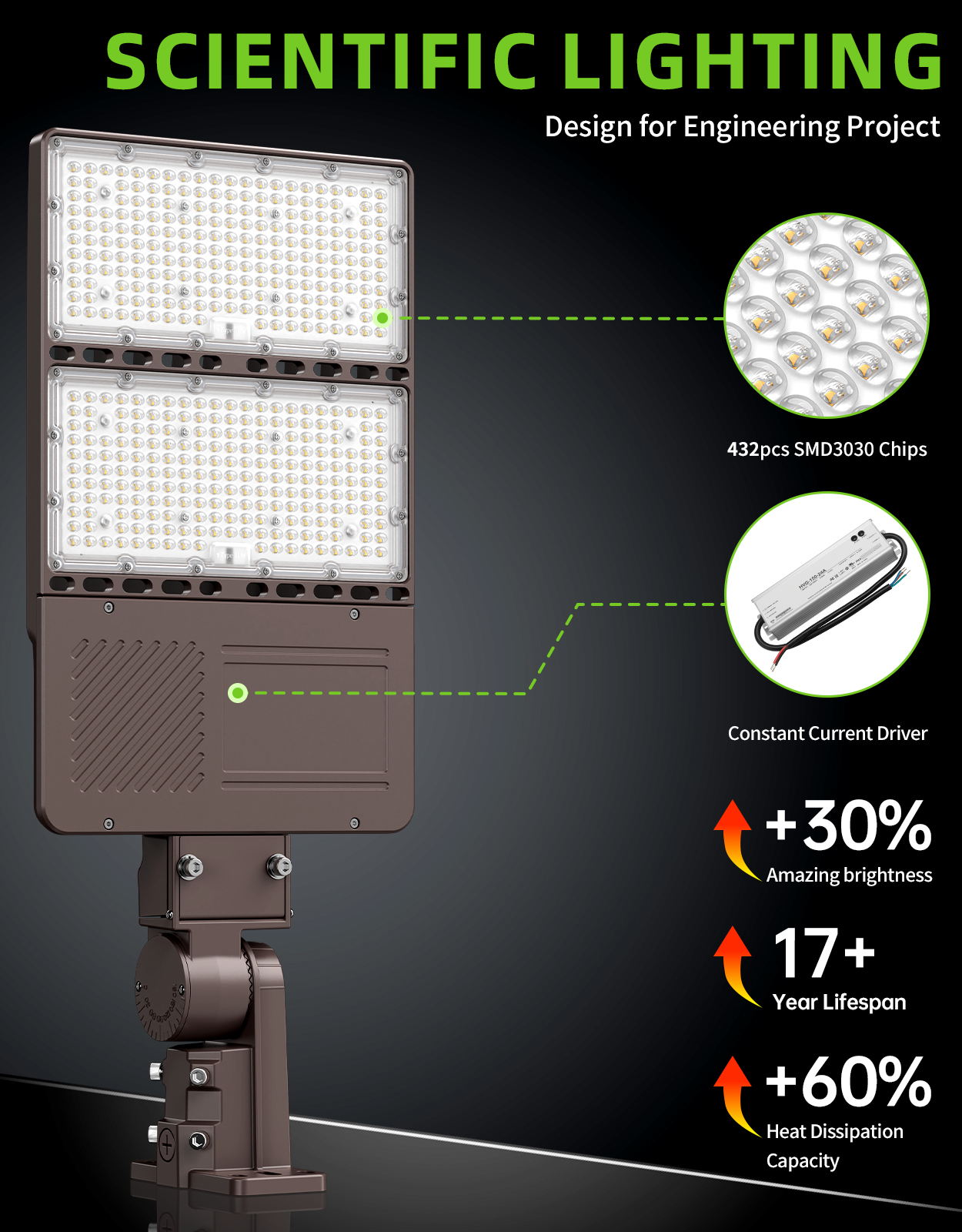

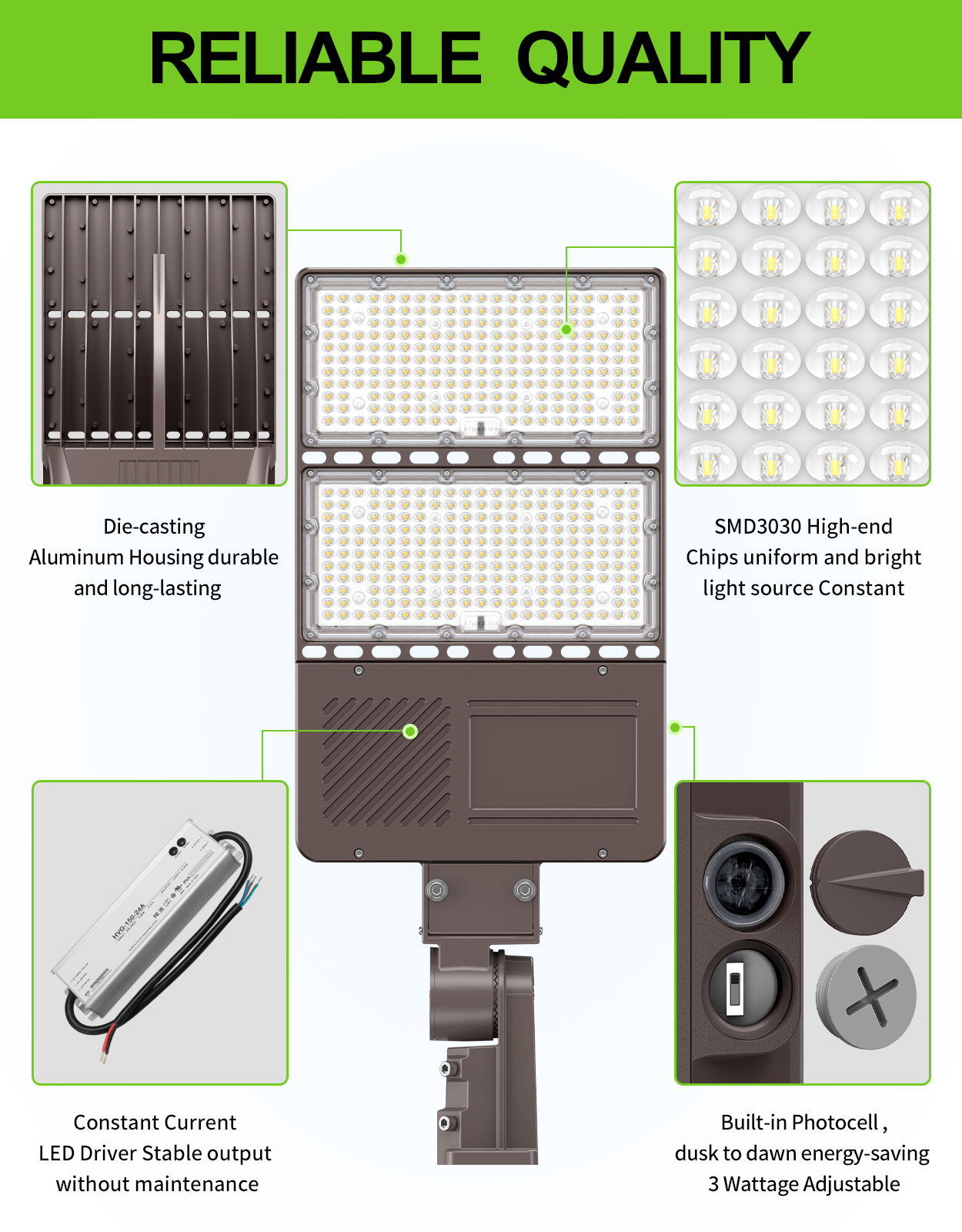

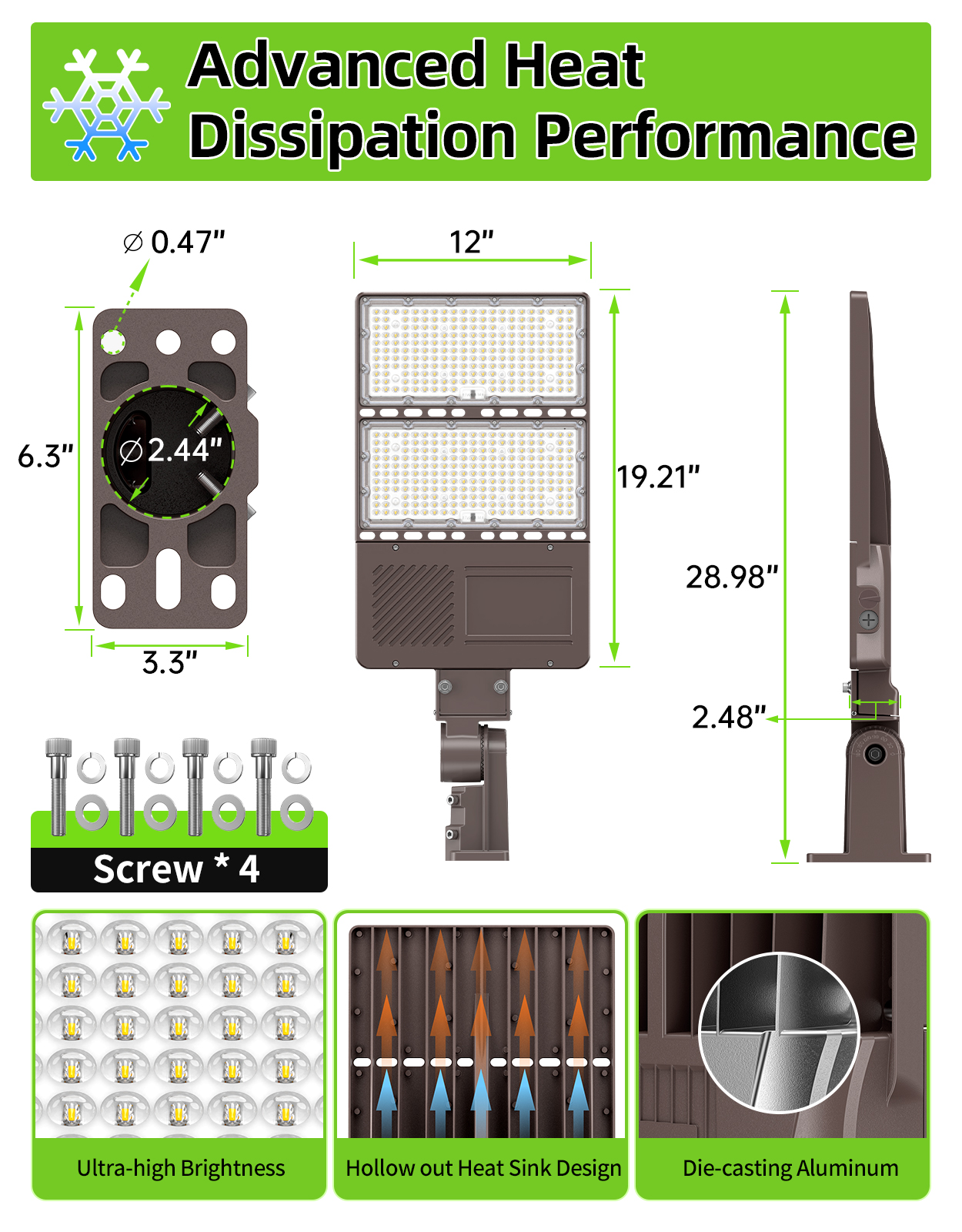

NGTLIGHT parking lot led light is made of pure aluminum, and the outer casing is compact. The use of aluminum material provides strong protection and durability for the heat while ensuring heat dissipation. The radiator adopts a hollow design To increase the heat dissipation surface, accelerate the air flow, take away more heat, protect the chip, and provide you with 50,000+ hours of long-lasting lighting service.

Perfect for parking lots, roadways, car dealerships, campuses, parks, and as a replacement for street lights and vapor lamps—this LED shoebox area light shines brightly when reliability and performance are critical.

Built-in for All Weather Conditions- Perfect for outdoor lighting



  • Excellent IP65 waterproof & DUST RESISTANT performance and shatterproof, suitable for indoor dry and outdoor damp applications.
  • 10KV Surge Protection to prevent damage caused by lightning surges.
  • Working Temperature: -31~122 °F.


Outdoor LED Parking Lot Pole Lights Commercial

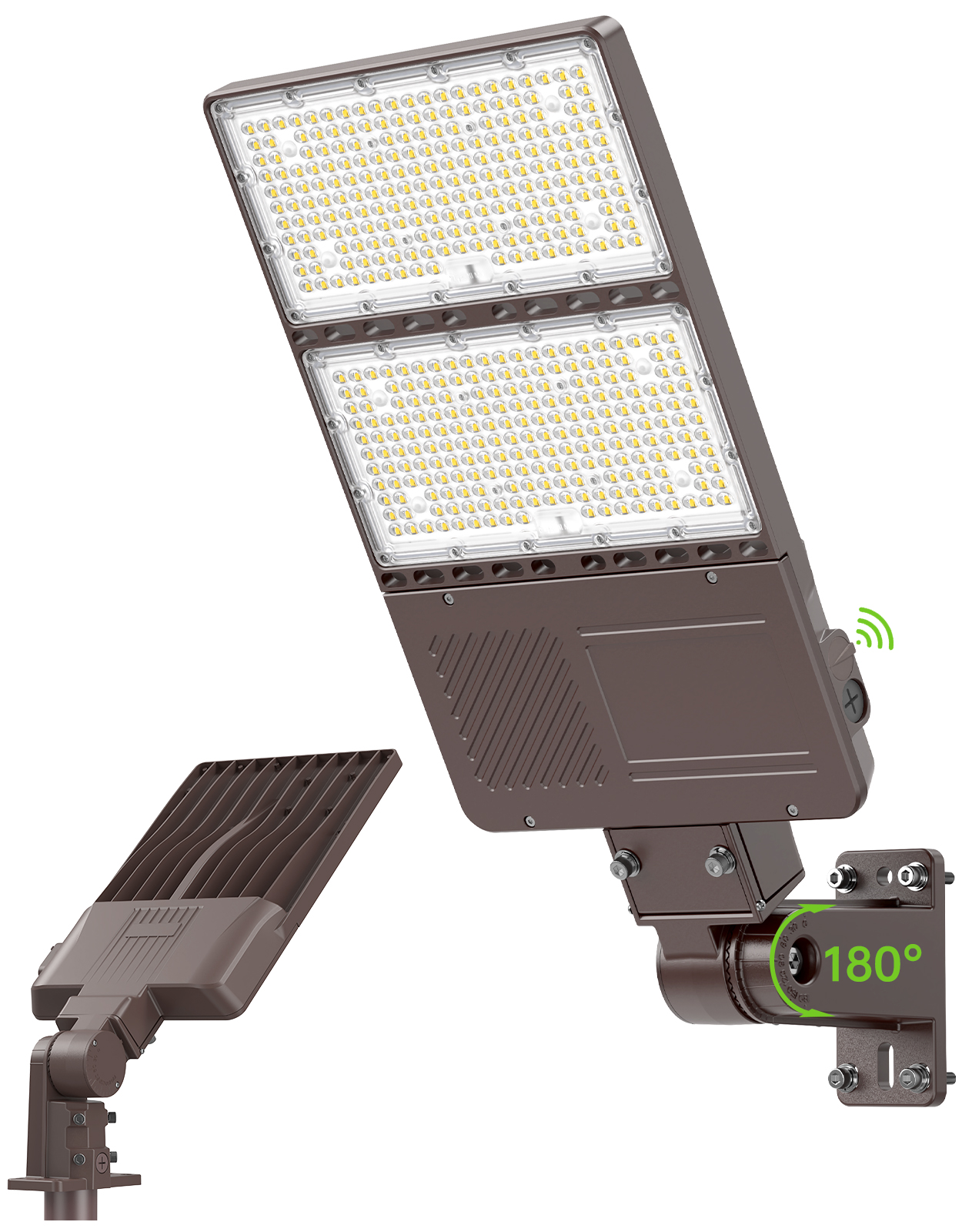

  • Easy to install the light on the pole with Slip Fitter Mounting, the SF bracket is 180 degrees adjustable.
  • Super bright shoebox led pole lighting effects to replace traditional MH/HPS/HID bulb, cut down your electricity consumption!

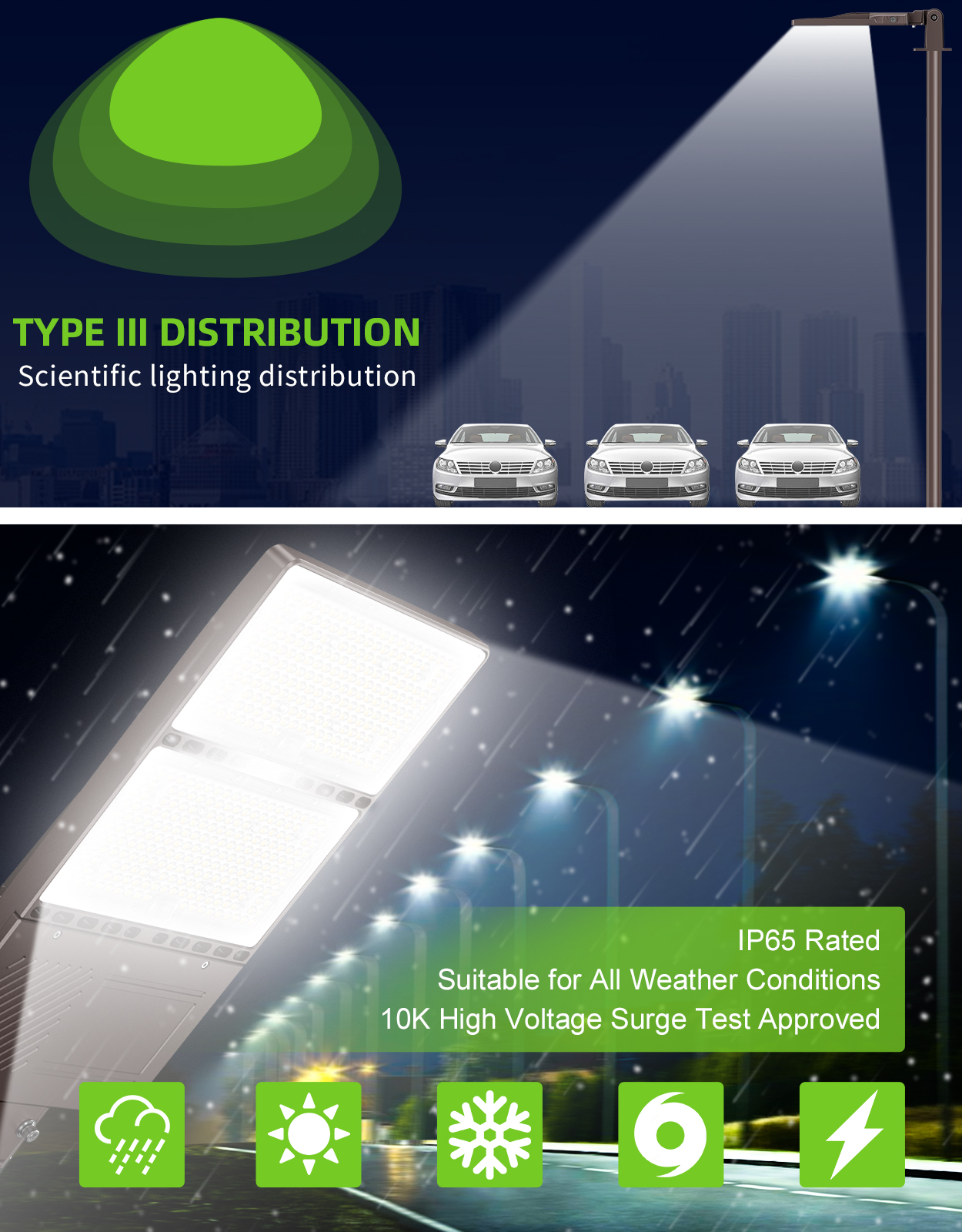

  • TYPE III Light Distribution-Best for outdoor street lighting patterns, cover larger areas.



Easy Flexible Installation with Arm Mount or Slip Fit Mount

With an adjustable Arm mount, the pole mounted led shoebox light fixture can be angled up or down from –30~+30 degree. Ideal for basketball court, tennis court, stadium, parking lot, roadways and general illumination of large areas.




Parking Lot LED Area Lights led garden light led shoebox light led retrofit kits led wall pack light led flood light
  LED Post Top Lights LED Parking Lot Light LED Retrofit Kits
LED Wall Pack Light
 		 LED Flood Light LED Post Top Light

 Voltage

 AC100-277V AC100-480V AC100-480V AC100-277V AC100-277V AC100-277V
  Applications Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on utdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, Yard, Barn, Street, Area, Pathway, Patio and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on

 Lumens
 		 7800LM~19500LM 14000LM~44800LM 14000LM~42000LM 8400LM~16800LM 14000LM~42000LM 7800LM~19500LM

Feature
 		 Dusk to Dawn Dusk to Dawn Super Bright Dusk to Dawn Super Bright Dusk to Dawn
Overseas Warehouse
led parking lot light
US&Canada Warehouse Fast& Convenient Delivery Located in CA,OH.Where we ship the lights depends on what products you need and our inventory conditions. After got inquiry we will check which warehouse ship the light to you.

led parking lot light
FAQ
FAQ：
Q: Does it come with Pole ,what size how many feet ?
A: No it’s not come with pole, it’s have 3 kinds of bracket for option. All in one, slip fitter, trunnion.The slip fitter mount diameter of the hole is around 2.6 inch (66 mm).

Q: Is it Solar?
A:No,it is AC input voltage LED Lights.

Q: How does this light hold up in snowy/icy weather?
A: This led parking lot lighting is IP65 waterproof rating and the working temperature is -45~45℃.

Q: If this shoe box is dimmable?
A: The led shoebox area light is not dimmable.
While it’s have photocell to control it dusk to dawn function.

Q: What is the light distribution on this led street fixture?
A: The light distribution is Type III, TYPE II,TYPE V, for others need longer time to prepare materials.

Q: Can it make 347V or 480V high voltage input?
No, it’s can’t make high voltage due to space restrictions of driver part.

Q: What certification this Shoebox have?
This led post top light is UL cUL certified, and it’s also DLC approved, it’s ok for you to apply for rebate. And we provide 5 years warranty. Anything wrong during the warranty period, we’ll solve it for you.

DLC Certification
For more details please click the picture
