Item No.	Wattage	CCT (k)	Input voltage	Luminous Flux	Light Effi.	LED Driver	Dimension	Photocell
NG-NPL-150W CCT&WATT Tunable	Tunable 100W 120W 150W	Tunable 3000K  4000K  5000K	120~277V	21000Lm	140LM/W	UL Driver	515*228mm	Built-in photocell
NG-NPL-150WH CCT&WATT Tunable	Tunable 100W 120W 150W		277~480V	21000Lm			515*228mm
NG-NPL-240W CCT&WATT Tunable	Tunable 150W 200W 240W		120~277V	33600Lm			584*310mm
NG-NPL-240WH CCT&WATT Tunable	Tunable 150W 200W 240W		277~480V	33600Lm			584*310mm
NG-NPL-320W CCT&WATT Tunable	Tunable 200W 240W 320W		120~277V	44800Lm			584*310mm
NG-NPL-320WH CCT&WATT Tunable	Tunable 200W 240W 320W		277~480V	44800Lm			584*310mm
NG-NPL-360W CCT&WATT Tunable	Tunable 220W 290W 360W		120~277V	49000Lm			584*310mm
NG-NPL-360W CCT&WATT Tunable	Tunable 220W 290W 360W		277~480V	49000Lm			584*310mm



★ High transmittance protective lens
★ ETL, cETL, DLC, CE approved
★ Type ll, Type lll, Type V distributions
★ Photocell auto switch to regular
★ IP65 dust free and waterproof

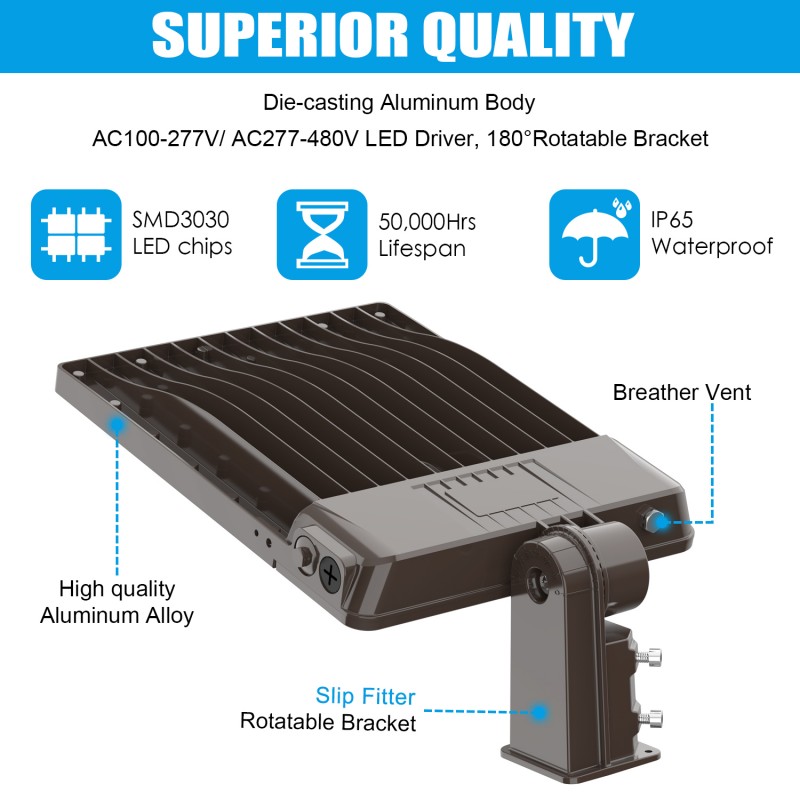

★ Die-casting housing anti-corrosion
★ 6K High voltage surge test approved

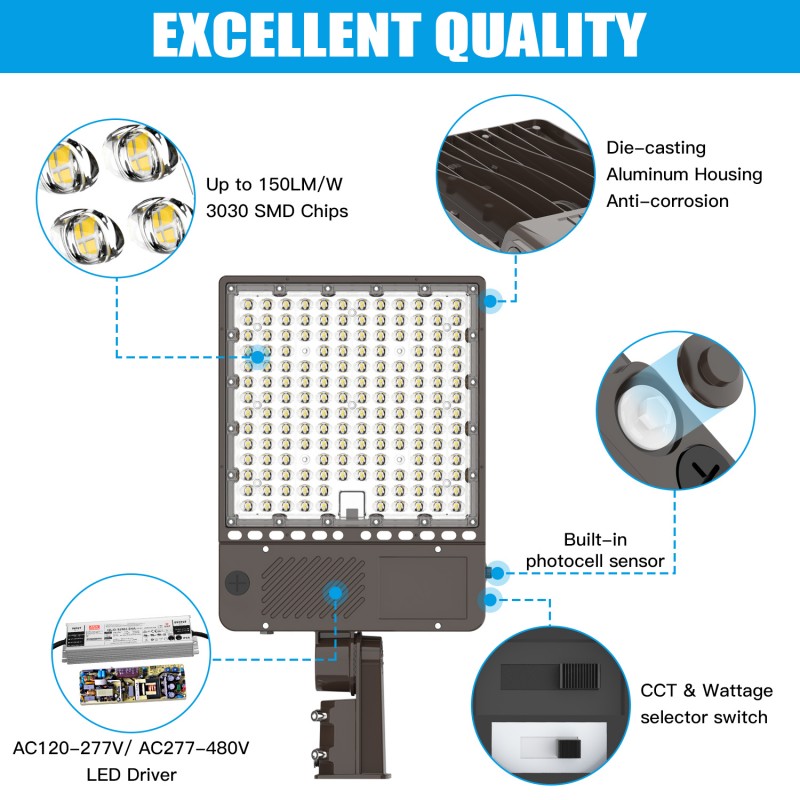

★ SMD3030 150Lm/W LED chips
★ 50,000hrs lifespan
★ Ambient operating temperature -40℃ to 45℃
★ Slip fitter, all in one, square round, U-bracket,universal pole bracket
★ Replace 400~2000W metal halide/HPS
★ No magnetic disturbance driver design
★ Microwave sensor kits Optiona


	LED Post Top Lights	LED Parking Lot Light	LED Retrofit Kits	LED Wall Pack Light	LED Flood Light	LED Post Top Light
Voltage	AC100-277V	AC100-480V	AC100-480V	AC100-277V	AC100-277V	AC100-277V
Applications	Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on	Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on	utdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on	Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on	Outdoor use, Yard, Barn, Street, Area, Pathway, Patio and so on	Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on
Lumens	7800LM~19500LM	14000LM~44800LM	14000LM~42000LM	8400LM~16800LM	14000LM~42000LM	7800LM~19500LM
Feature	Dusk to Dawn	Dusk to Dawn	Super Bright	Dusk to Dawn	Super Bright	Dusk to Dawn

FAQ：
Q: Does it come with Pole ,what size how many feet ?
A: No it’s not come with pole, it’s have 3 kinds of bracket for option. All in one, slip fitter, trunnion.The slip fitter mount diameter of the hole is around 2.6 inch (66 mm).

Q: Is it Solar?
A:No,it is AC input voltage LED Lights.

Q: How does this light hold up in snowy/icy weather?
A: This led parking lot lighting is IP65 waterproof rating and the working temperature is -45~45℃.

Q: If this shoe box is dimmable?
A: The led shoebox area light is not dimmable.
While it’s have photocell to control it dusk to dawn function.

Q: What is the light distribution on this led street fixture?
A: The light distribution is Type III, TYPE II,TYPE V, for others need longer time to prepare materials.

Q: Can it make 347V or 480V high voltage input?
No, it’s can’t make high voltage due to space restrictions of driver part.

Q: What certification this Shoebox have?
This led post top light is UL cUL certified, and it’s also DLC approved, it’s ok for you to apply for rebate. And we provide 5 years warranty. Anything wrong during the warranty period, we’ll solve it for you.
