PERFORMANCE           DATA

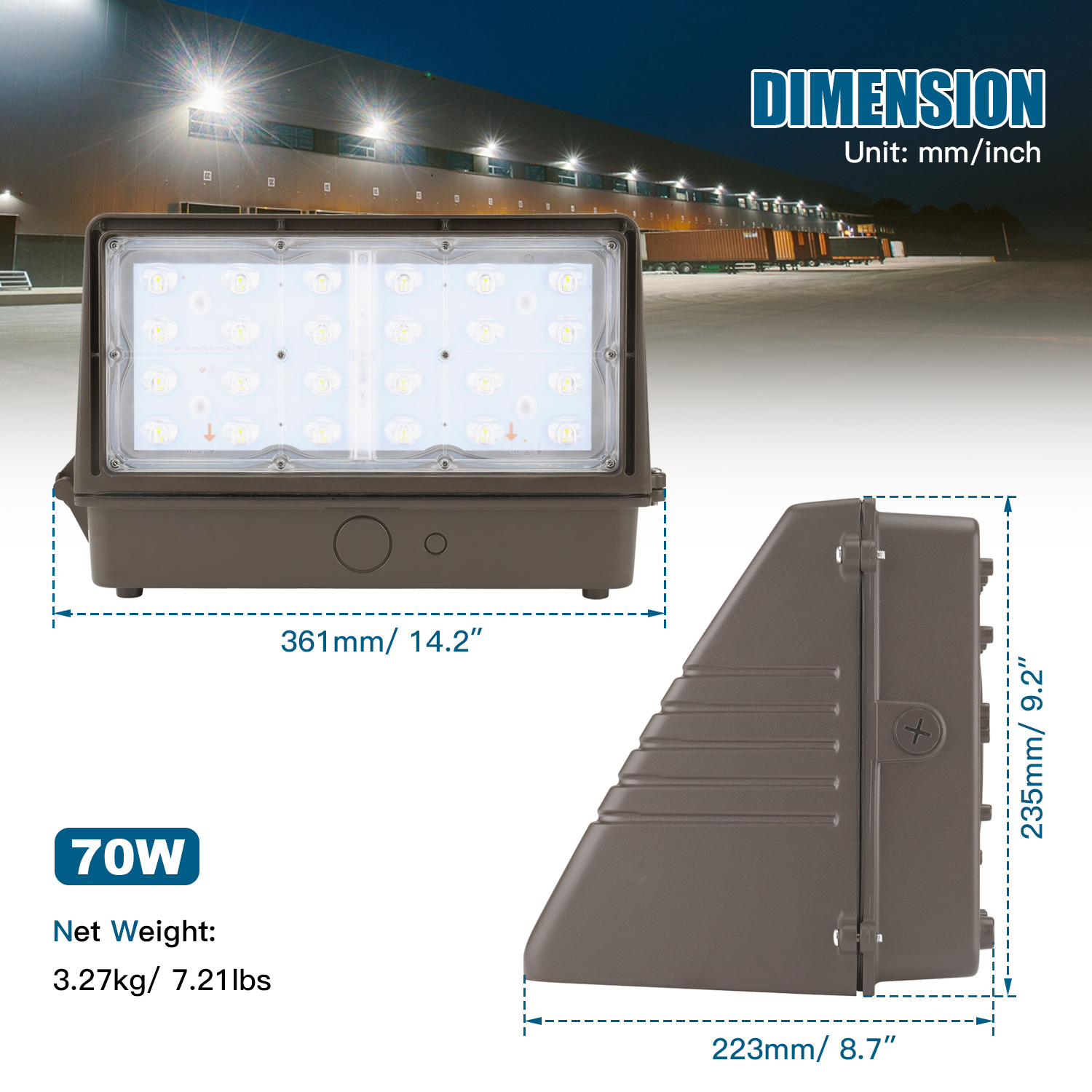

70W
SWTCH SETTNG	SYSTEM WATTS	CRI	3000K		4000K		5000K
			LUMENS	LPW	LUMENS	LPW	LUMENS	LPW
100%	70W	70	9800Im	140lm/W	11000Im	157Im/W	10200Im	146lm/W
80%	56W	70	8200Im	146lm/W	9100Im	163Im/W	8700Im	155Im/W
60%	42W	70	6400Im	152Im/W	7000Im	167Im/W	6800Im	162Im/W
40%	28W	70	4400Im	157Im/W	4800Im	171lm/W	4700Im	168Im/W

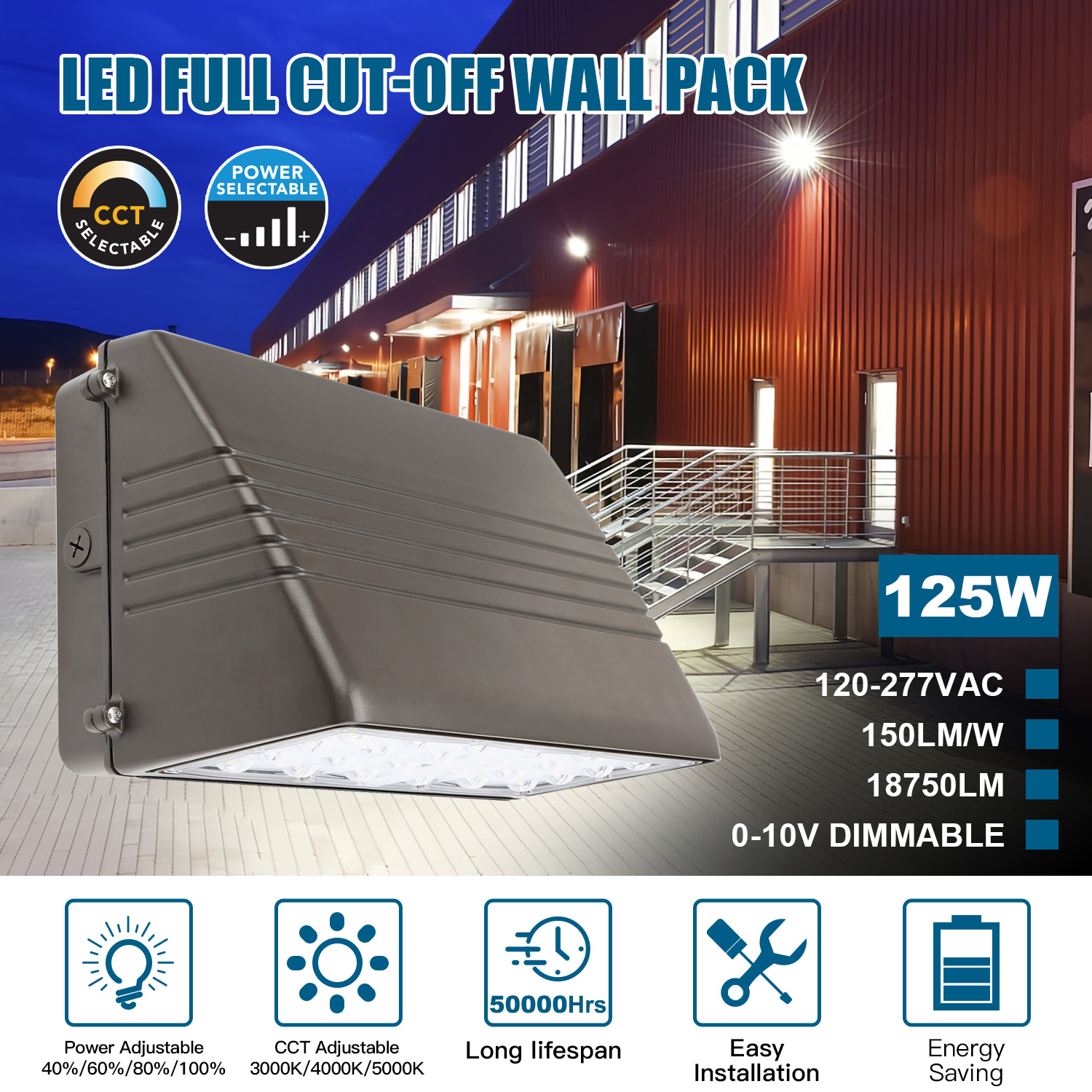

125W
SWTCH SETTNG	SYSTEM WATTS	CRI	3000K		4000K		5000K
			LUMENS	LPW	LUMEN S	LPW	LUMENS	LPW
100%	125W	70	17100Im	137Im/W	19000Im	152Im/W	18000Im	144Im/W
80%	100w	70	14200Im	142Im/W	15700Im	157Im/W	15000Im	150Im/W
60%	75W	70	11000Im	147Im/W	12100Im	161m/W	11700Im	156lm/W
40%	50W	70	7600im	152Im/W	8200Im	164Im/W	8100Im	162Im/W

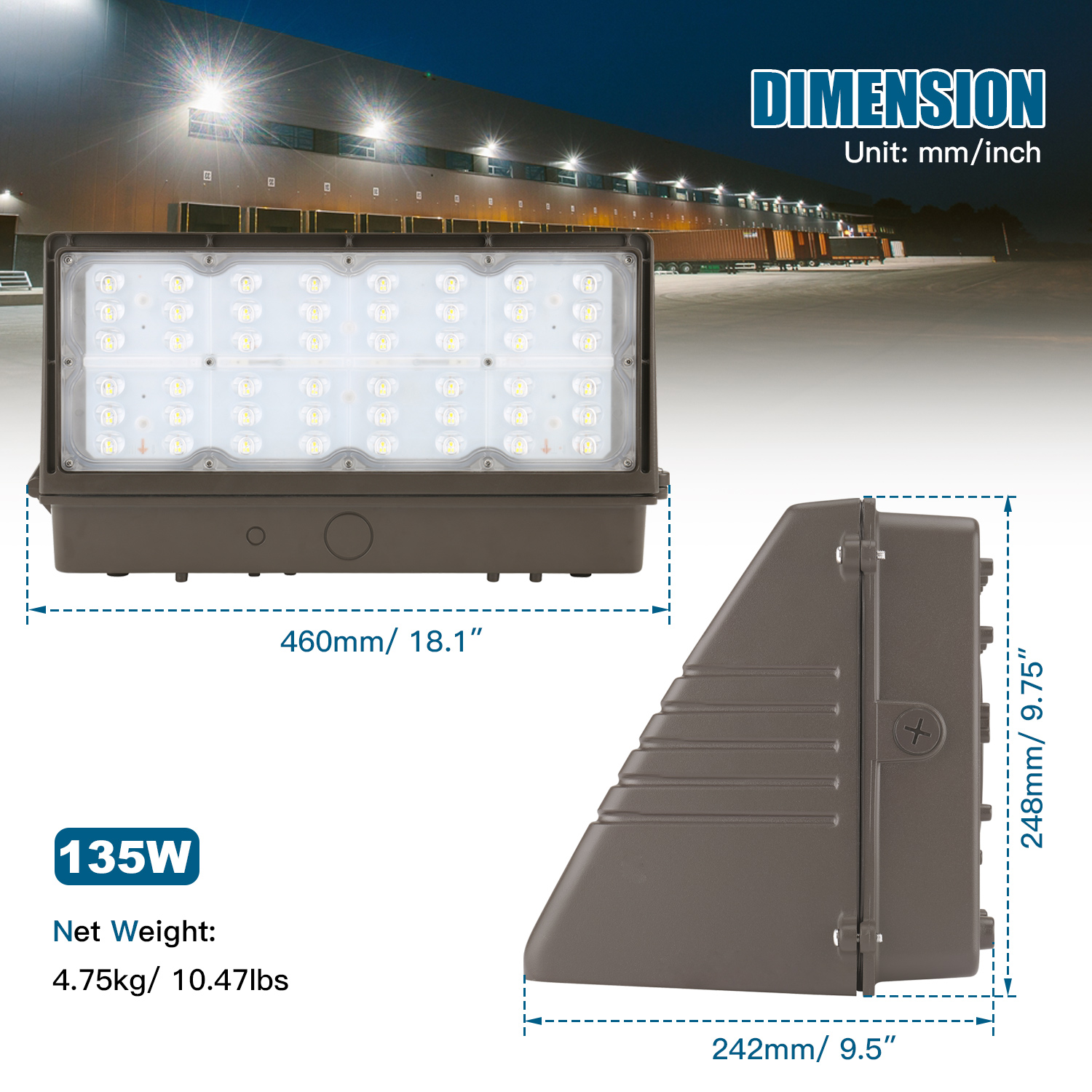

135W
SWTCH SETTING	SYSTEM WATTS	CRI	3000K		4000K		5000K
			LUMENS	LPW	LUMEN S	LPW	LUMENS	LPW
100%	135W	70	18000Im	133Im/W	20000I m	148Im/W	19000Im	141lm/W
80%	108W	70	15000m	139Im/W	16400 m	152Im/W	15600Im	144Im/W
60%	81W	70	11600Im	143Im/W	12600Im	156lm/W	12000Im	148Im/W
40%	54W	70	8000Im	148/m/W	8600Im	159lm/W	8200Im	152Im/W

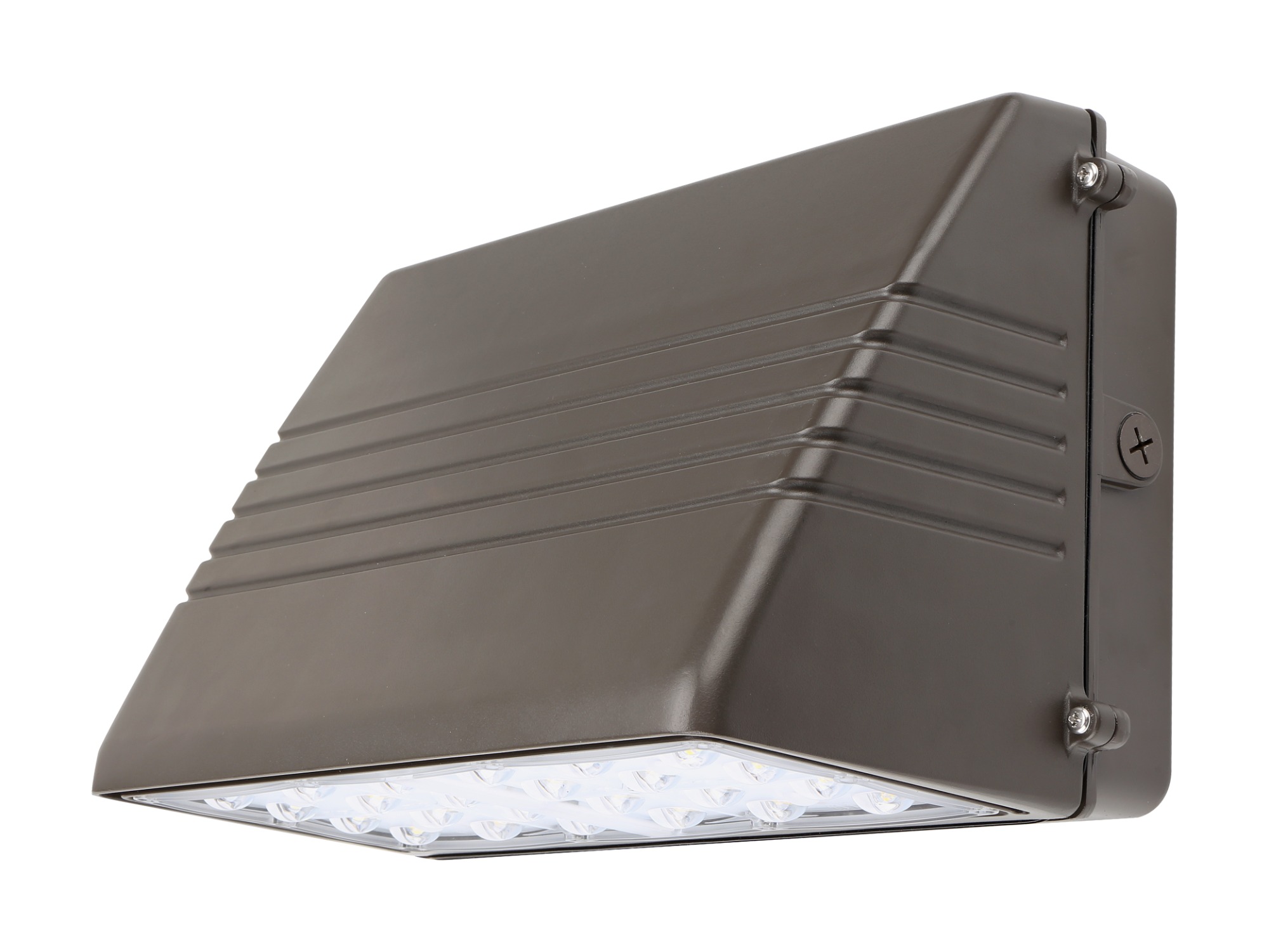

Construction

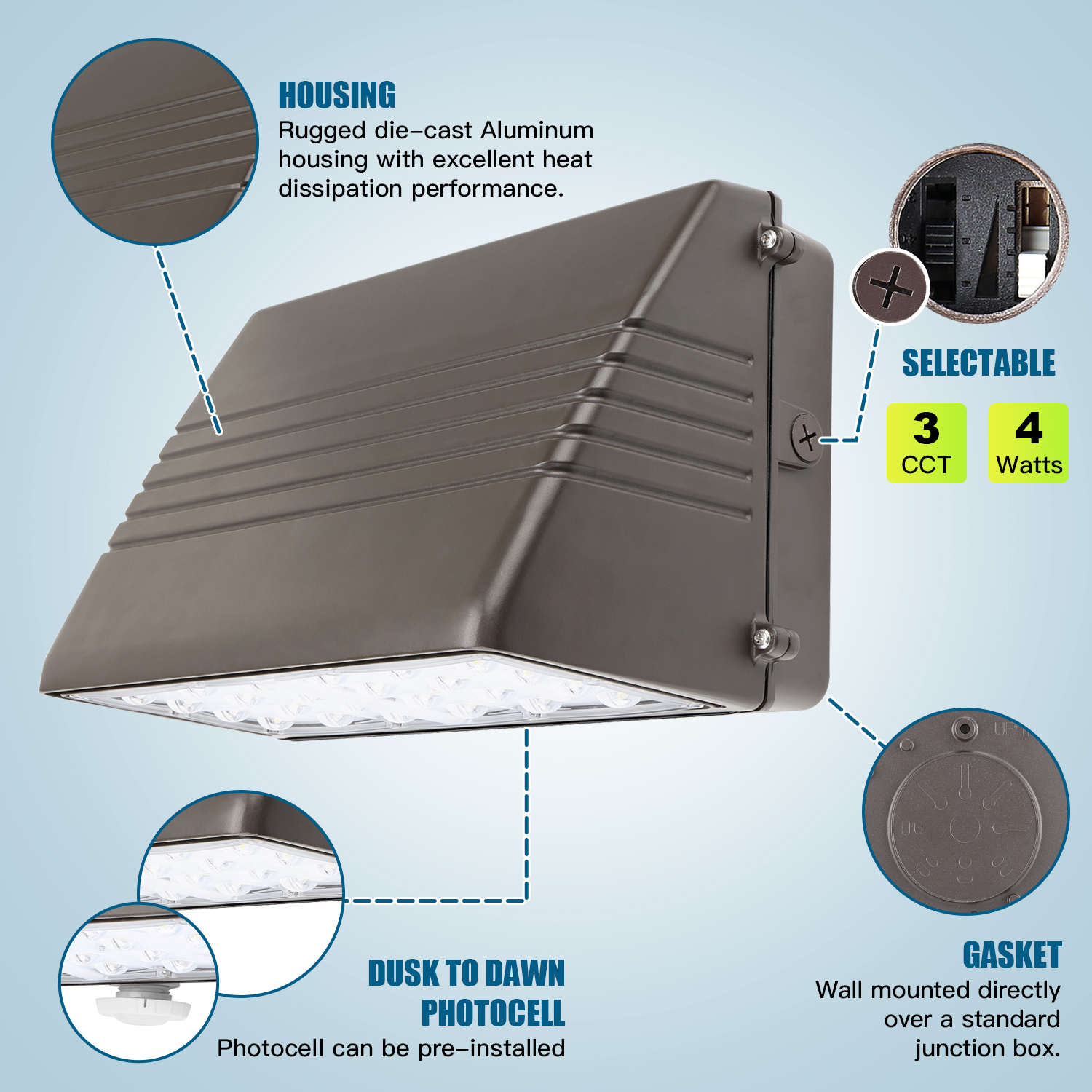

* Ruggedcast-aluminumhousingwith bronze polyester powder paint for outdoor applications.
* Casting thermally conducts LED heat to optimize performance and long life.
* The design with zero uplight meets the requirements ofdarksky."
Optics
* Switchable color temperature 3000K/4000K/5000K.
* Adjustable lumenoutputwith four lumen settings 100%,80%,60%,40%.
* Scalable Lumen Packages from 4,100 to 20,000 Lumens."
* Tempered UV coated flat lens provide outstandingperformance,uniformity and glare control.
Electrical
* Universal 120-277 VAC or 120-347VAC input voltage.
* 0-10V dimming standard for a dimming range of 100% to 10%..
* Operating Temperature Range:-40℃ to 45℃(-40°F-+113°F).
Note:Operating with emergency battery temperature range:5℃to 45℃(+41F-+113F).
Controls
* Optional Occupancy sensor,Microwave sensor,Multifunction Sensoror daylight sensor.
* Optional Bluetooth sensor or Bluetooth controller.
* Silvair Luminaire Level Lighting Control (LLLC)optional"
* Sharkward Luminaire Level Lighting Control (LLLC)optional
* Haisen Luminaire Level Lighting Control (LLLC)optional."
* Also compatible with 3rd party smart network control system.
Lifespan
* Estimated 50,000-hourLED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
* Five-year limited warranty.
Certifications

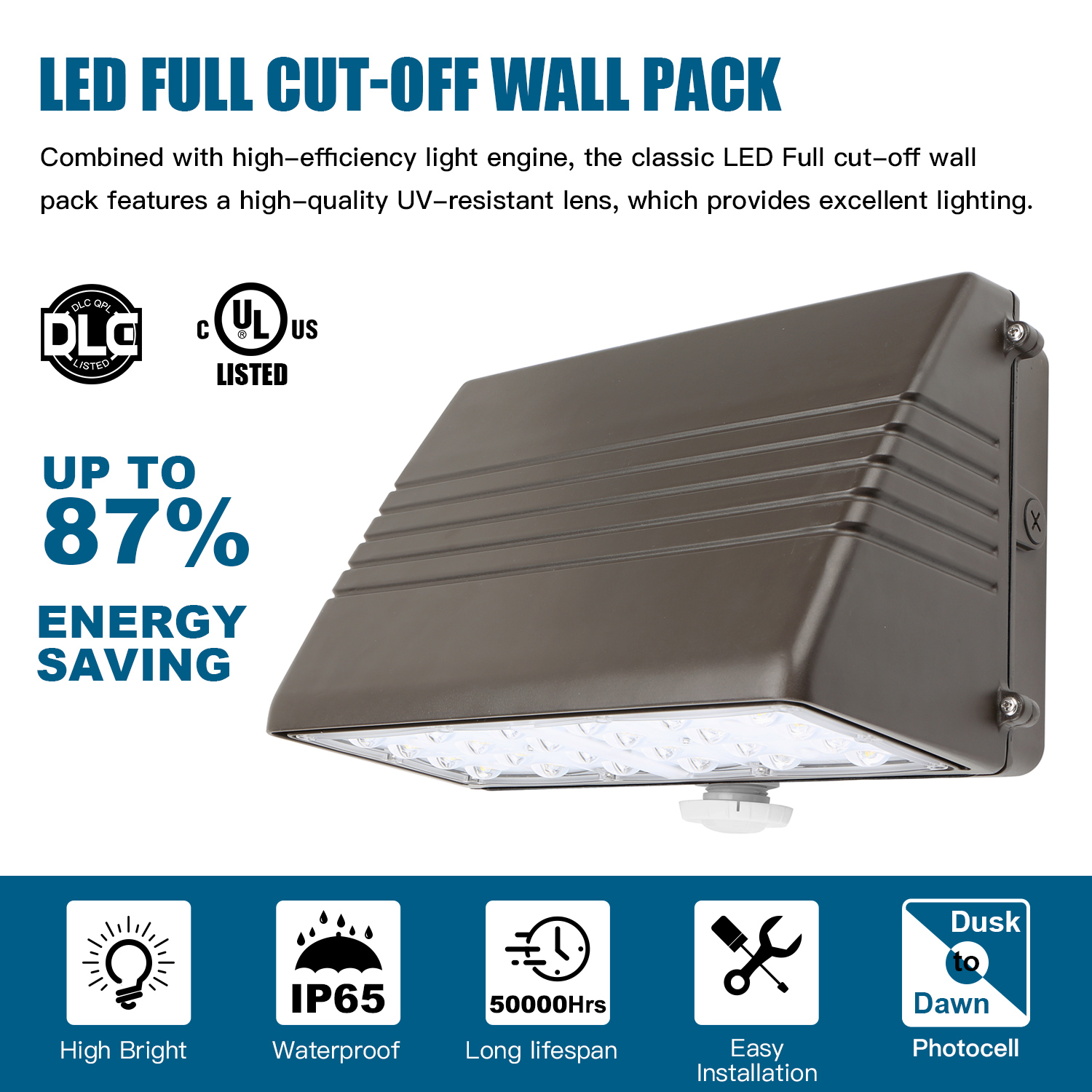

* UL cUL wet location listed.

	LED Post Top Lights	LED Parking Lot Light	LED Retrofit Kits	LED Stadium Light	LED Flood Light
Voltage	AC100-277V	AC100-480V	AC100-480V	AC100-480V	AC100-277V
Applications	Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on	Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on	utdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on	Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on	Outdoor use, Yard, Barn, Street, Area, Pathway, Patio and so on
Lumens	7800LM~19500LM	14000LM~44800LM	14000LM~42000LM	84000LM~130000LM	14000LM~42000LM
Feature	Dusk to Dawn	Dusk to Dawn	Super Bright	Super Bright	Super Bright

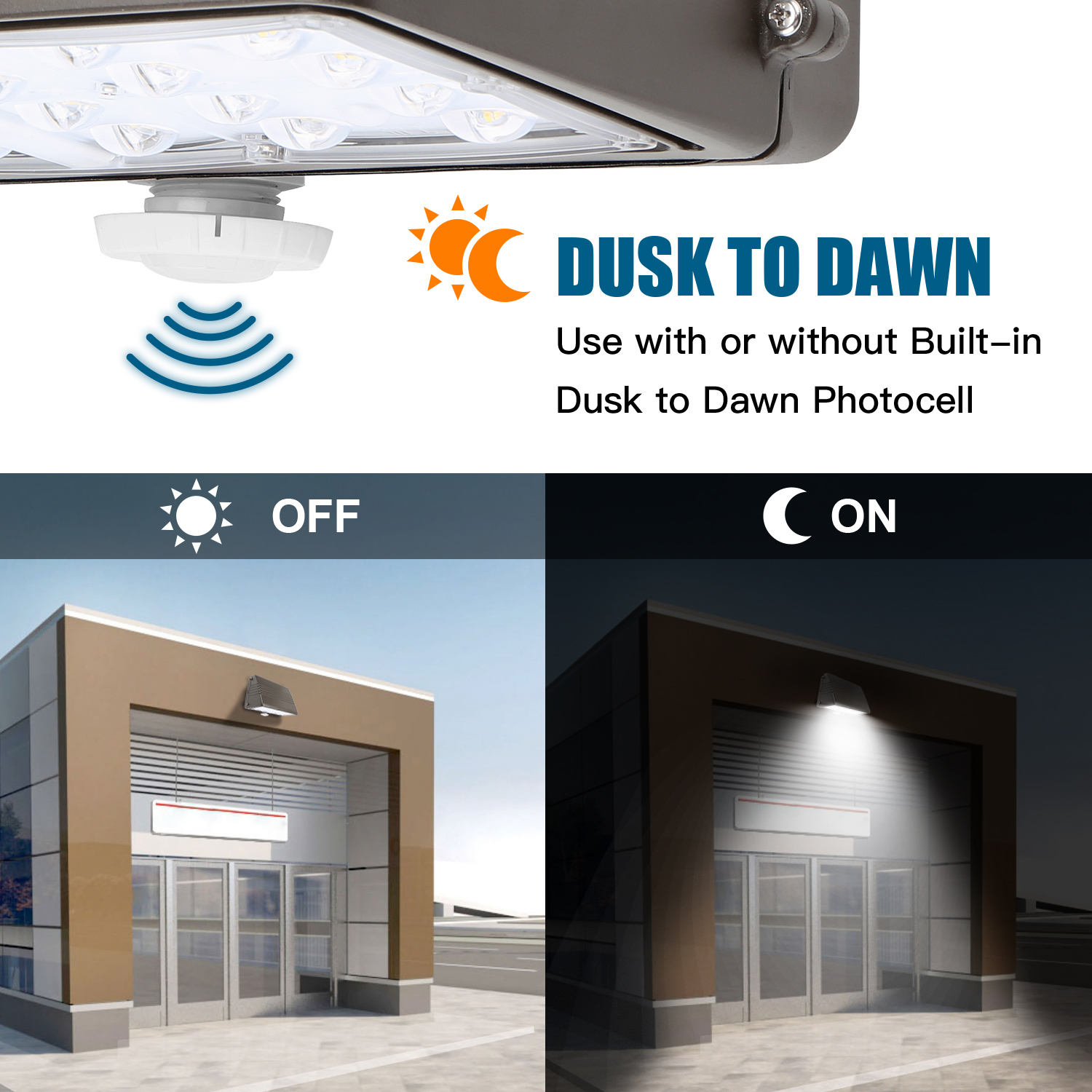

Q:Does it come with dusk to dawn photocell sensor?

A:Yes.It is with photocell sensor built in.It'll only turn on at night when it’s dark and shuts it off when light is detected.

Q:What is the input voltage?

A:They come with wide input voltage 100-277V.

Q:How high do I mount the led wall pack?

A:60/80w led wall packs are suggested to be mounted at 12-15 ft height ;while 100/120w ones are suggested to be mounted at 15-20 ft height.

Q:Does it have an IP rating?

A:They are IP65 rated waterproof and dust proof,perfect for damp/wet location.

Q:Is the lens made by glass or PC?

A:It can be made by glass or PC according to customer’s requirements.But ones stocked in US warehouse are usually with tempered glass lens.

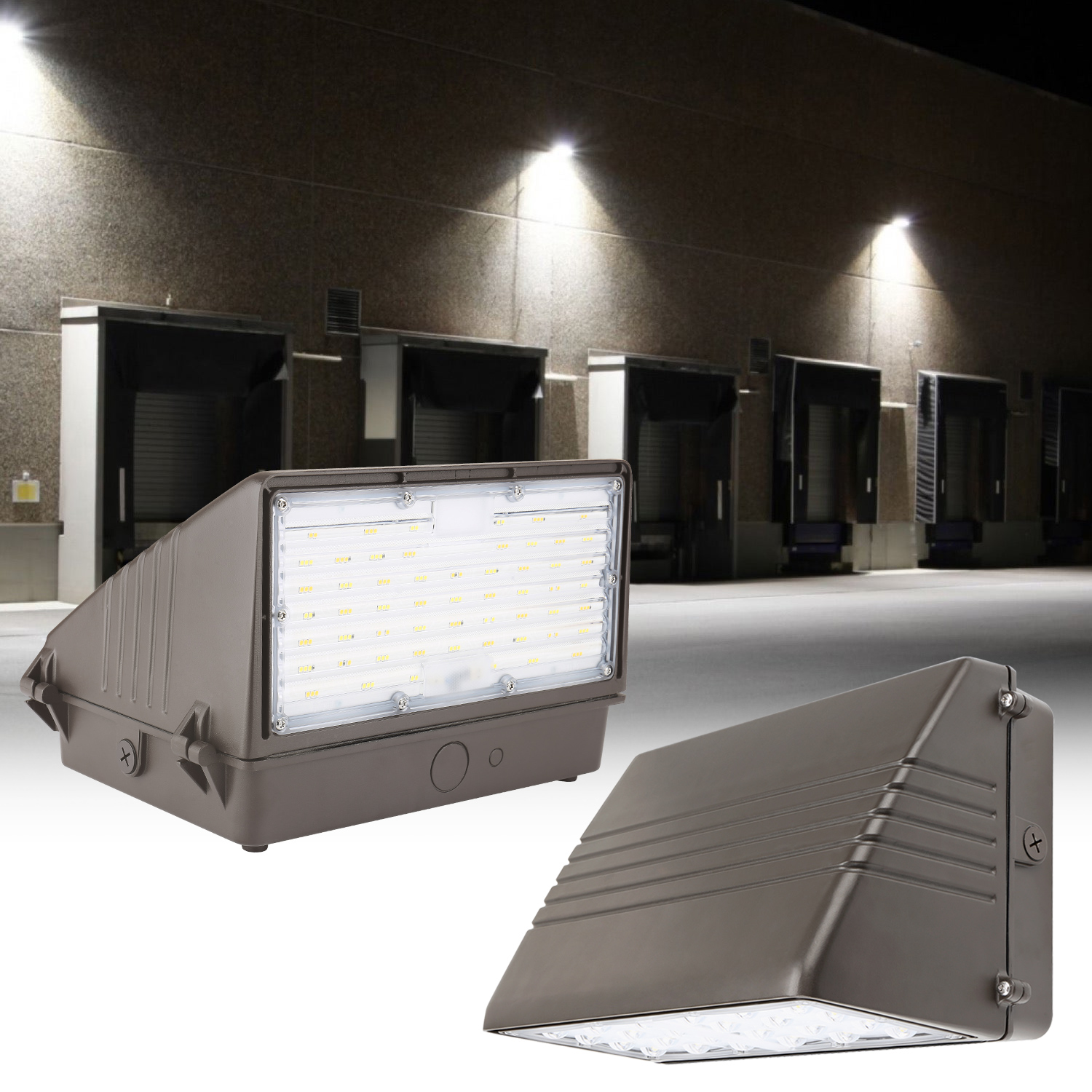

Q:Where are led wall pack used?

A:Building walls,Warehouse doors, alleyways,Driveways,loading docks and adjacent parking spots
