Home LED Shoebox Area Light
LED Shoebox Light LED Shoebox Light LED Shoebox Light LED Shoebox Light LED Shoebox Light LED Shoebox Light LED Shoebox Light

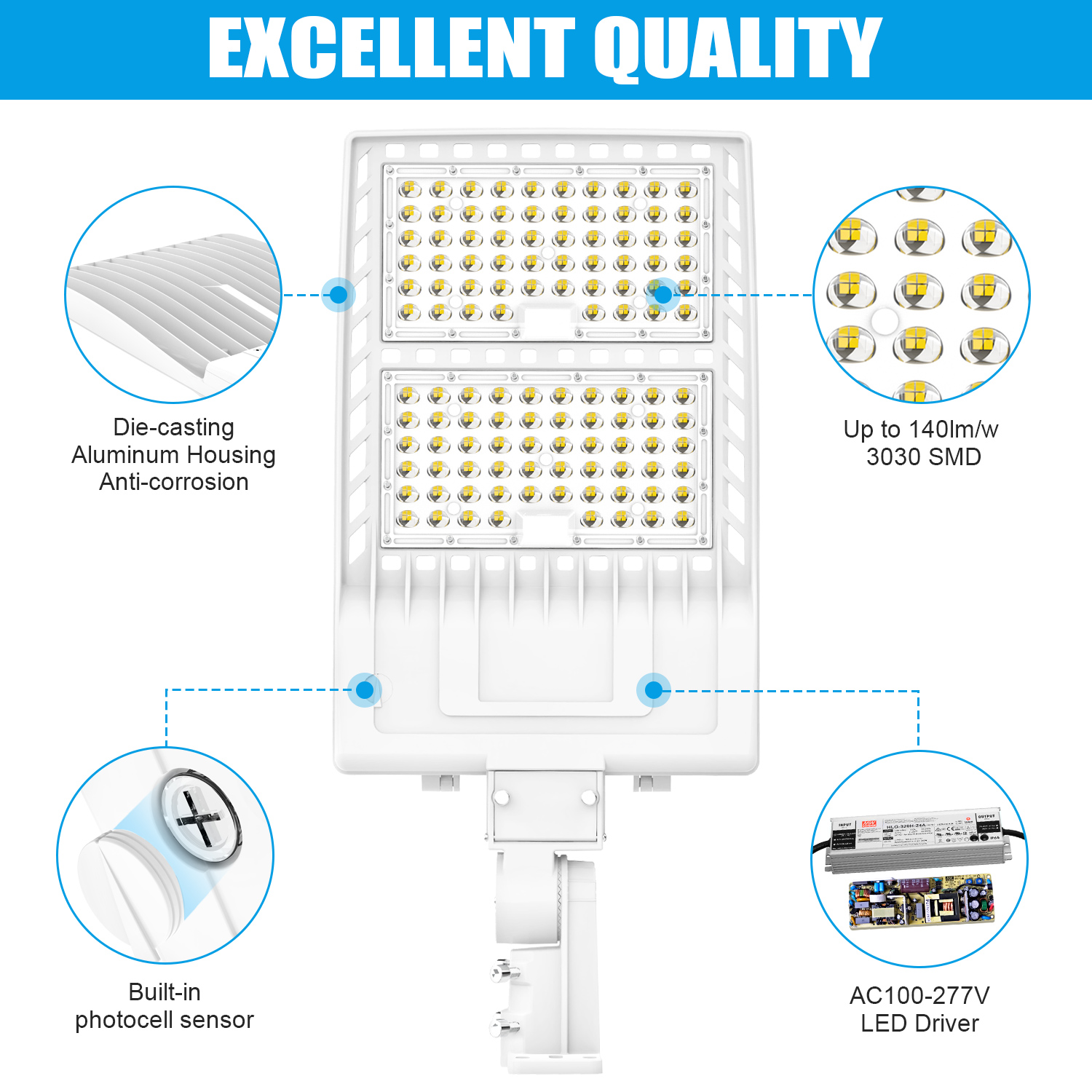

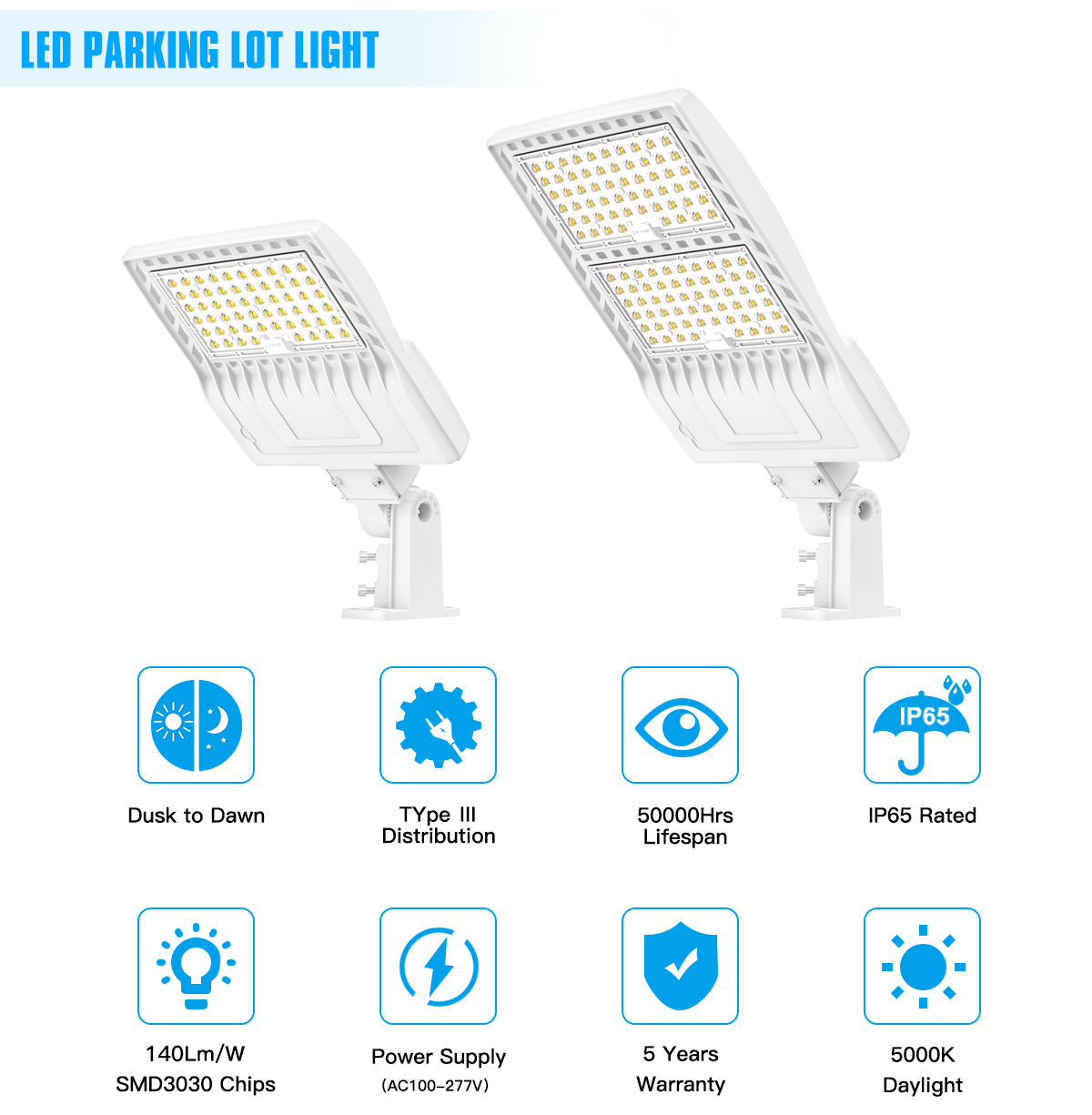

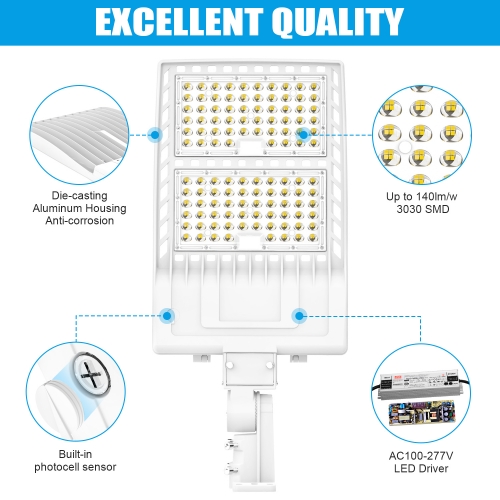

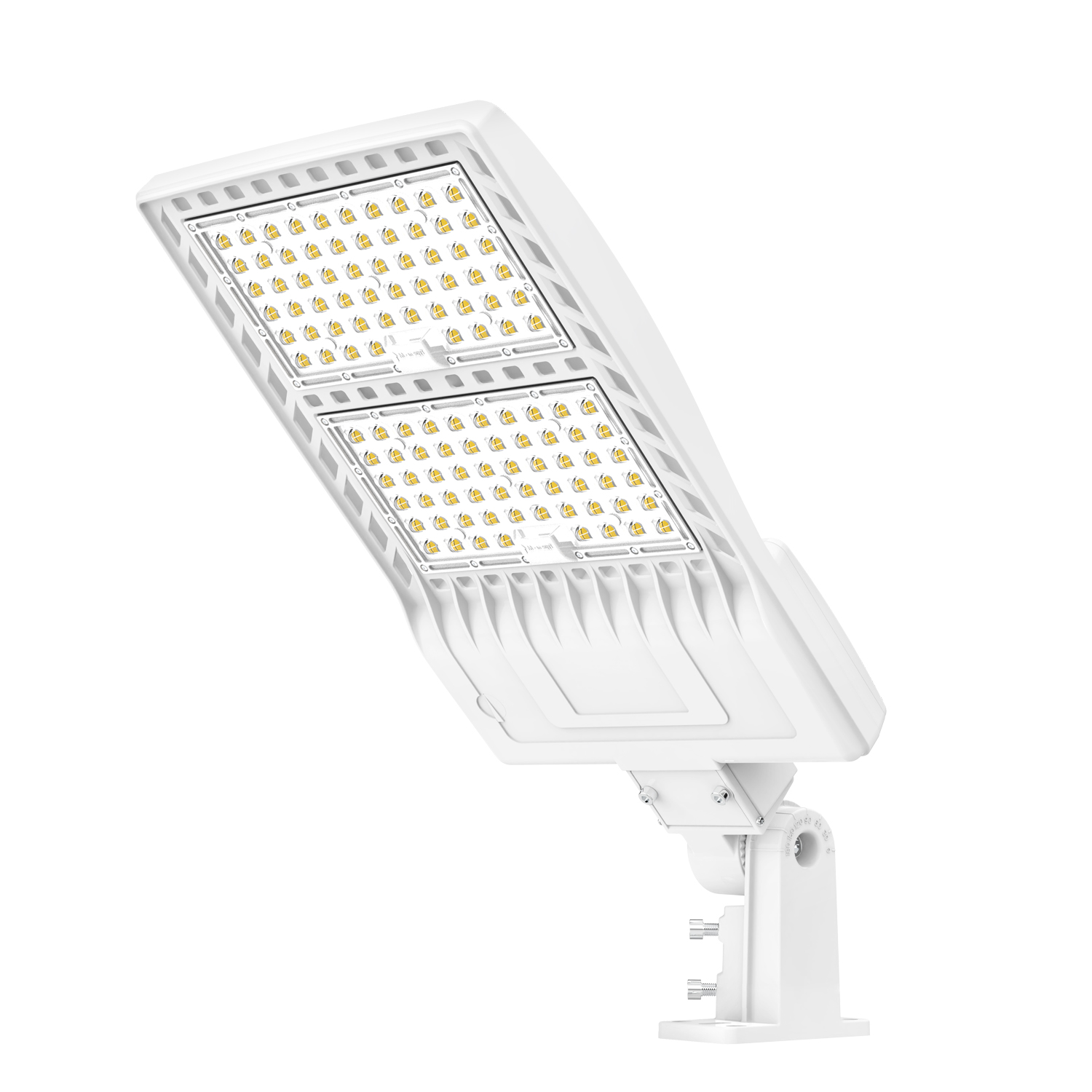

LED Shoebox Light

Item No.: NG-NSB-W
· UL, cUL, DLC, ETL, cETL, CE approved
· 100W 150W 200W 240W 320W
· Type ll, Type lll, Type V distributions
· Photocell auto switch to regular
· IP65 dust free and waterproof
· 6K High voltage surge test approved
· SMD3030 150LM/W LED chips
· 50.00
Quantity
-
+
Login to Order Request Quote
Description Overseas Warehouse FAQ DLC Certification
Description

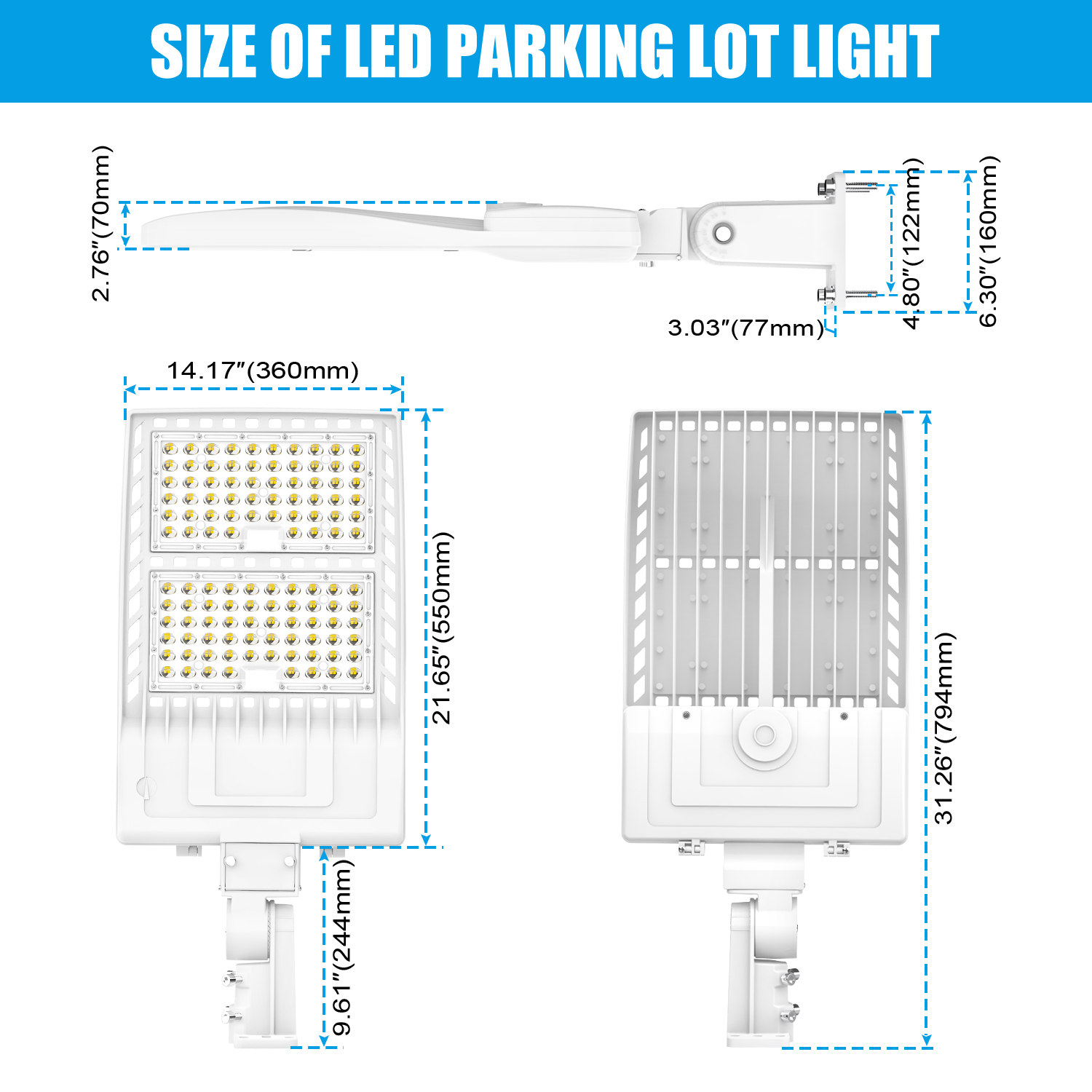

Item No. Wattage Input voltage Light Source Luminous Flux Light Effi. LED Driver Dimension Photocell
NG-NSB-150W 150W 100~277V 176 pcs SMD3030 21000Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-150WH 150W 277-480V 176 pcs SMD3030 21000Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-200W 200W 100~277V 232 pcs SMD3030 28000Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-200WH 200W 277-480V 232 pcs SMD3030 28000Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-240W 240W 100~277V 352pcs SMD3030 33600Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-240WH 240W 277-480V 352pcs SMD3030 33600Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-320W 320W 100~277V 464pcs SMD3030 44800Lm 140LM/W UL Driver 788*360mm Built-in photocell
NG-NSB-320WH 320W 277-480V 464pcs SMD3030 44800Lm 140LM/W UL Driver 788*360mm Built-in photocell
NG-NSB-400W 400W 100~277V 464pcs SMD3030 56000Lm 140LM/W UL Driver 788*360mm Built-in photocell
NG-NSB-400W Tunable
240W
320W
400W		 100~277V 464pcs SMD3030 56000Lm 140LM/W UL Driver 788*360mm Built-in photocell
NG-NSB-400WH 400W 277-480V 464pcs SMD3030 56000Lm 140LM/W UL Driver 788*360mm Built-in photocell
NG-NSB-450W 450W 100~277V 464pcs SMD3030 63000Lm 140LM/W UL Driver 788*360mm Built-in photocell
Parking Lot LED Area Lights led garden light led shoebox light led retrofit kits led wall pack light led flood light
  LED Post Top Lights LED Parking Lot Light LED Retrofit Kits
LED Wall Pack Light
 		 LED Flood Light

 Voltage

 AC100-277V AC100-480V AC100-480V AC100-277V AC100-277V
  Applications Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on utdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, Yard, Barn, Street, Area, Pathway, Patio and so on

 Lumens
 		 7800LM~19500LM 14000LM~44800LM 14000LM~42000LM 8400LM~16800LM 14000LM~42000LM

Feature
 		 Dusk to Dawn Dusk to Dawn Super Bright Dusk to Dawn Super Bright
Overseas Warehouse
FAQ
FAQ：
Q: Does it come with Pole ,what size how many feet ?

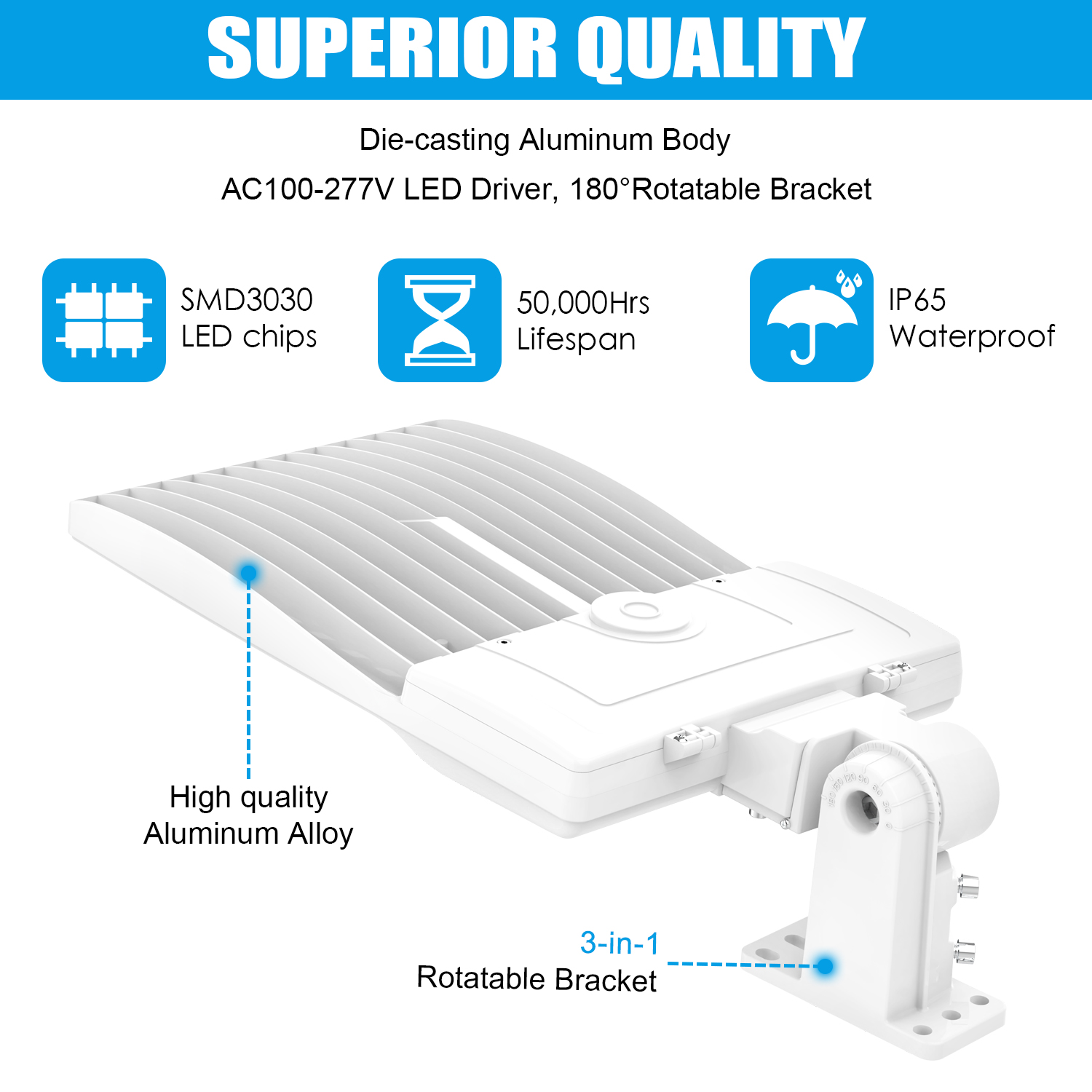

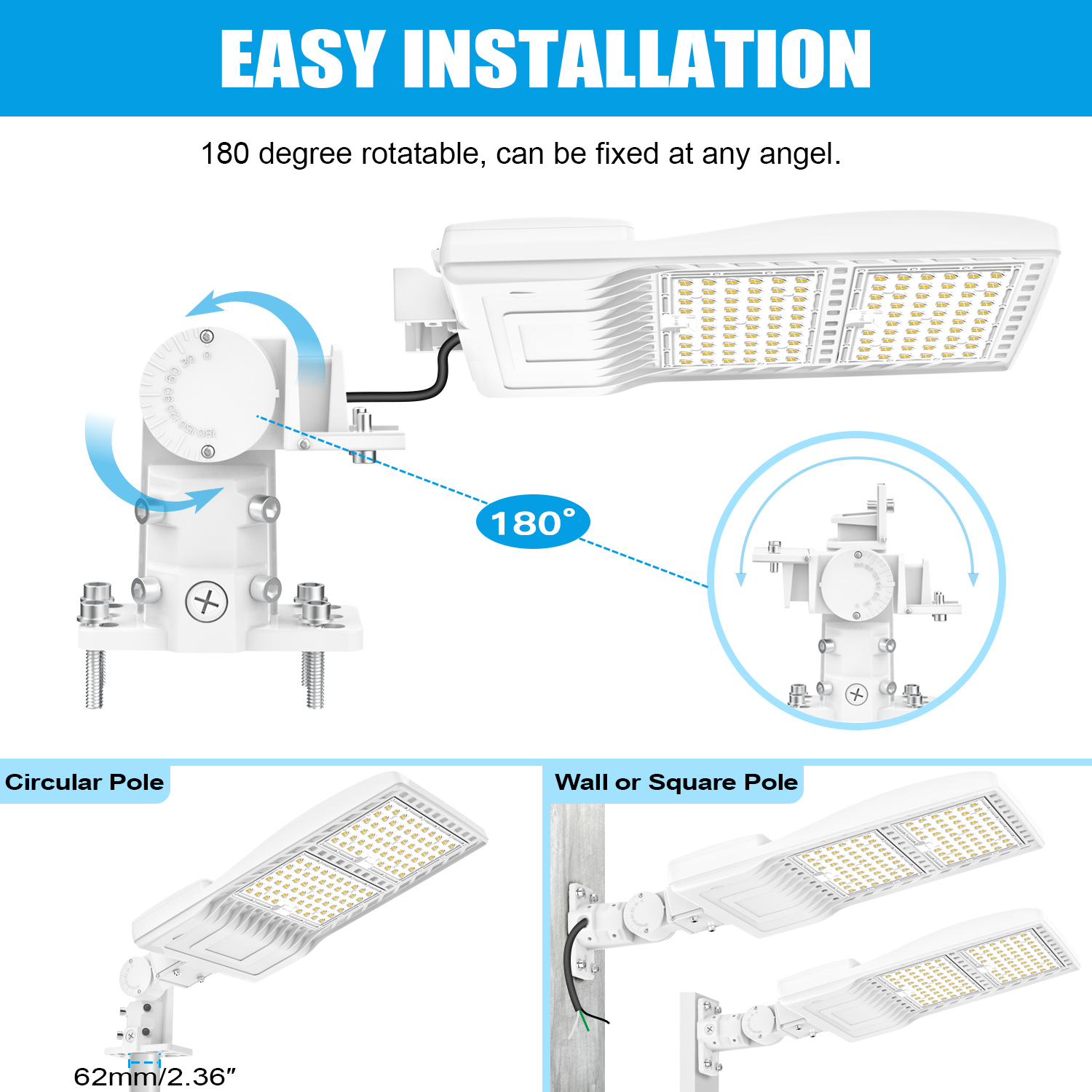

A: No it’s not come with pole, it’s have 3 kinds of bracket for option. All in one, slip fitter, trunnion.The slip fitter mount diameter of the hole is around 2.6 inch (66 mm).

Q: Is it Solar?
A:No,it is AC input voltage LED Lights.

Q: How does this light hold up in snowy/icy weather?
A: This led parking lot lighting is IP65 waterproof rating and the working temperature is -45~45℃.

Q: If this shoe box is dimmable?
A: The led shoebox area light is not dimmable.

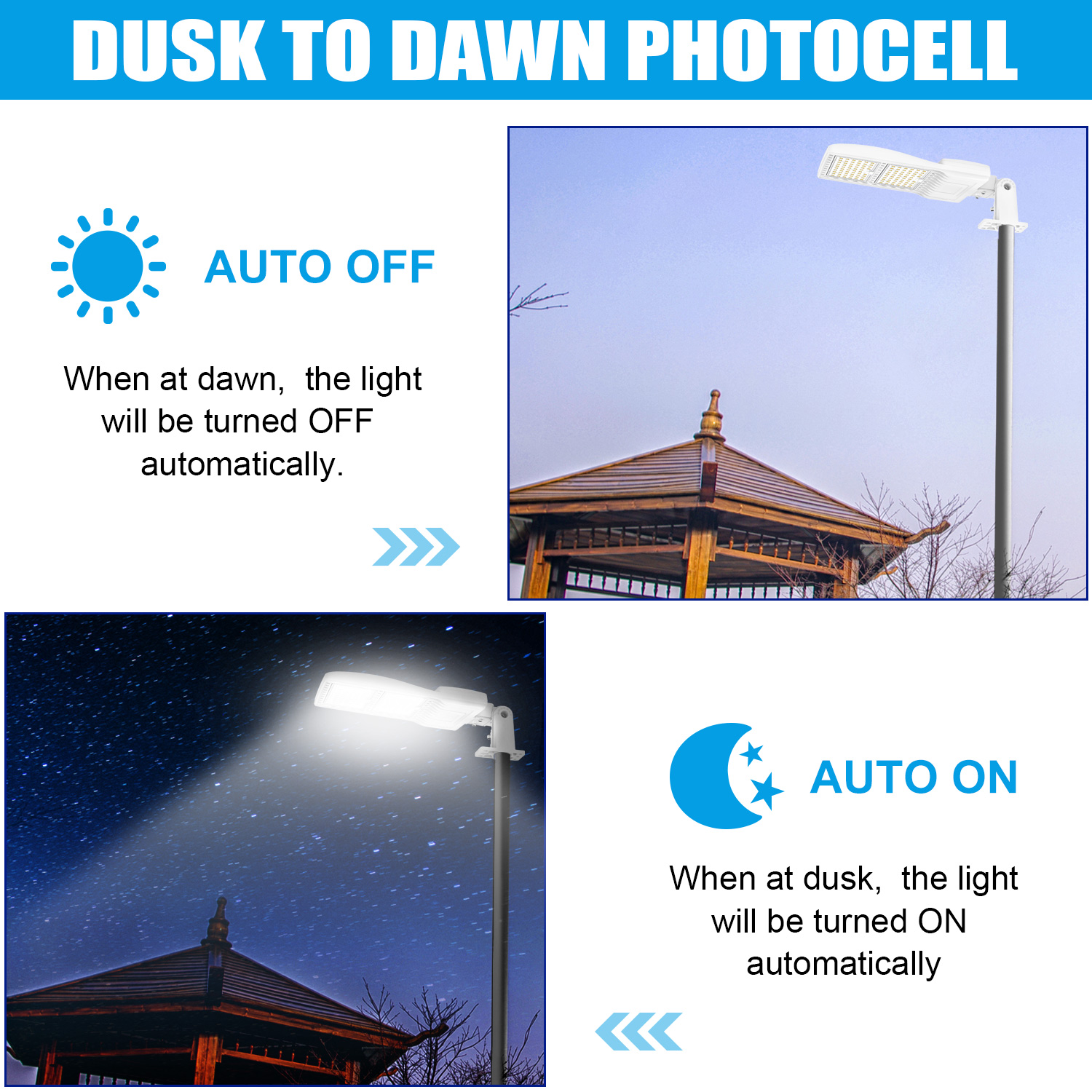

While it’s have photocell to control it dusk to dawn function.

Q: What is the light distribution on this led street fixture?
A: The light distribution is Type III, TYPE II,TYPE V, for others need longer time to prepare materials.

Q: Can it make 347V or 480V high voltage input?
No, it’s can’t make high voltage due to space restrictions of driver part.

Q: What certification this Shoebox have?
This led post top light is UL cUL certified, and it’s also DLC approved, it’s ok for you to apply for rebate. And we provide 5 years warranty. Anything wrong during the warranty period, we’ll solve it for you.

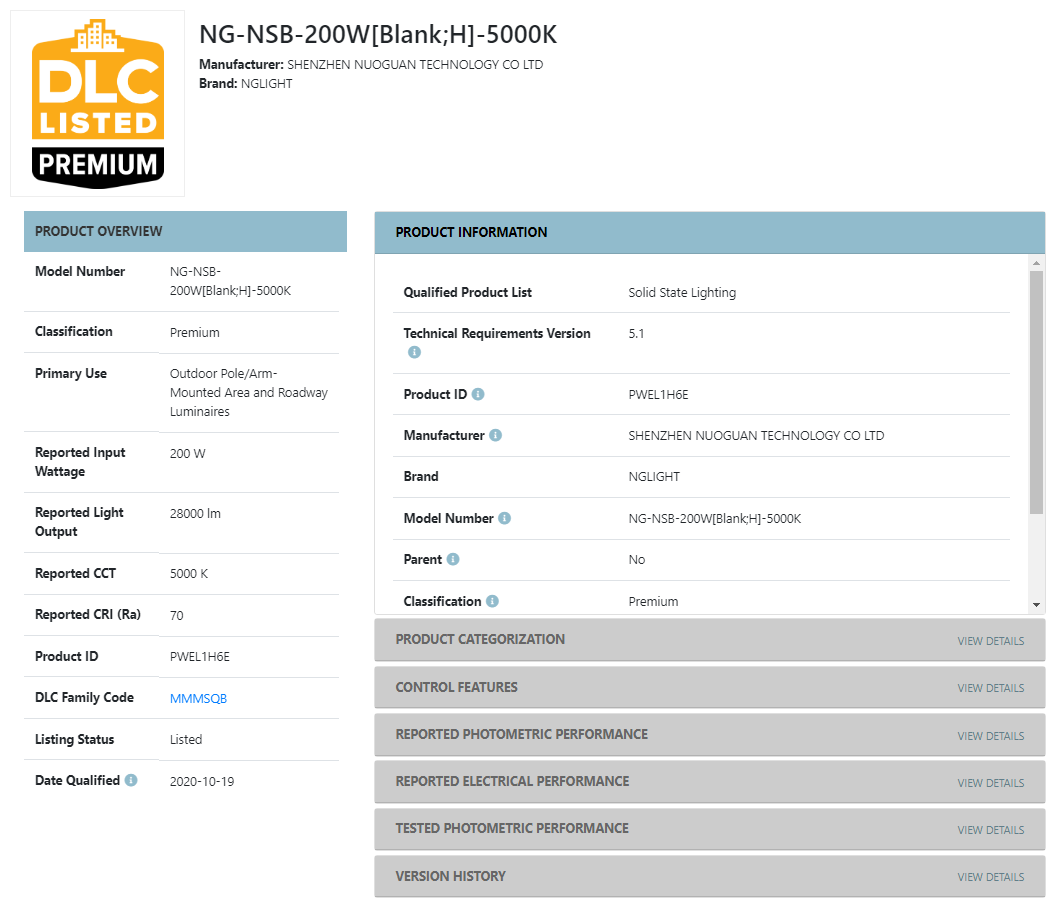

DLC Certification
For more details please click the picture
