Home LED Shoebox Area Light
LED Parking Lot Light LED Parking Lot Light LED Parking Lot Light LED Parking Lot Light LED Parking Lot Light LED Parking Lot Light LED Parking Lot Light LED Parking Lot Light

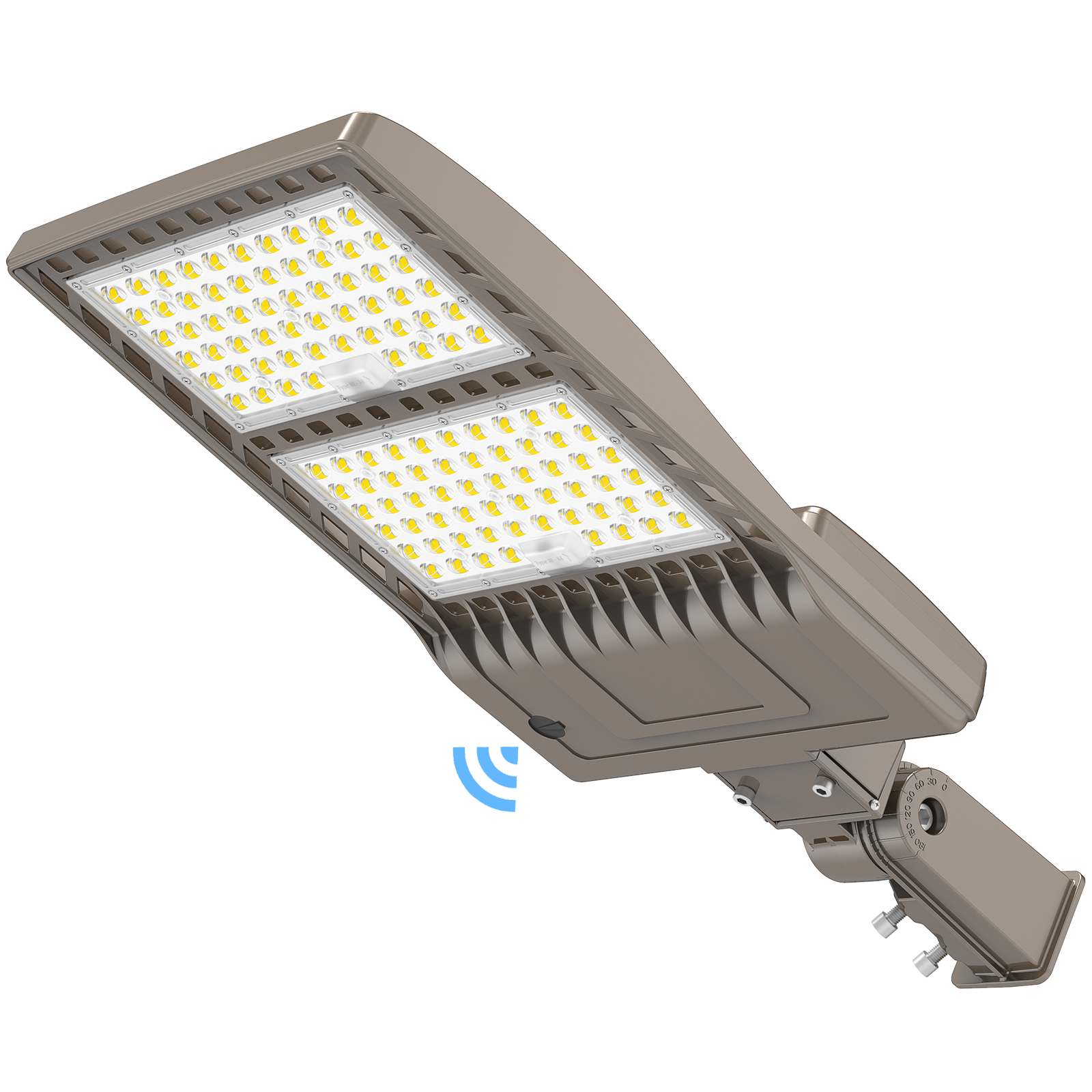

LED Parking Lot Light

Item No.: NG-NSB
· UL, cUL, DLC, ETL, cETL, CE approved
· Dust-proof and waterproof
· Dusk to dawn photocell sensor

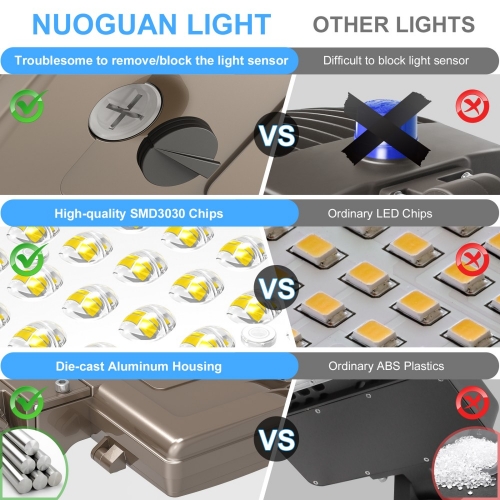

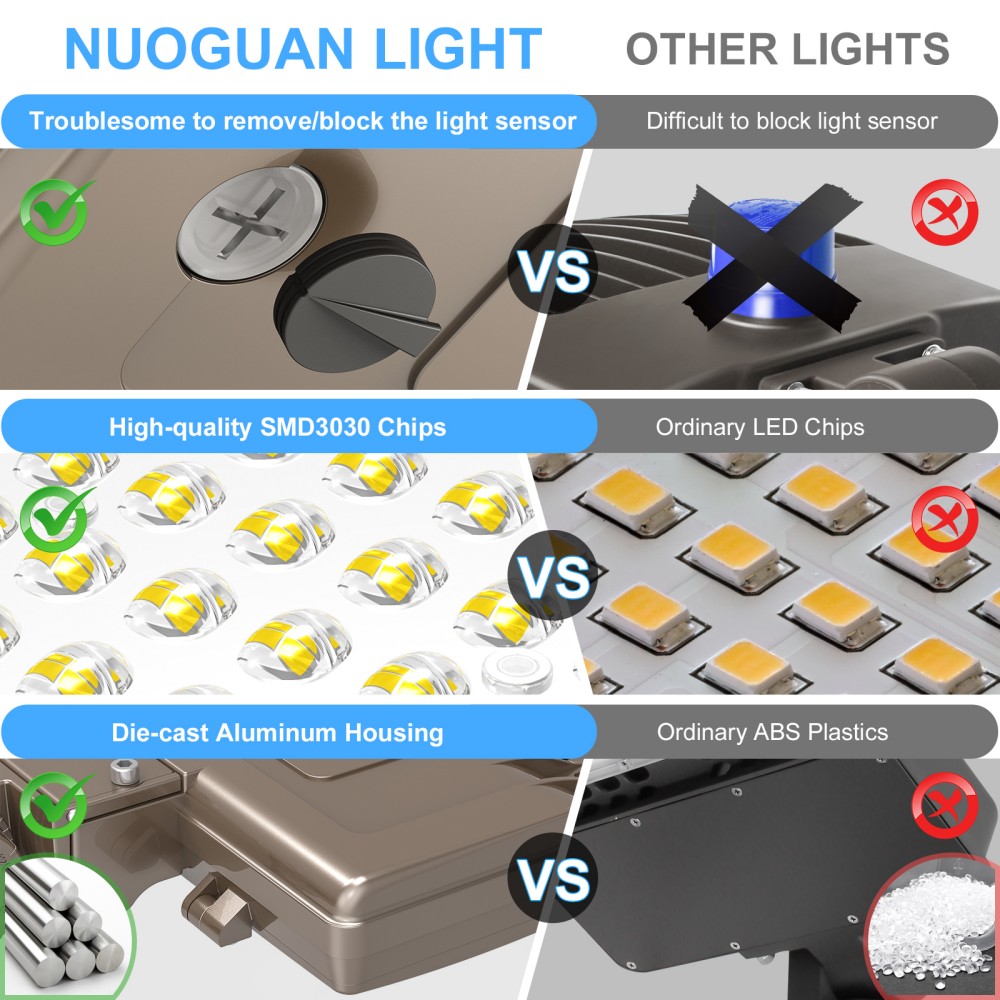

· Die-cast aluminum housing anti-corrosion
· 6K High voltage surge test approved
· SMD3030 150LMW LED chips
· 50,000hrs lifespan
· Adjustable wattage
Quantity
-
+
Login to Order Request Quote
Description DLC Certification FAQ Overseas Warehouse
Description

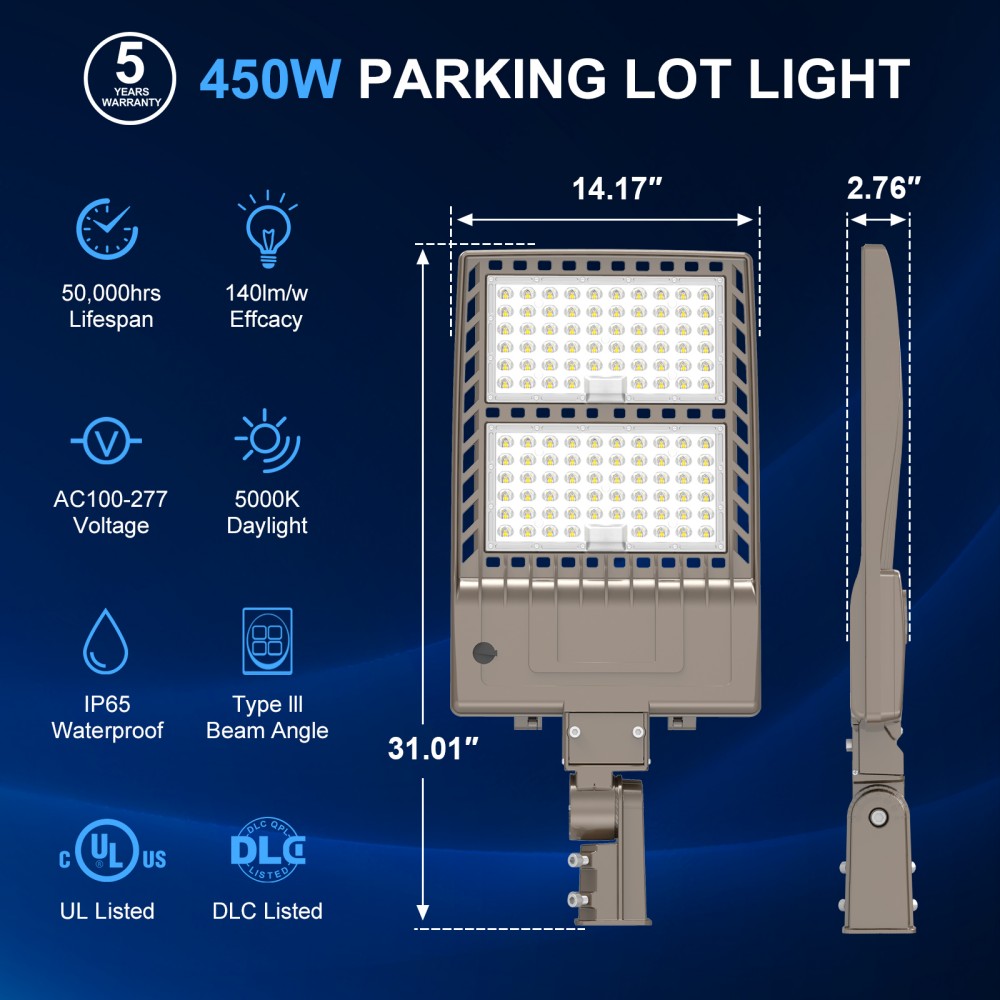

Item No. Wattage Input voltage Light Source Luminous Flux Light Effi. LED Driver Dimension Photocell
NG-NSB-150W 150W 100~277V 176 pcs SMD3030 21000Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-150WH 150W 277-480V 176 pcs SMD3030 21000Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-200W 200W 100~277V 232 pcs SMD3030 28000Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-200WH 200W 277-480V 232 pcs SMD3030 28000Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-240W 240W 100~277V 352pcs SMD3030 33600Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-240WH 240W 277-480V 352pcs SMD3030 33600Lm 140LM/W UL Driver 615*360mm Built-in photocell
NG-NSB-320W 320W 100~277V 464pcs SMD3030 44800Lm 140LM/W UL Driver 788*360mm Built-in photocell
NG-NSB-320WH 320W 277-480V 464pcs SMD3030 44800Lm 140LM/W UL Driver 788*360mm Built-in photocell
NG-NSB-400W 400W 100~277V 464pcs SMD3030 56000Lm 140LM/W UL Driver 788*360mm Built-in photocell
NG-NSB-400W Tunable
     240W
320W
400W		 100~277V 464pcs SMD3030 56000Lm 140LM/W UL Driver 788*360mm Built-in photocell
NG-NSB-400WH 400W 277-480V 464pcs SMD3030 56000Lm 140LM/W UL Driver 788*360mm Built-in photocell
NG-NSB-450W 450W 100~277V 464pcs SMD3030 63000Lm 140LM/W UL Driver 788*360mm Built-in photocell


NGTLIGHT parking lot led light is made of pure aluminum, and the outer casing is compact. The use of aluminum material provides strong protection and durability for the heat while ensuring heat dissipation. The radiator adopts a hollow design To increase the heat dissipation surface, accelerate the air flow, take away more heat, protect the chip, and provide you with 50,000+ hours of long-lasting lighting service.

Perfect for parking lots, roadways, car dealerships, campuses, parks, and as a replacement for street lights and vapor lamps—this LED shoebox area light shines brightly when reliability and performance are critical.

SUITABLE FOR ALL CONDITIONS
Excellent IP65 waterproof & DUST RESISTANT performance and shatterproof, suitable for indoor dry and outdoor damp applications.
Built-in 6KV Surge Protection
Outdoor is the main places of use for the parking lot led light, and combating bad weather is also a basic requirement for a high quality outdoor area light. The Areas led shoebox light has a built-in 6KV protector to prevent damage caused by lightning surges

Outdoor LED Parking Lot Pole Lights Commercial

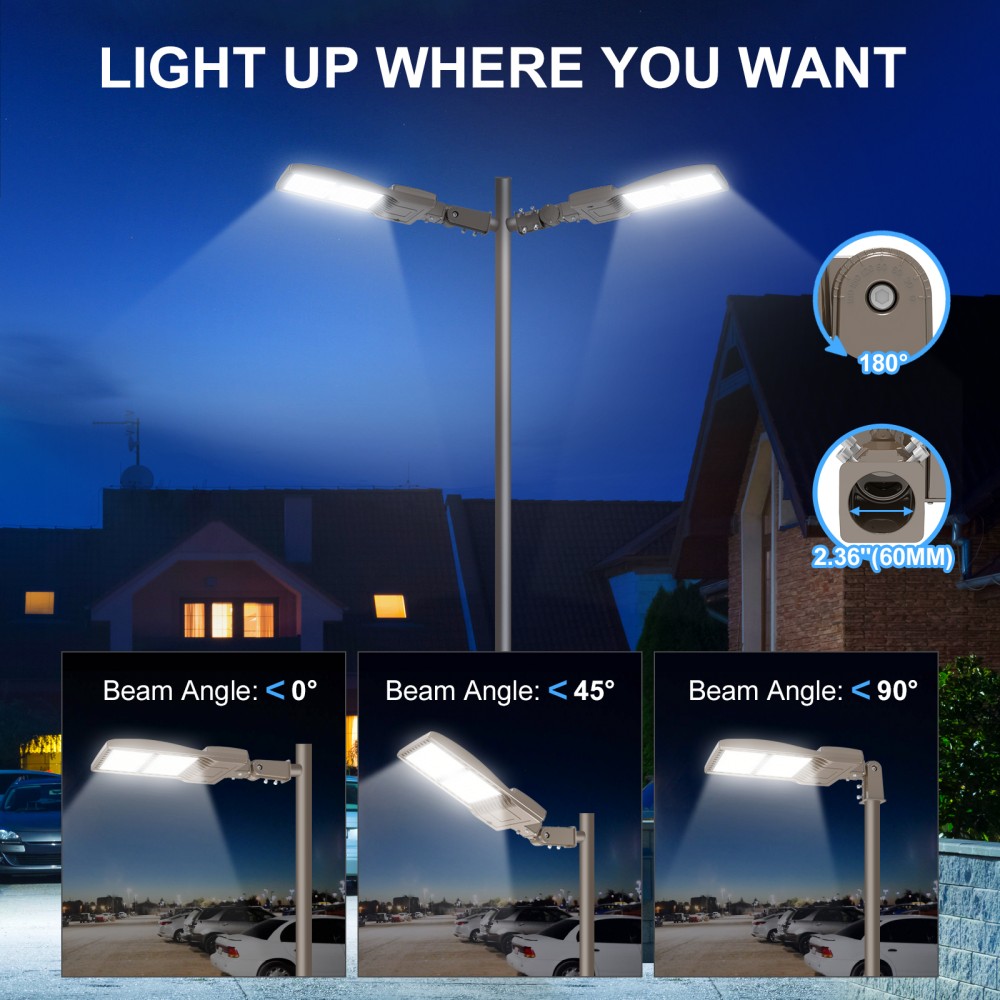

  • Easy to install the light on the pole with Slip Fitter Mounting, the SF bracket is 180 degrees adjustable.
  • Super bright shoebox led pole lighting effects to replace traditional MH/HPS/HID bulb, cut down your electricity consumption!

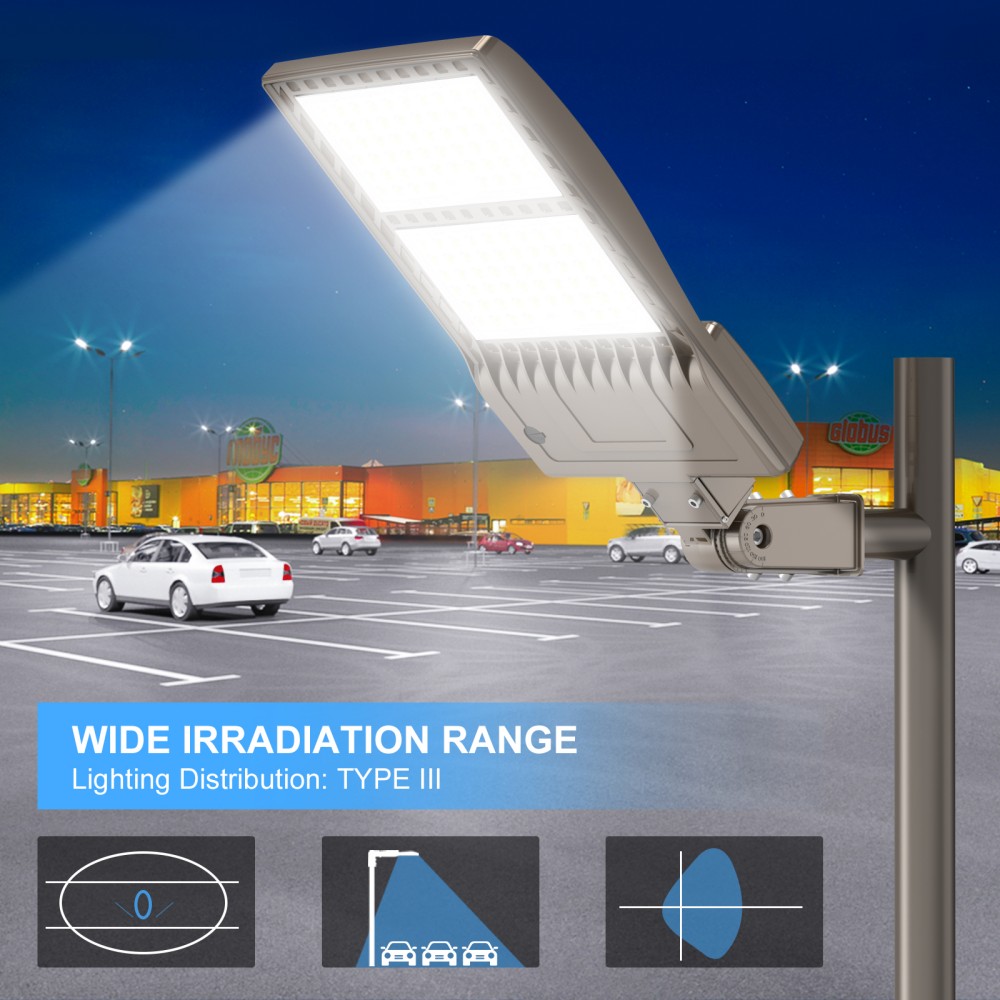

  • TYPE III Light Distribution-Best for outdoor street lighting patterns, cover larger areas.

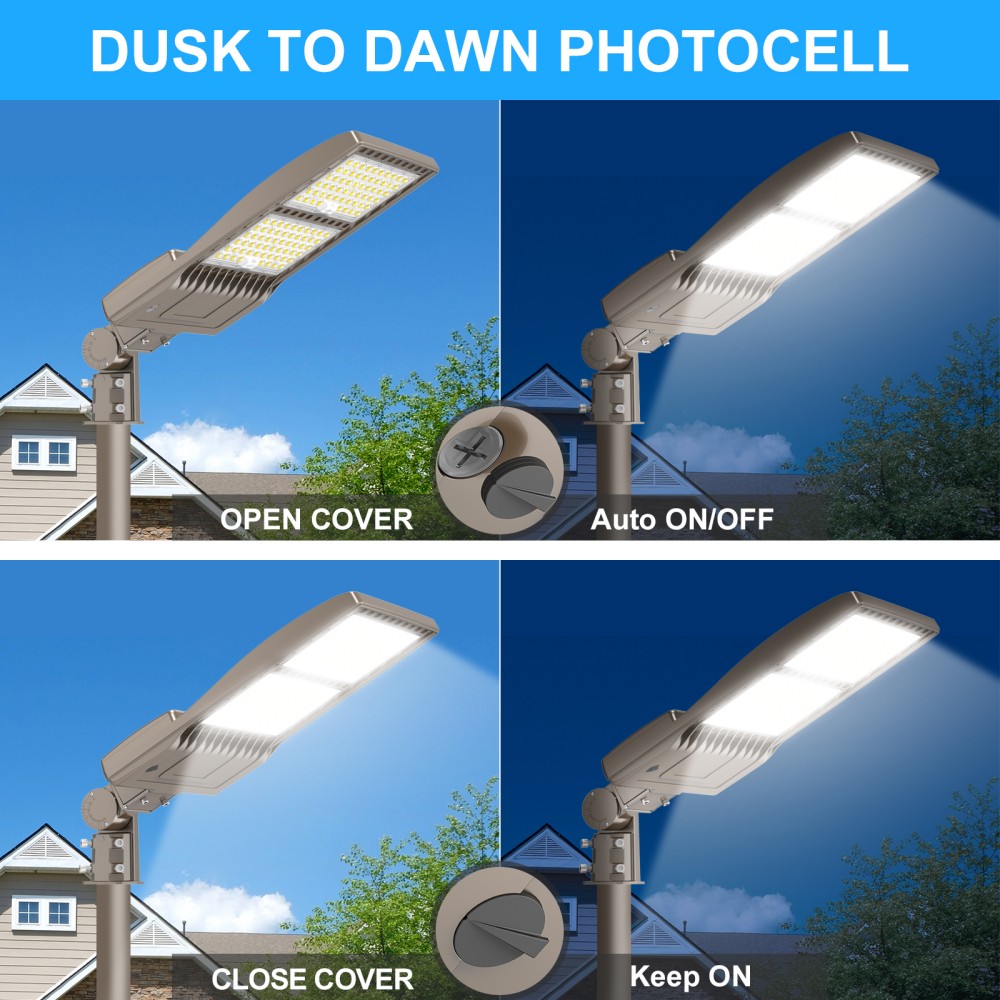

Dusk to Dawn Photocell Sensor on the led pole light, turn on at dusk and off at daytime automatically

150W Parking Lot LED Area Lights led garden light led parking lot light led retrofit kits led wall pack light led flood light led garden light
  LED Post Top Lights LED Parking Lot Light LED Retrofit Kits
LED Wall Pack Light
 		 LED Flood Light LED Post Top Light

 Voltage
 		 AC100-277V AC100-480V AC100-480V AC100-277V AC100-277V AC100-277V
  Applications Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, Yard, Barn, Street, Area, Pathway, Patio and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on

 Lumens
 		 7800LM~19500LM 14000LM~44800LM 14000LM~42000LM 8400LM~16800LM 14000LM~42000LM 7800LM~19500LM

Feature
 		 Dusk to Dawn Dusk to Dawn Super Bright Dusk to Dawn Super Bright Dusk to Dawn

DLC Certification

For more details please click the picture

FAQ

Q: Does it come with Pole ,what size how many feet ?

A: It is come with the slip fitter mount same as the picture, the diameter of the hole is around 2.6 inch (66 mm).

Q: Is it Solar?

A:No,it is AC input voltage LED Lights.

Q: How does this light hold up in snowy/icy weather?

A: This led parking lot lighting is IP65 waterproof rating and the working temperature is -40~50℃.

Q: If this shoe box is dimmable?

A: The led shoebox area light is not dimmable.

Q: What is the light distribution on this led street fixture?

A: The light distribution is Type III.We also provide TYPE II,TYPE V,but it needs to be sent from China.

Q:Can led corn lights make 2200k?

A: Sure,2200/3000/4000/6000K is acceptable.It will be sent from China.

Q: Does the 320w shoe box light have a neutral wire and a live wire, or are there two live wires?

A: This light is rated for AC100-277volt, so 110V and 220V can definitely be used.
