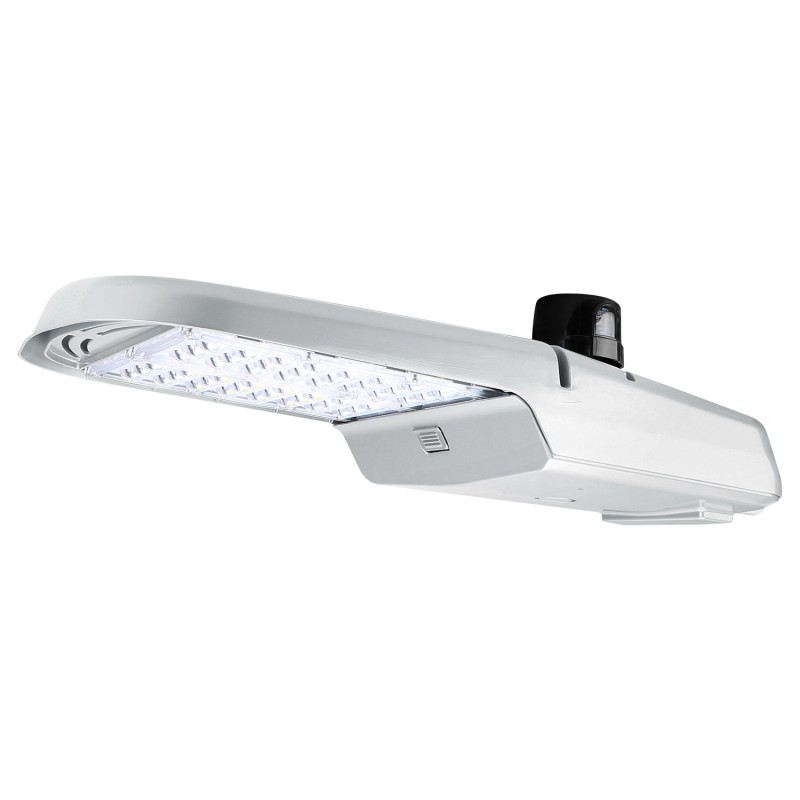

LED Road Light

Item No.: NG-RL02
· 70W 105W 150W
· UL, DLC approved
· Type ll, Type lll, Type IV distributions
· 3000K,3500K,4000K and 5000K(+/-275K)CCT and 70 CRI.
· 10KV@120-277V)/20KV@347-480V)surge protection available.
· SMD3030 140Lm/W LED chips
· 50,000 hrs lifespan & 5 yrs warranty

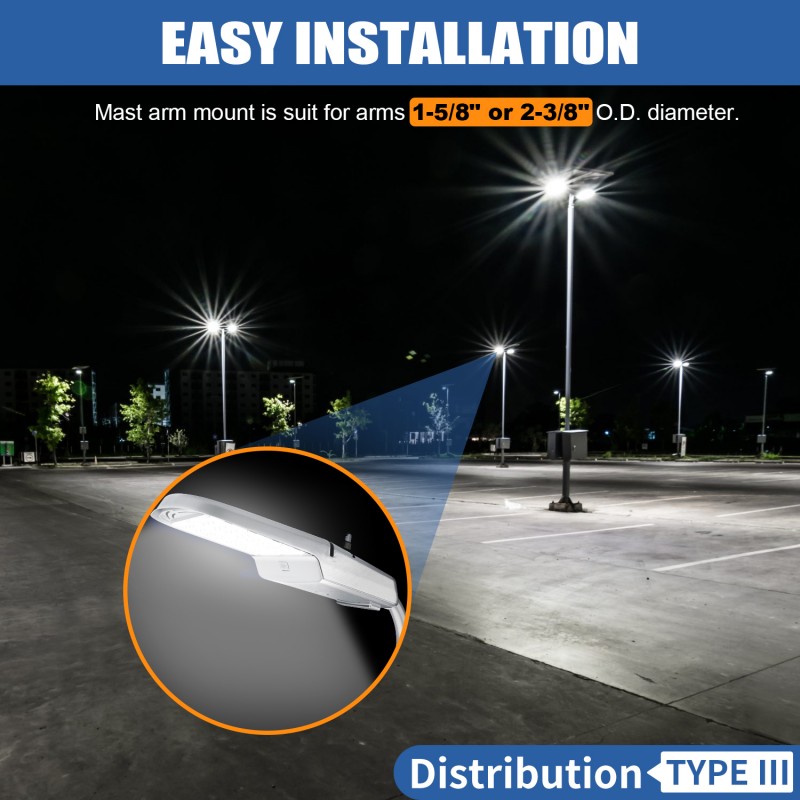

· Mast arm mount is suit for arms 1-5/8"or 2-3/8"O.D.diameter.
Quantity
-
+
Login to Order Request Quote
Description Overseas Warehouse FAQ DLC Certification
Description
SYSTEM
WATTS		 VOLTAGE CRI LUMENS
(3000K)		 LPW
(3000K)		 LUMENS
(3500K)		 LPW
(3500K)		 LUMENS
(4000K)		 LPW
(4000K)		 LUMENS
(5000K)		 LPW
(5000K)		 EPA
70W 120-277V 70  9600lm 137 Im/W 9600lm 137 Im/W 9900lm 141 Im/W 9900lm 141 Im/W 0.4567
70W 347-480V 70  9200lm 131 Im/W 9200lm 131 Im/W 9400lm 134 Im/W 9400lm 134 Im/W 0.4567
105W 120-277V 70  14300lm 136 Im/W 14300lm 136 Im/W 14600lm 139 Im/W 14600lm 139 Im/W 0.4567
105W 347-480V 70  14000lm 133 Im/W 14000lm 133Im/W 14200lm 135 Im/W 14200lm 135 Im/W 0.4567
150W 120-277V/347-480V 70  19500lm 130 Im/W 19600lm 131 Im/W 19800lm 132 Im/W 20000lm 133 Im/W 0.4711
150W 120-277V/347-480V 70  19500lm 130 Im/W 19600lm 131 Im/W 19800lm 132 Im/W 20000lm 133 Im/W 0.4711

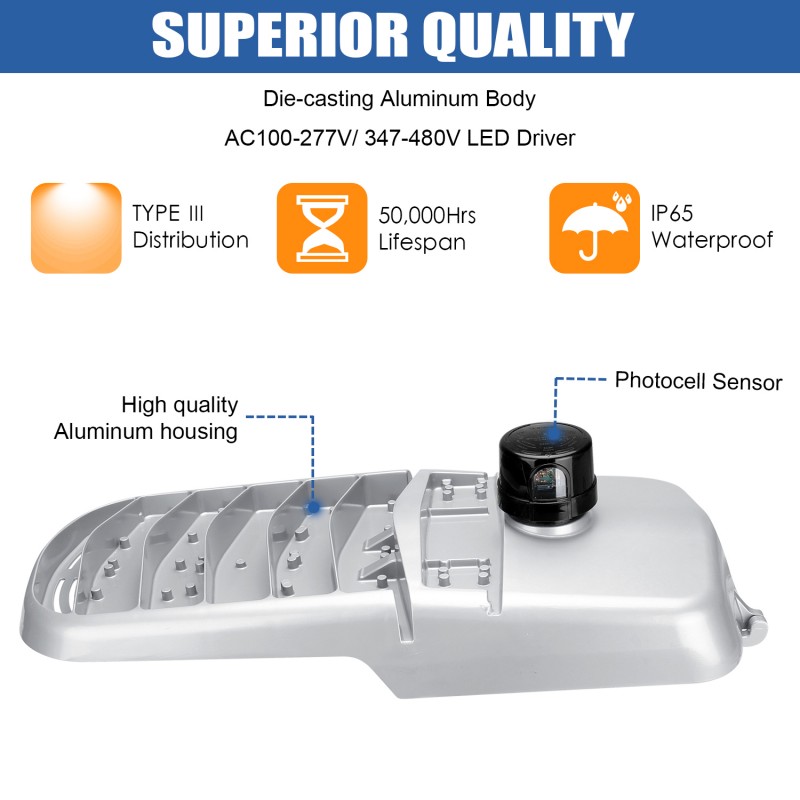

NGTLIGHT RL02 is designed to replace up to 400WMH, it provides excellent optical performance for avariety of area and road applications. The L02 series can reduce energy costs by up to 65%, coupled with low maintenance costs, furthe rreducing budget costs, meeting customers'low budgets while having high-quality lighting. It also provides photocell, sensor and surge protection options, aswell as excellent lumen maintenance, the L02 is ideal for sidewalks, parking lots and roads.




Parking Lot LED Area Lights led garden light led shoebox light led retrofit kits led wall pack light led flood light
  LED Post Top Lights LED Parking Lot Light LED Retrofit Kits
LED Wall Pack Light

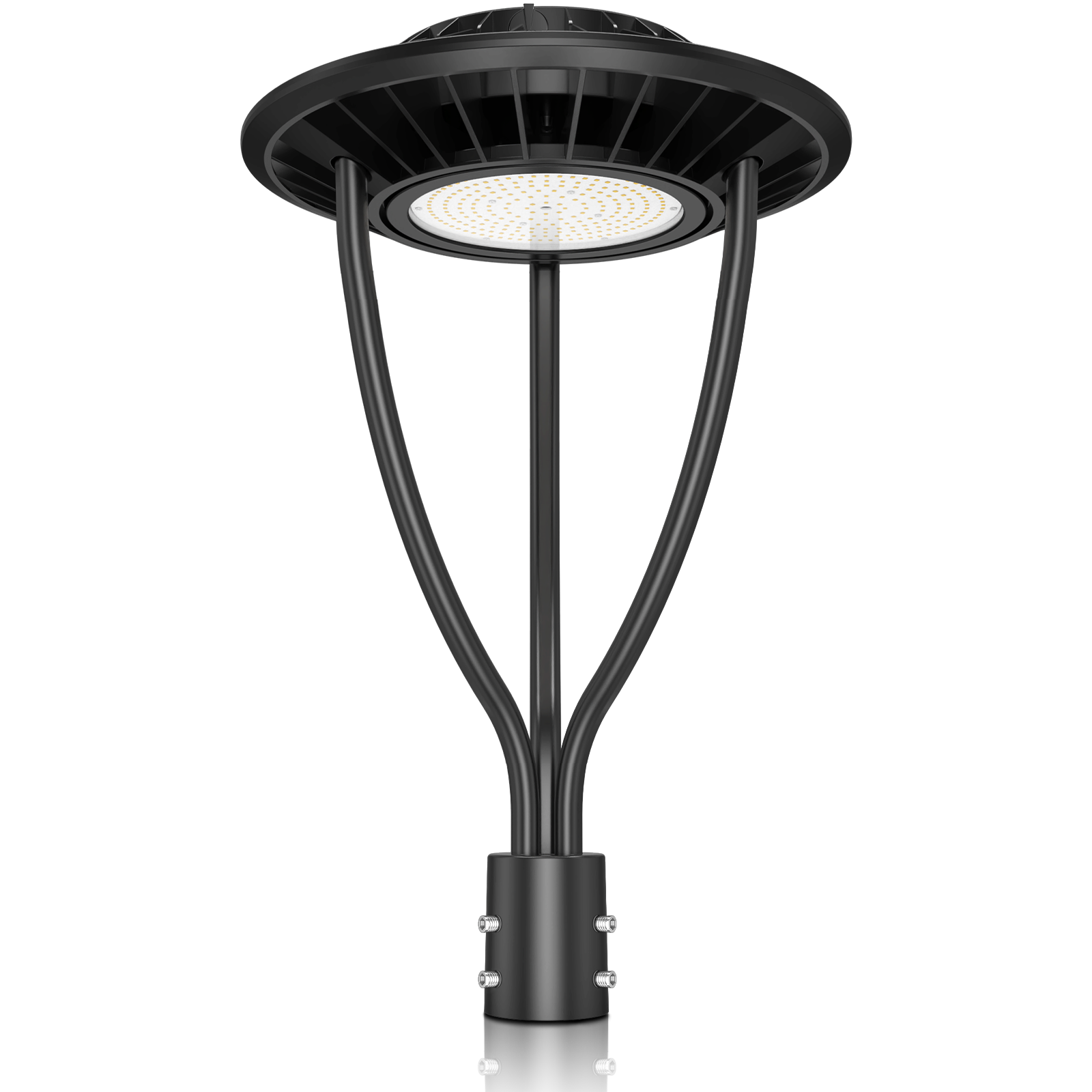

 		 LED Flood Light LED Post Top Light

 Voltage

 AC100-277V AC100-480V AC100-480V AC100-277V AC100-277V AC100-277V
  Applications Outdoor use, garden,parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on utdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on Outdoor use, Yard, Barn, Street, Area, Pathway, Patio and so on Outdoor use, parking lot, street, area, roadway, driveway, square, tennis court and so on

 Lumens
 		 7800LM~19500LM 14000LM~44800LM 14000LM~42000LM 8400LM~16800LM 14000LM~42000LM 7800LM~19500LM

Feature
 		 Dusk to Dawn Dusk to Dawn Super Bright Dusk to Dawn Super Bright Dusk to Dawn
Overseas Warehouse

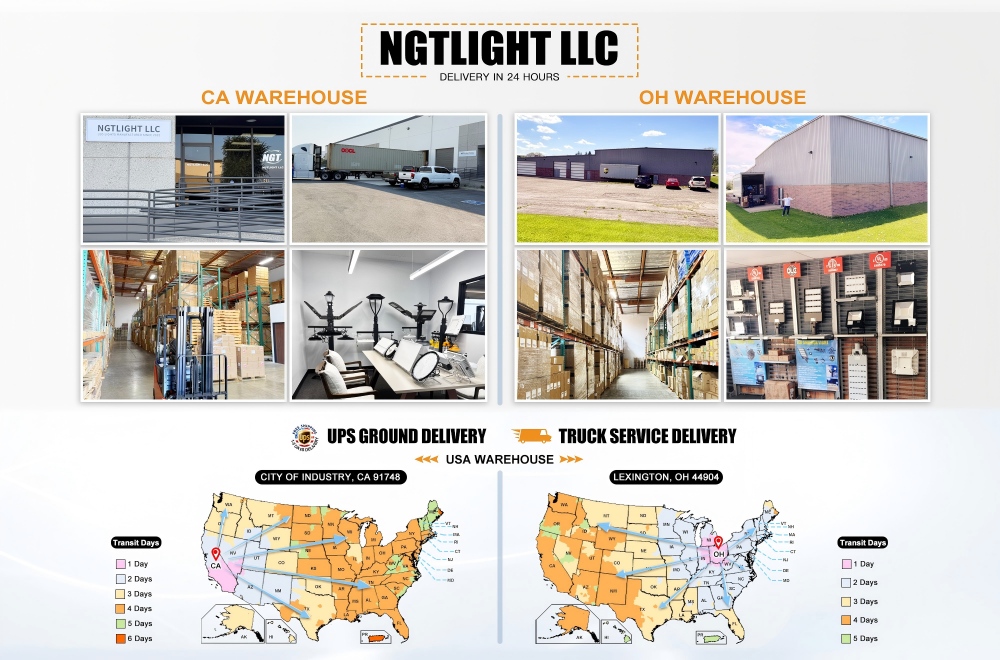

US&Canada Warehouse Fast& Convenient Delivery Located in CA,OH.Where we ship the lights depends on what products you need and our inventory conditions. After got inquiry we will check which warehouse ship the light to you.

FAQ
FAQ：
Q: Does it come with Pole ,what size how many feet ?
A: No it’s not come with pole, it’s have 3 kinds of bracket for option. All in one, slip fitter, trunnion.The slip fitter mount diameter of the hole is around 2.6 inch (66 mm).

Q: Is it Solar?
A:No,it is AC input voltage LED Lights.

Q: How does this light hold up in snowy/icy weather?
A: This led parking lot lighting is IP65 waterproof rating and the working temperature is -45~45℃.

Q: If this shoe box is dimmable?
A: The led shoebox area light is not dimmable.

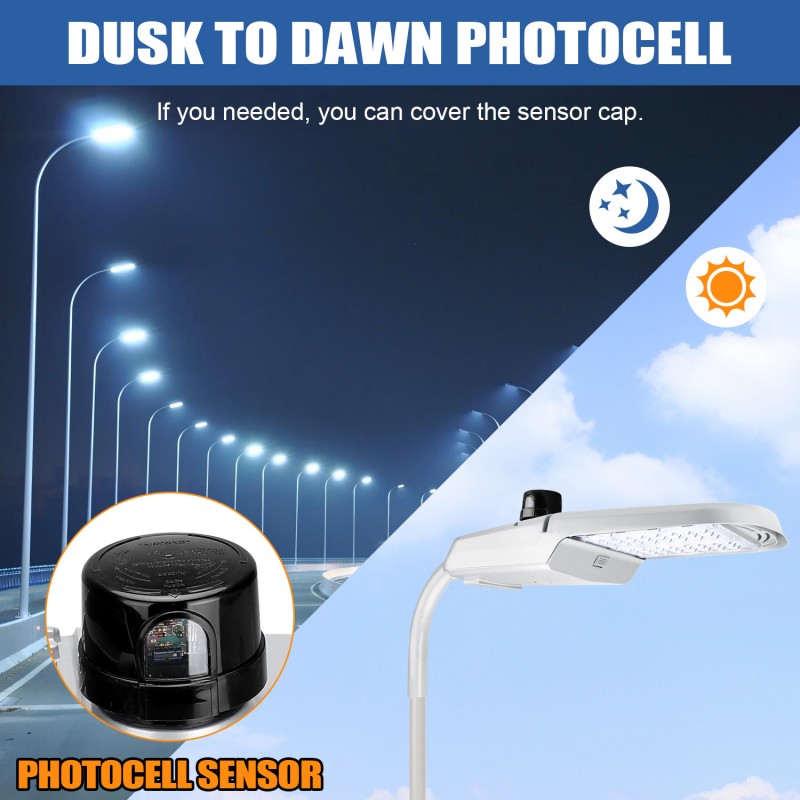

While it’s have photocell to control it dusk to dawn function.

Q: What is the light distribution on this led street fixture?
A: The light distribution is Type III, TYPE II,TYPE V, for others need longer time to prepare materials.

Q: Can it make 347V or 480V high voltage input?
No, it’s can’t make high voltage due to space restrictions of driver part.

Q: What certification this Shoebox have?
This led post top light is UL cUL certified, and it’s also DLC approved, it’s ok for you to apply for rebate. And we provide 5 years warranty. Anything wrong during the warranty period, we’ll solve it for you.

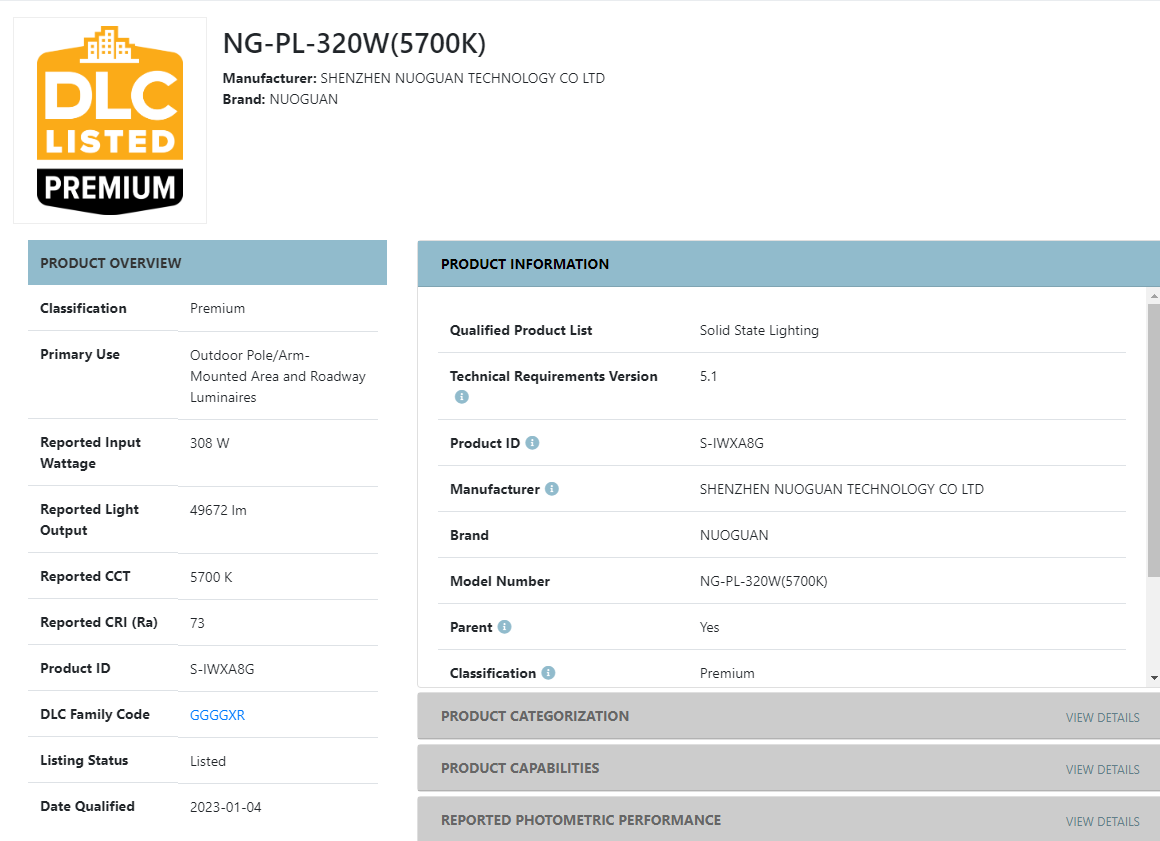

DLC Certification
