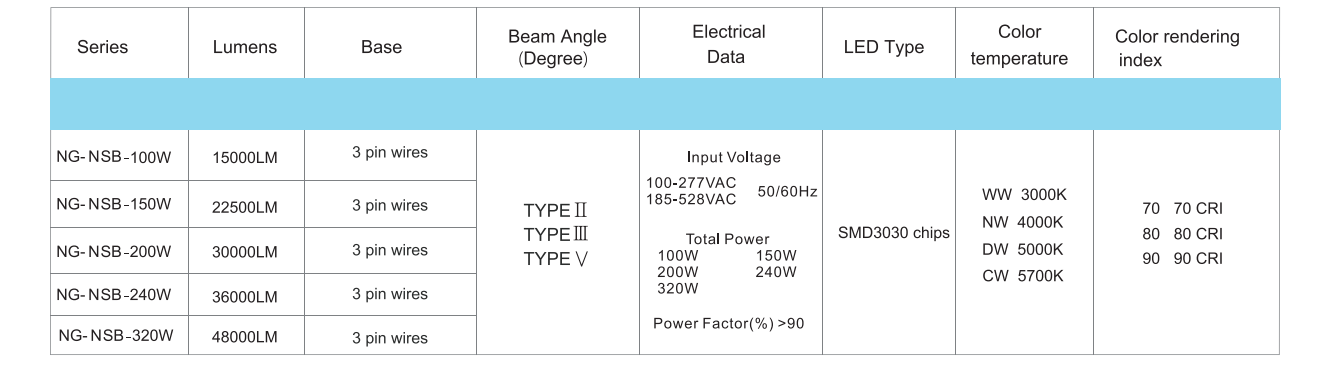

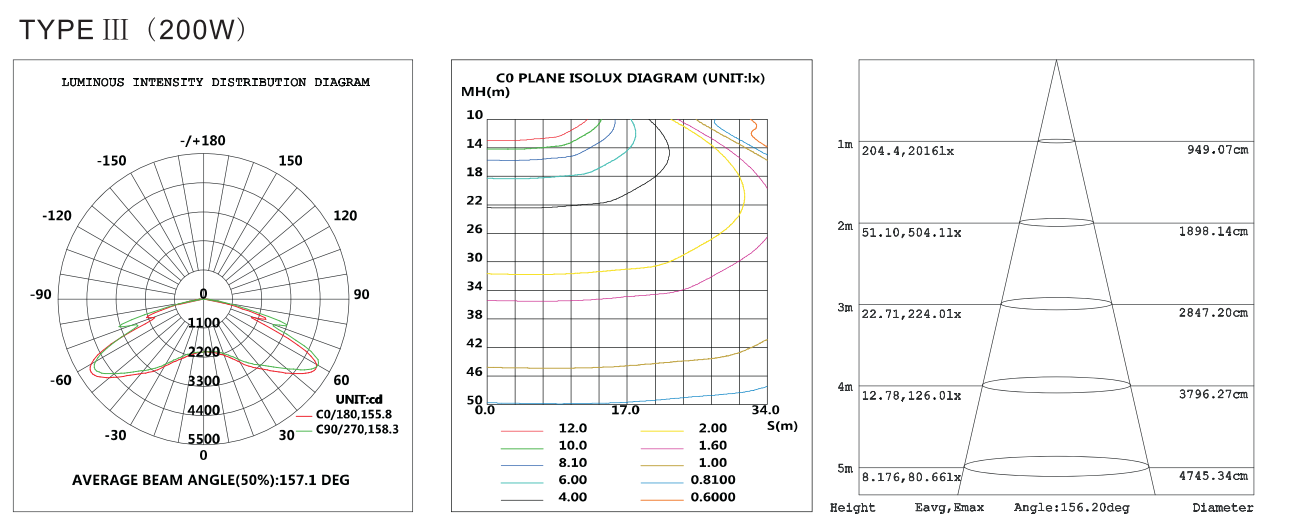

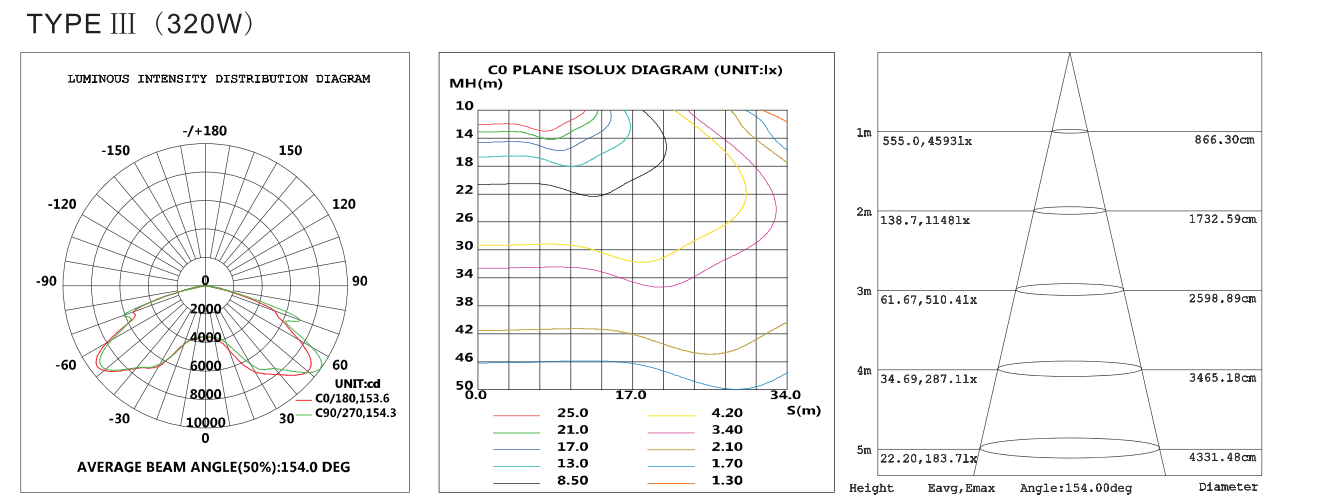

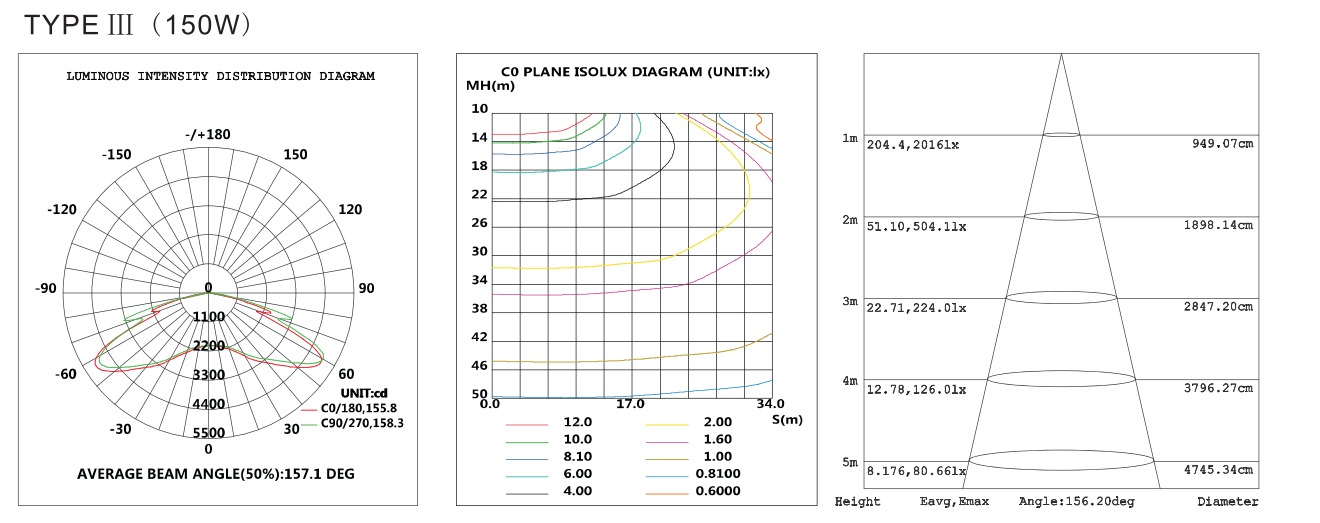

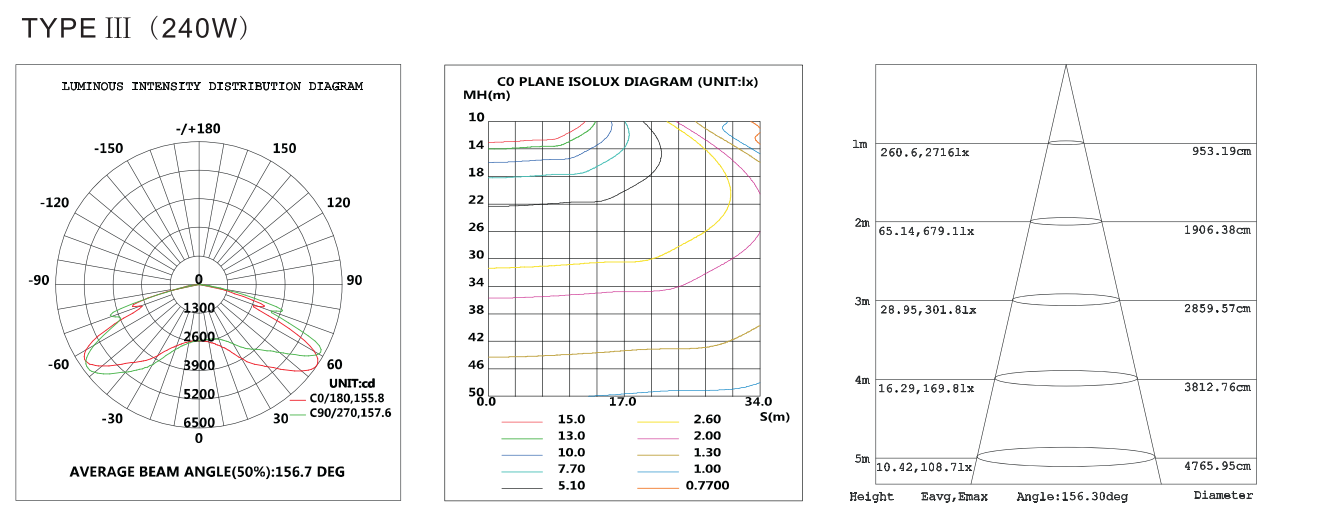

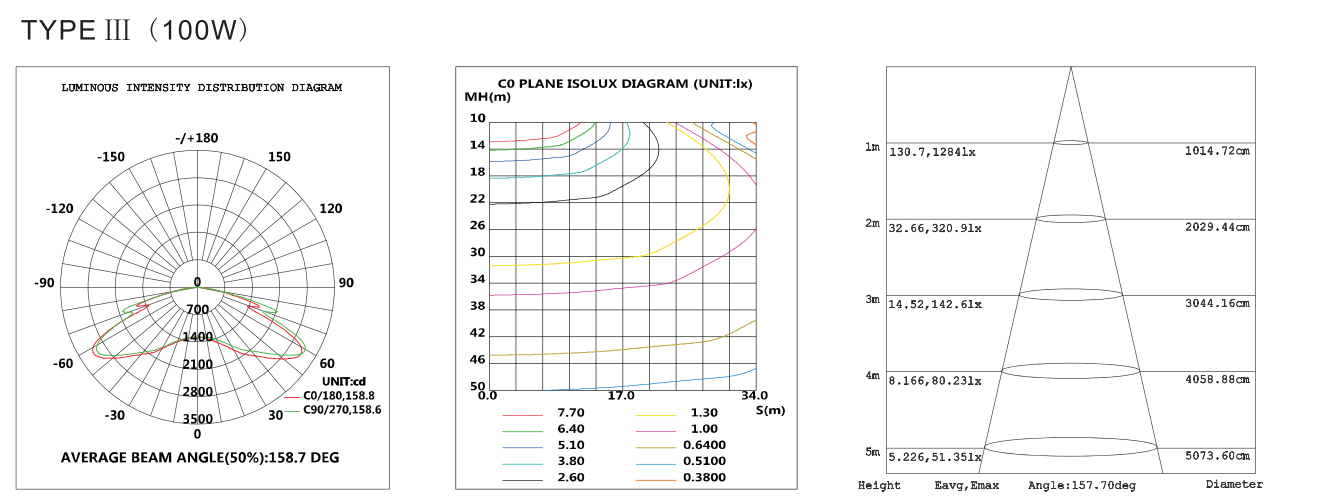

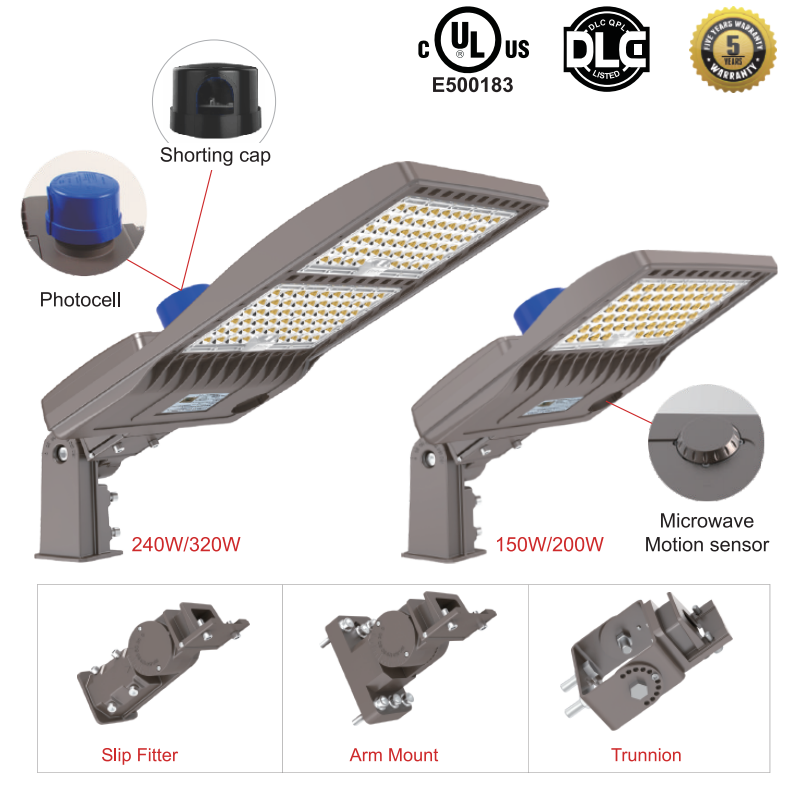

LED Shoebox Light -LED Shoebox fixture design for outdoor replace HID/HPS/MHL parking lot lights. -The one-piece die-cast aluminum housing with bronze UV resistant powder coat finish offers outstanding corrosion protection. -3 types bracket meet demand for any application.Ideal products for parking lot,street,roadways,walkways and public area. -100W-320W replace 400-1500W metal halide suitable for 18 to 36-foot are lighting application. -LED Shoebox fixtures are US patent approved also listed on the DLC Qualified Products list and are eligible for rebate. Features -100-320W Available -Dust-proof and Waterproof -UL.cUL.DLC approved -Dusk to Dawn photocell sensor -Microwave motion sensor -Die-cast Aluminum housing anti-corrosin -Silicone rubble seal,moisture,high temperature -6K High voltage Surge test approved -SMD3030 150LM/W LED chips -50,000hrs lifespan -100-277VAC.185-528VAC input voltage -All in one(Round,square pole),slip fitter.Trunnion choice -Beam angle: TYPEm TYPEH TYPEV -5 years warranty |
|

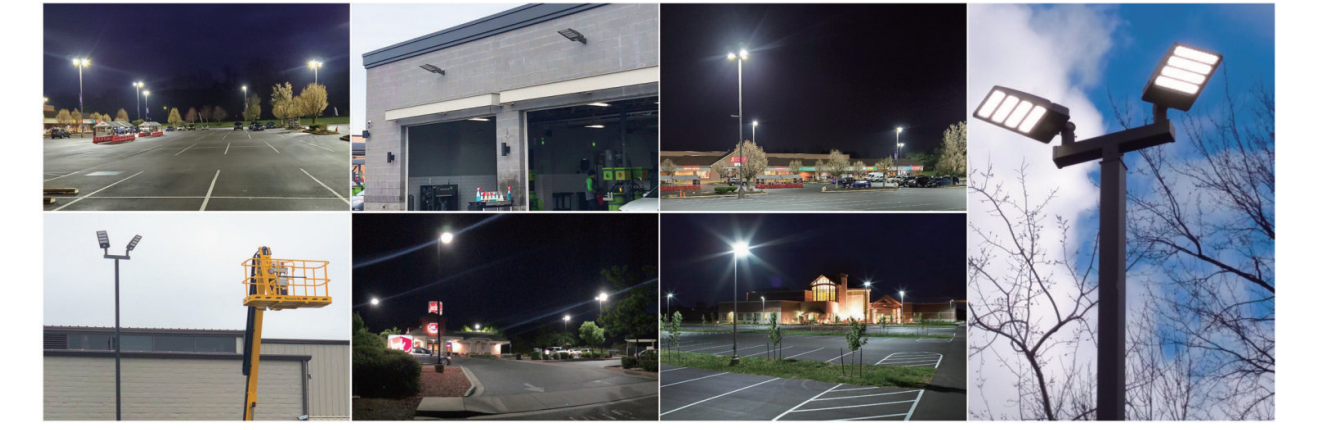

Applications LED Shoebox light series can be widely used in urban roads,Industrial areas,Residential areas,Sidewalks, Park!ng lot.Schools.Gardens and etc. |
|
Installation Instruction *Warning:Do cut off electrical source in order to avoid electrical shock and endanger life-safety before installation. *lnstall height from floor hight than 1.2m. Step 1: Start installation of the street light turn the street light to the back side Step 2: Connect the cables Connect the L,N,GND cables on the lamp to the corresponding L,N,GND cables on the lamp pole. Step 3: Fixation of the LED Street lights |
