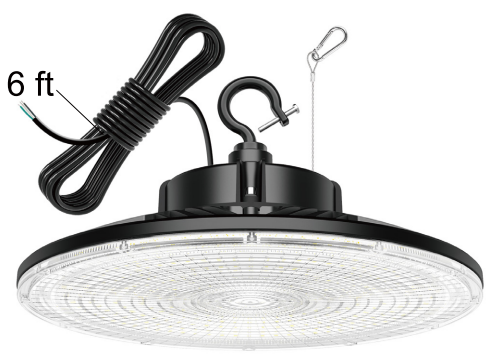

| Product Description -LED UFO High Bay fixture design for indoor replace HID/HPS/MHL high bay lights. -Provide high performance 140LM/W and long lifespan 50K hours, perfect for commercial and manufacturing, gymnasiums, warehouse lighting fixtures,and retail aisles. For applications with demanding temperature requirements such as facilities in southern climates. -These fixtures range from 100W~320W and are suitable for 20 to 25-foot mounting heights. -Special function equipped such as 0~10V remote dimming control and Microwave motion sensor. -LED UFO High Bay fixtures are listed on the DLC Qualified Products list and are eligible for rebate. |
  |
| Features -Super-Thin Aluminum Heatsink -Microwave Motion Sensor Function -Remote Control 0-10V Dimmable -100-277VAC/277-480VAC Input -SMD2835 LED Chips 140LM/W -6K High Voltage Surge test approved -120 Degree Beam Angle -High Power Factor >0.9, LowTHD Driver -Excellent Heat Dissipation -Energy Saving 50% at Least -UL cUL DLC approved -5 Years Warranty |
 |
| Applications LED UFO PRO light series can be widely used in supermarket,garage,factory,workshops,highway toll station,gas station exhibition hall,commercial and industrial lighting etc. |
|
    |
|

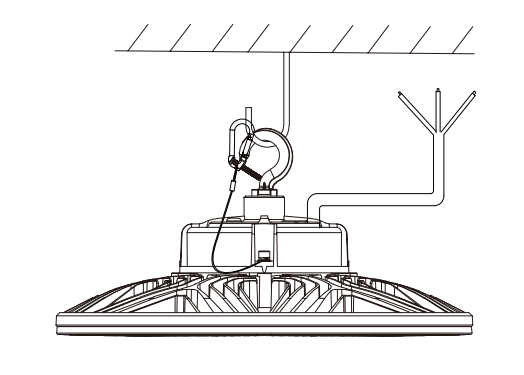

| 1.Open the box and take out the LED light and ring. 2.Install the ring into the light body as following diagram |
3.Hung the LED light with a sturdy hook. |
 |
|
| 4.Hang the safety wire one side to the lamp, | 5.Connect wires as below diagram and turn on power to lighting |
 |
 |
| 6.Use remote control to adjust product brightness,0-100% adjustment. Or use micrwave induction to intelligently adjust product functions |
|
 |
|
         |
|
  |
|
