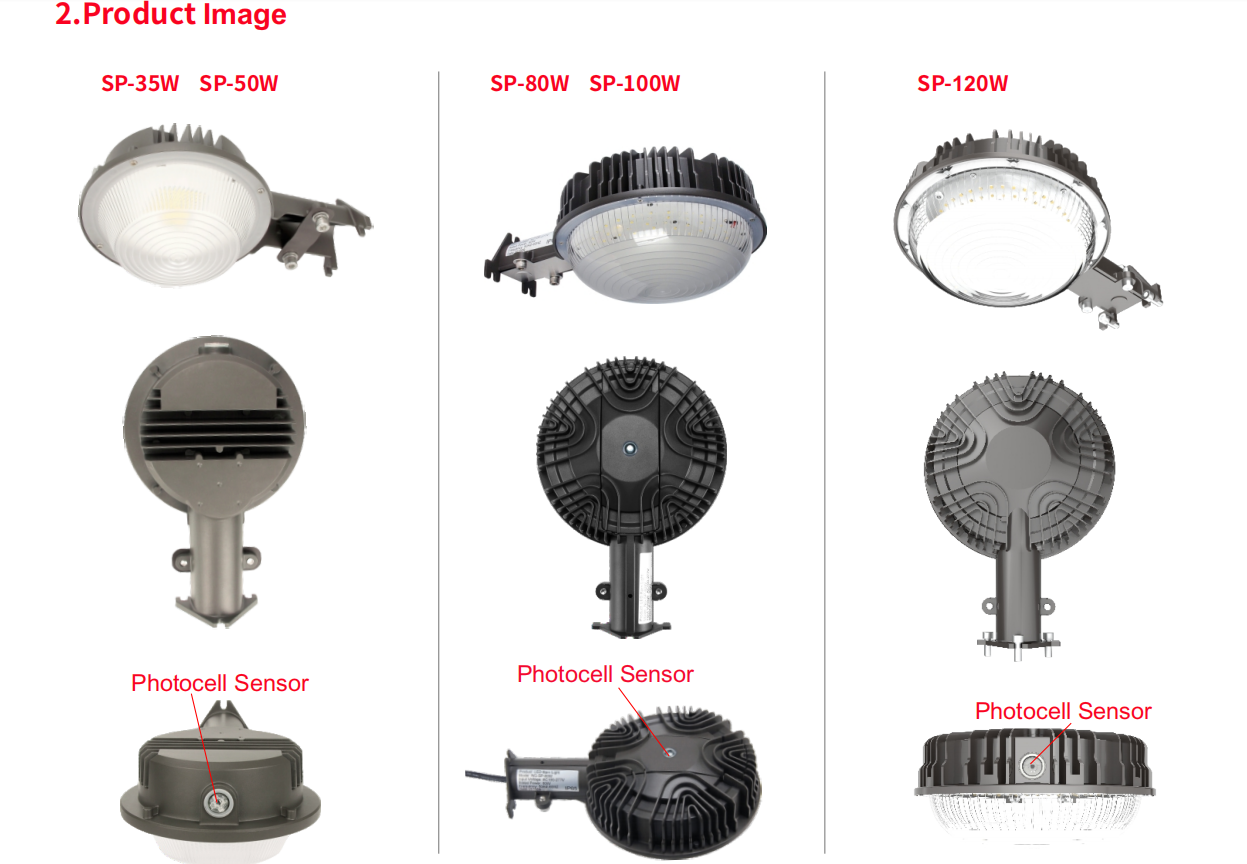

Dusk-to-dawnLEDOutdoorBarnLight(PhotocellIncluded) Model No.: SP-35W SP-50W SP-80W SP-100W SP-120W Power: 35W 50W 80W 100W 120W 1.Features
|
|||||||||||

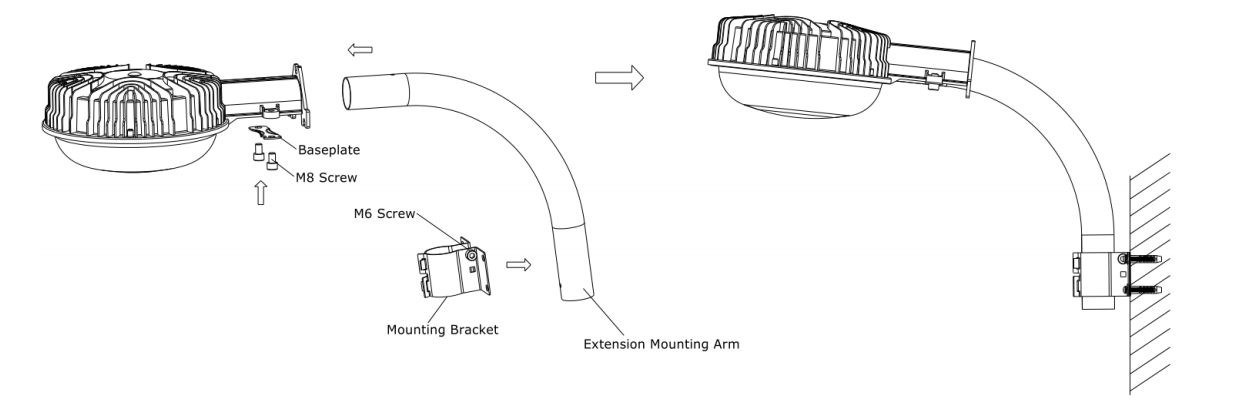

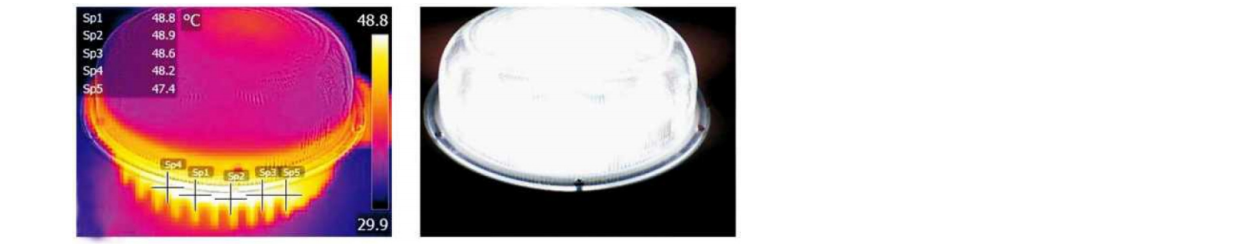

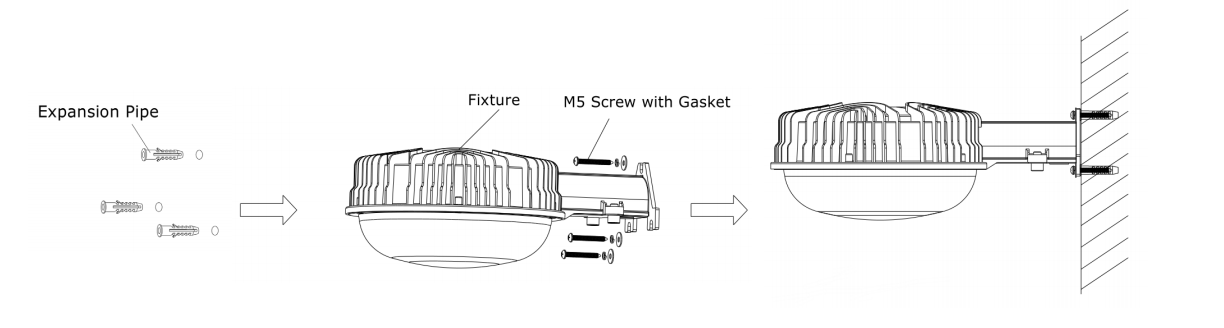

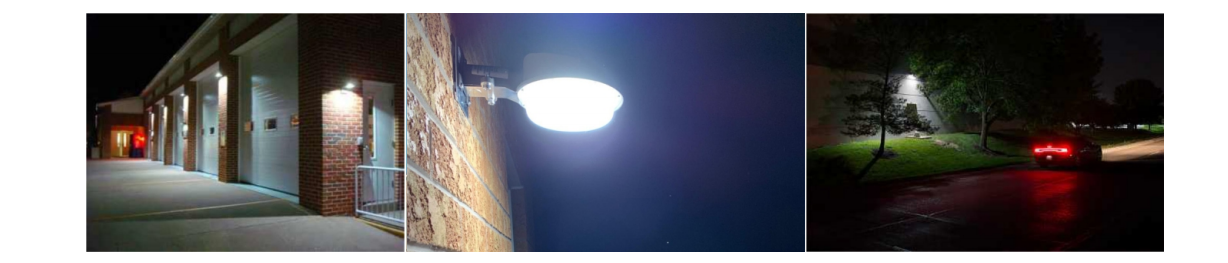

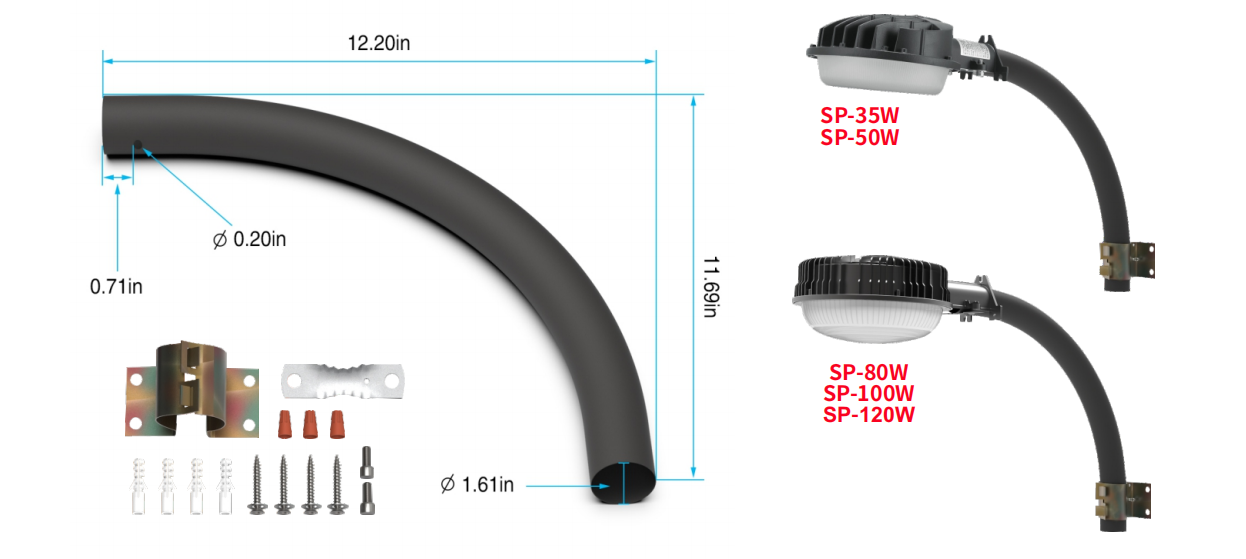

5.Application Widely used in Shopping mall, hotel, shop, showroom, cafe, restaurant, garden, porch,etc. 6.ChipTemperatureTest Great heat dissipation performance, good for LED lifespan 8.Installation SP-35WSP-50W 1. Dusk-to-dawn LED Outdoor Barn Light luminaire features a design that can be mounted to any vertical surface using lag bolts or other comparable and suitable anchors, with a wiring compartment that is easily accessible without the need to remove the lens or disassemble the fixture. 2. Dusk-to-dawn LED Outdoor Barn Light can also be mounted to existing 1- 1/2'' or 1-5/8'' pipe mounts, offering the installer the flexibility to satisfy many different mounting applications and requirements. 3. This is especially useful when using the LED Outdoor Barn Light to retrofit older dusk-to dawn luminaires. SP-80WSP-100W SP-120W INSTALLATION#1-Wall Mounting: 1. Drill three holes into the wall, then screw the expansion pipe into the holes 2. Connect AC Power Line, Black-L wire, White-N Wire, Green-E Wire 3. Tighten three M5 screws with gaskets to fix the light on the wall INSTALLATION #2 -Arm Mounting(Kindly Note: Mounting Hardware is not included): 1. Connect AC Power Line, Black-L wire, White-N Wire, Green-E Wire 2. Tighten the mounting bracket on the extension arm with M6 screw, then install the baseplate and two M8 screw to fix the arm on the fixture 3. Drill into the wall, then screw the expansion pipe into the holes 4. Tighten Four M5 screws to fix the light on the wall |
