LED High Bay Light

Teach you How to Use UFO LED High Bay Lights Step by Step

Views : 405
Author : Angel
Update time : 2022-07-01 18:29:26
LED UFO high bay LIGHT
Features

UL,CUL,DLC approved
100-277V / 200-480VAC input voltage SMD3030 150lm/w led chips
Upgrade 120° Glass Cover won't change color 0-10V Dimmable / Microwave Sensor function High Heat Resistance Die Casting Heat Sink    IP65 waterproof for both indoor and outdoor high mount applications
6KV High Voltage Surge test approved 50,000hrs lifespan
OEM Special design Company Logo     Replace 400~1500W metal halide/HPS

Applications

LED UFO LIGHT series can be widely
used in warehouse,Grocery,Garage,
shopping mall etc.


LED UFO high bay LIGHT
LED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHT
1.Open outer box take out light and ring.
2.Install ring in the light body according to the diagram.
Installed
 the ring with light must reliable.


3.Install ring in sturdy hook.
LED UFO high bay LIGHT
5. Hang the safety wire one side in the lamp body,another side
hang in sturdy hook shown by diagram.

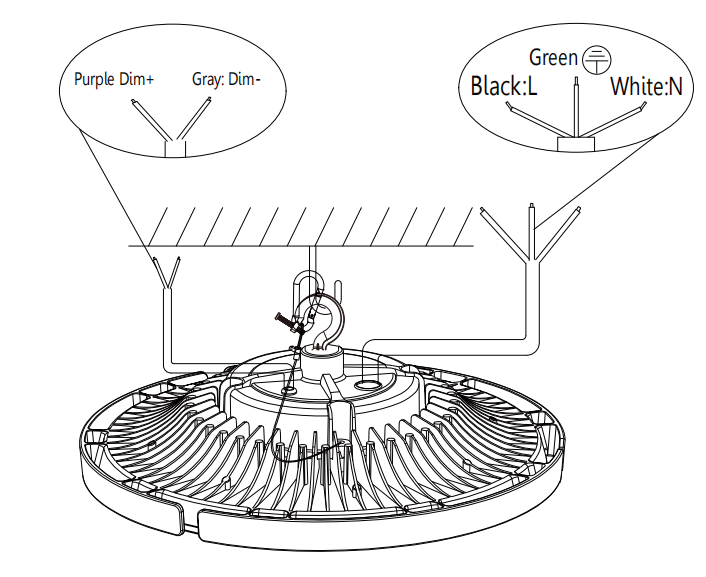

6. Wiring by below diagram
Black
 wire connect     L
Green
 wire connect   G
White
 wire connect   N
Dimmable
 wire:
Gray Dim -
Purple Dim +
urn on the power to lighting.


LED UFO high bay LIGHT LED UFO high bay LIGHT
LED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHTLED UFO high bay LIGHT
