LED Post Top Light

Take you to a better understanding of LED post top lights

Views : 121
Author : Angel
Update time : 2022-06-29 16:08:40
LEDPosttoparealight

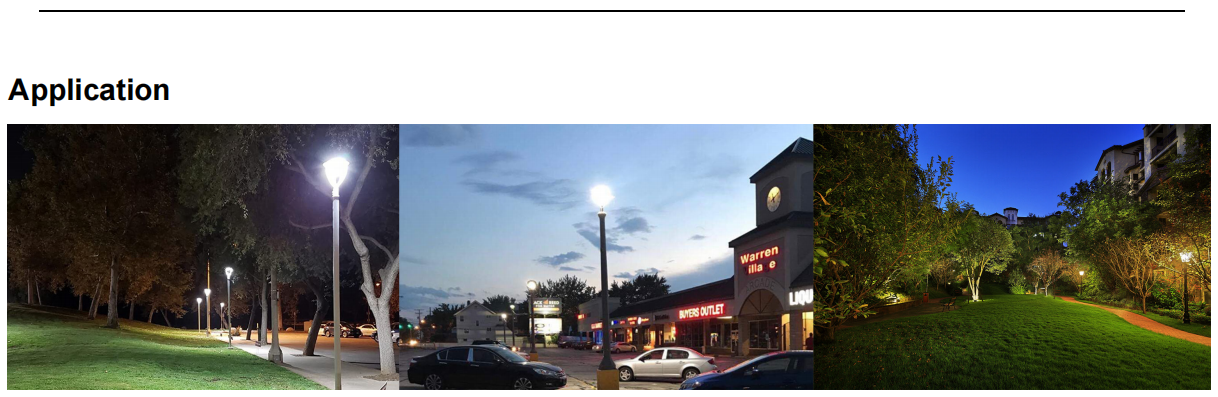

Post Top area light fixture ideal for pathways
and parks for general area lighting applications.

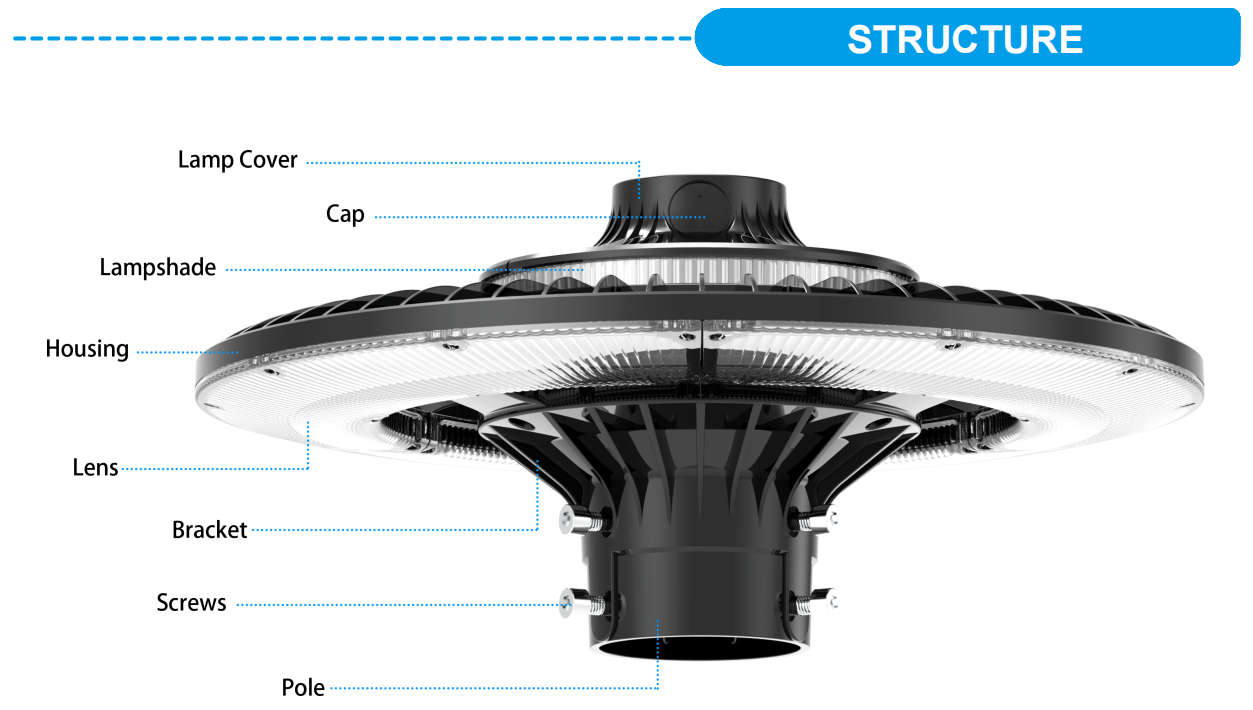

Custom designed die cast aluminum housing with
corrosion resistant powder coat paint finish,

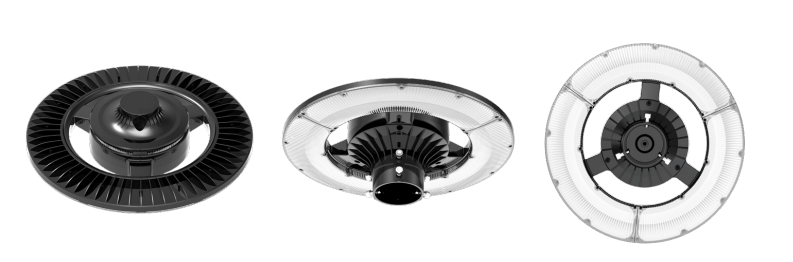

super thin round lighting body provide high light distribution,
the original top illuminating part provide unique light effect.
Support rods attach to a 2 3/8” tenon pole adapter
It comes in 4 different outputs and offers photocell
and CCT selectable options.

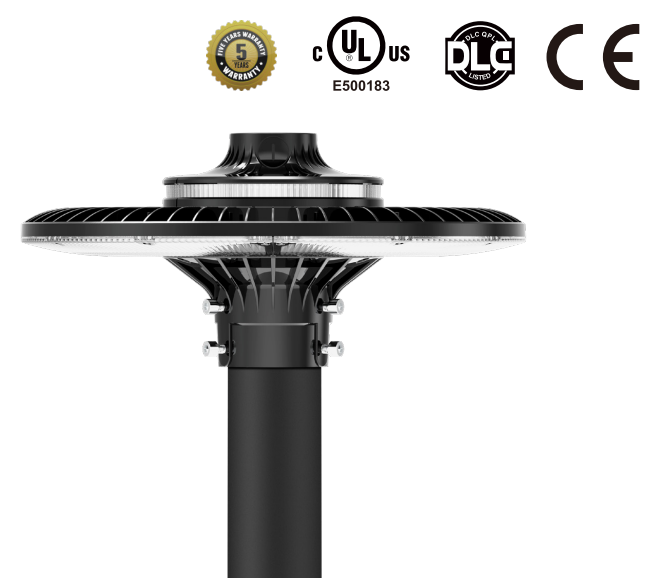

LED Post top fixture is UL cUL DLC CE,
DLC approved safety certification guaranteed,
eligible for rebate

Features

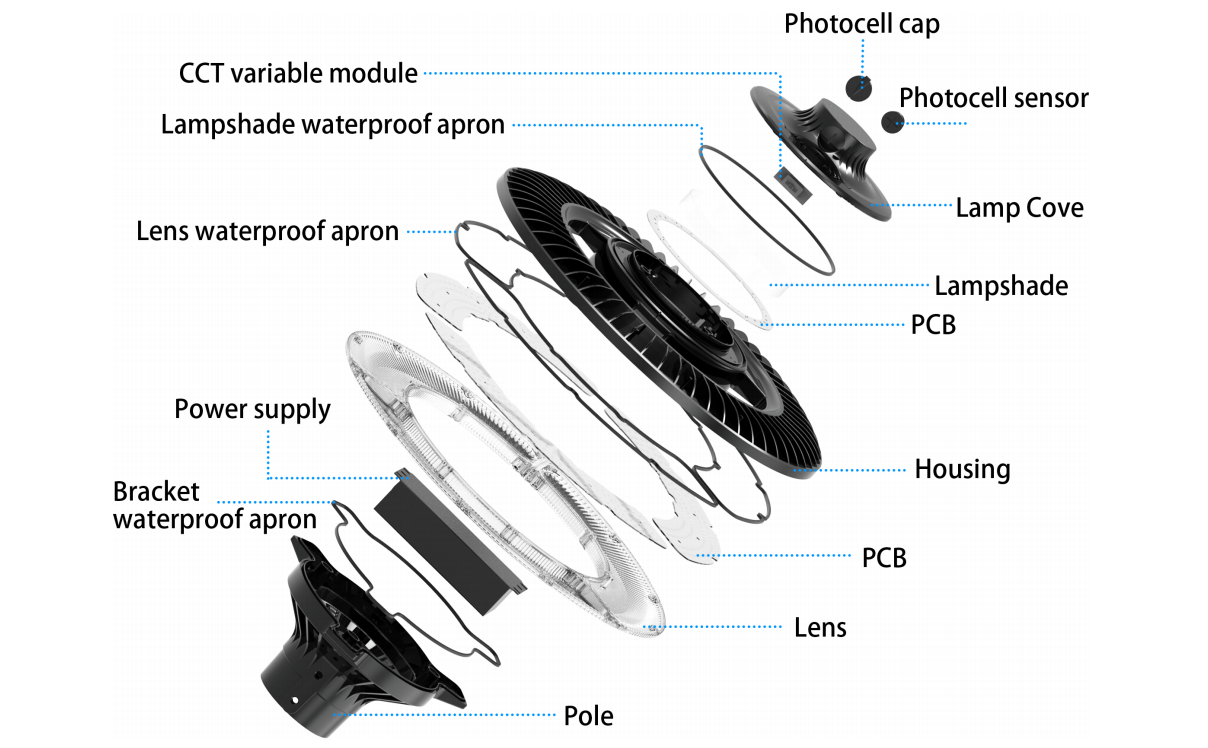

Unique 2 lighting part design.
60W,80W,100W,120W,150W,200W options
IP65 waterproof dust free
6kV built in plus 10kV external surge protection
130Lm/W SMD2835 chips.
3000K,4000K or 5000K CCT selectable options.
100V-277V, 50/60Hz, PF>0.9, CRI>80
Photocell dusk to dawn sensor
UV stabilized vandal resistant polycarbonate lens
UL cUL DLC CE approved.
Slip fitter mounting fits 2 3/8" tenon

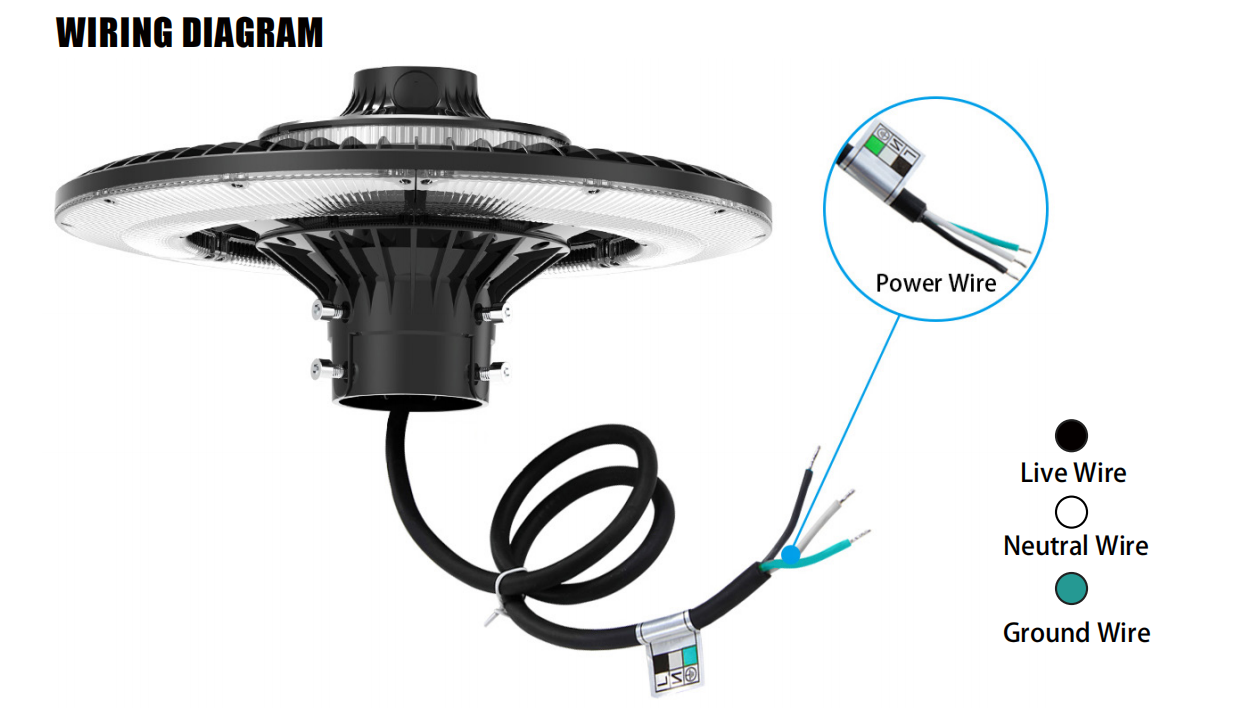

1.Properly link AC wires with light wires correctly,
Live:Black
Neutral:White
Ground:Green
2.Insulating and protect wires properly
3.Fit the tenon bracket into pole tighten the 6 screws then finished.

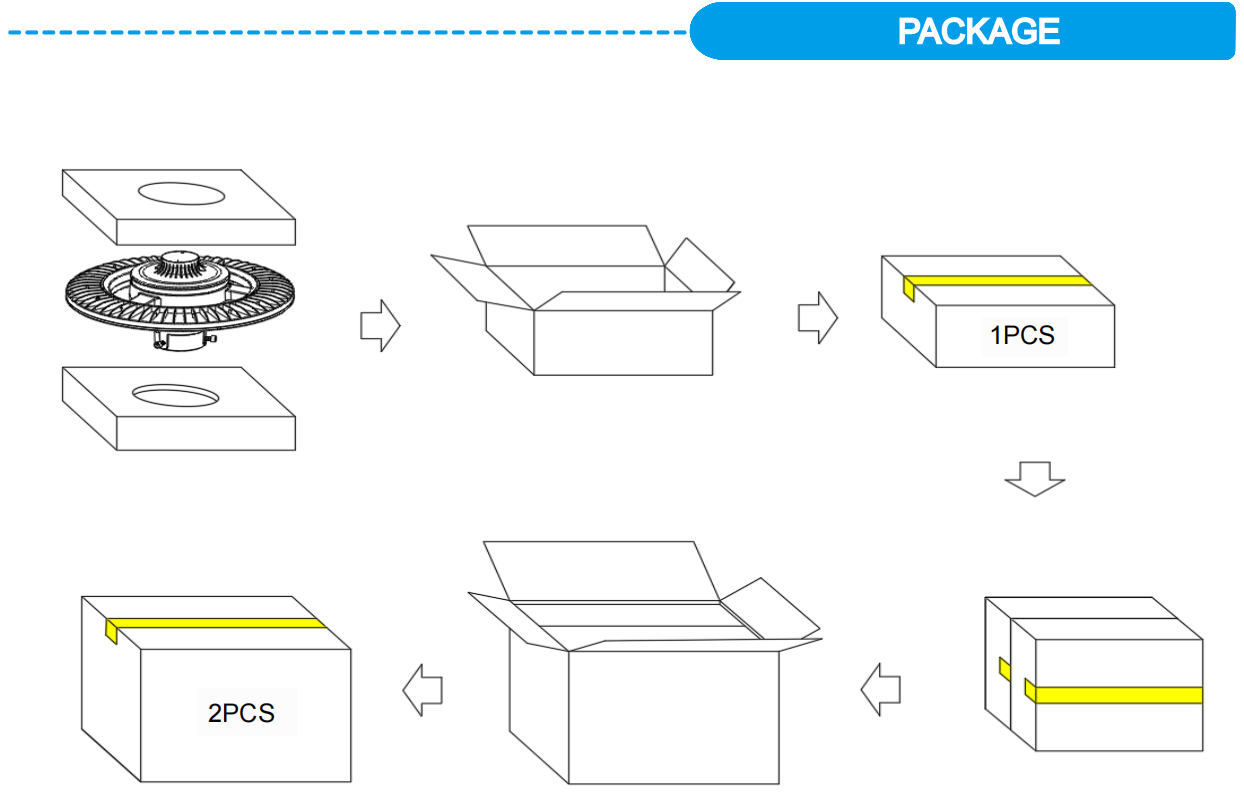

Power


Unit

 Size

Grass weight

Volume

60W~100W


2PCS

455*360*360mm

9.4kg

0.059

120W~200W


2PCS

495*460*460mm

14.5kg

0.105
