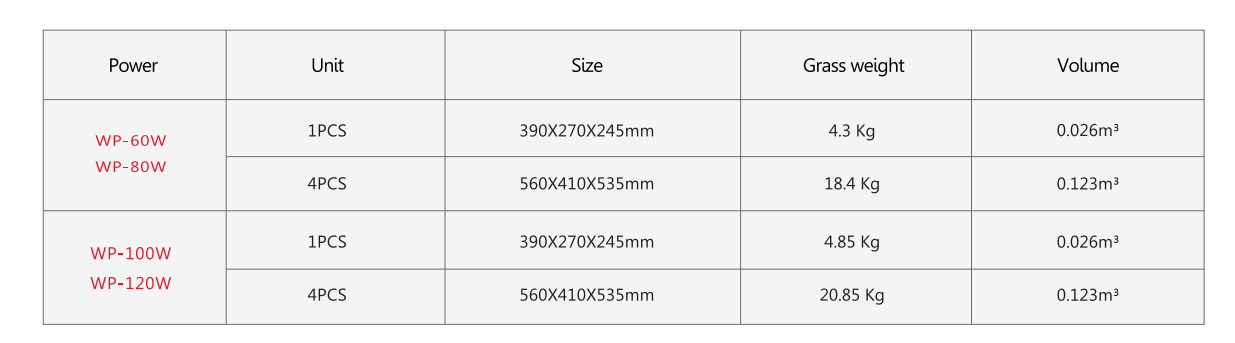

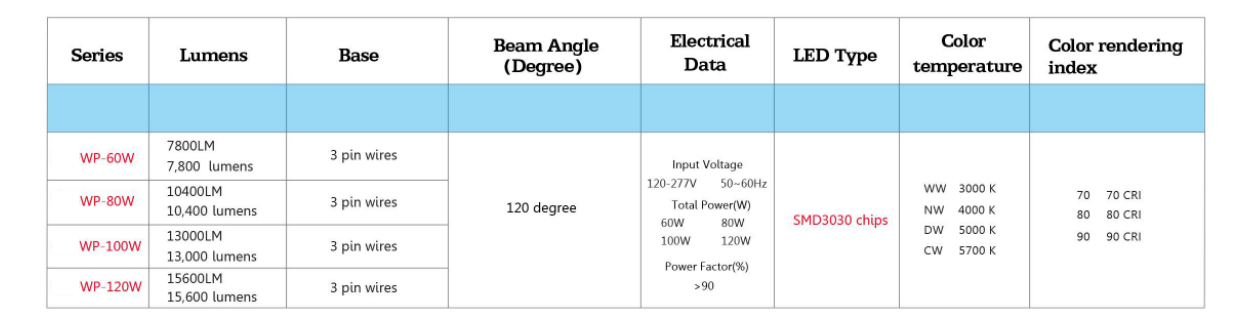

LED WALL PACK Excellent Performance Humanization Design Wide Applications 120 degree Beam Angle lighting Energy saving, long lifespan Features 60-120W available Efficient heat dissipation High output 130LM/W SMD3030 Chips ETL cETL DLC Approved Conduit entrances on back, side and bottom Built-in power supply modules Easy installation and maintenance Universal input voltage (120-277V) Wet Location Energy saving 50% at least Available with Photocell/sensor Top quality with 5 years warranty No magnetic disturbance driver design Gross weight 43KGS (60-80W) 4.85KGS (100- 120W) Package size: 390*270*245mm(carton) |
|
Applications LED Wall Pack series can be widely used in hospitals, museums, gas stations,a Ileys, pathways, parking lots, hospitals, college cam puses, barns, sheds,parking garages, etc. |
|

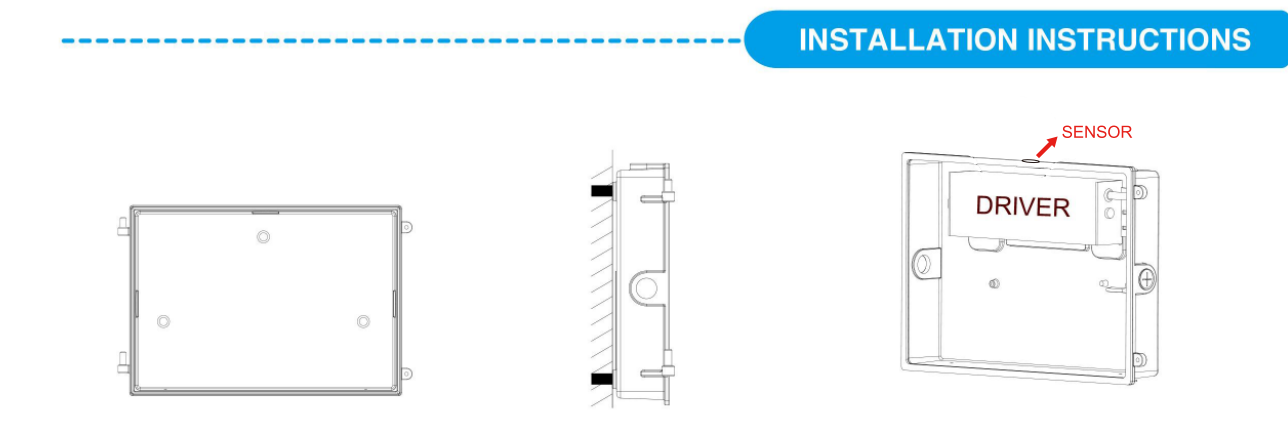

1 .Take down wallpack base(pic 1) |
2.Fix base on the wall(pic 2) |
3, If with sensor,could connect any of 3 holes of the base side(pic3,pic4) |
4.Take down screw(pic 4) |
5.lnstall waterproof connector first, then pass through AC line(pic 5) |
6.Put the cover on the base joint theDC end waterproof connector with each other, and tighten the cover Cover,and screw to fix(pic 6) |
