| *Warning: Do cut off electrical source in order to avoid electrical shock and endanger life-safety before installation. *lnstall height from floor higher than 1.2m. safety rope： The safety rope will be hung on the lamp body, the other end fixed to the ceiling expansion bolts. |
|

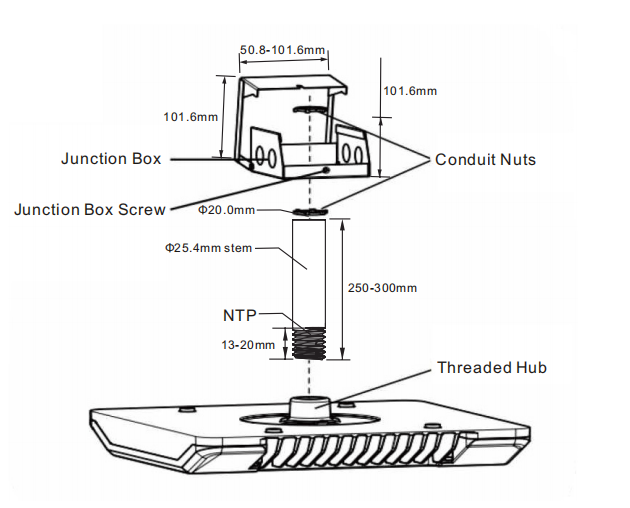

| ❶ INSTALLATION KIT(NOT INCLUDED):
1.Junction Box
2.01 "Stem
3.Conduit Nuts

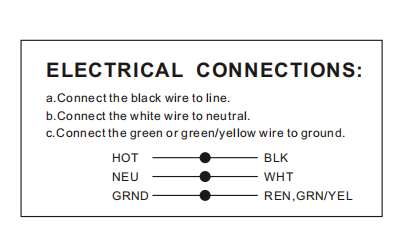

STEP1:Feed the luminaire leads through the Stem and attach Stem to luminaire by threading the stem into the threaded hub. STEP 2: Assemble the junction box to the Stem by placing one of the conduit nut onto stem. STEP 3: Loosen, do not remove, junction box screw and flip junction box cover up. Place the junction box onto the stem. STEP 4: Place the second conduit nut on to the stem from inside the junction box and tighten the nut. STEP 5： Reference luminaire installation instructions for making electrical connections. STEP 6: Sealed by waterproof glue between fixture and pole. |
 |
| Use UL complied junction box and strain relief means to meet installation requirements. The unil is designed for years with elementary care. For optimum performance, periodically clean the reflector and lens with a mild, non-abrasive glass cleaner and soft cloth. Do NOT use solvents ofcleaners containing abrasive agents. When cleaning the fixture, make sure you have the power turned off and do not spray liquid cleaner directly onto the LED, socket, or wiring. |
|
| SIMPLE METHOD OF INSTALLATION: Make sure that the ceiling can support the weight of the lamp 1 .Openings one hole greater than 40mm through hole in the ceiling. 2.Put the fixture on the ceiling, make four marks according to 4 mounting kits, then drill 4 holes forthem.
3.Connect the wires correctly and make sure the good wire protection.
4.Get rubber plugs into the holes, match 4 mounting kits to the rubber plugs, then fix the fixture on the ceilling by screws.
Ensure that no wires are pinched during installation of luminaire.
5.After installation , sealed by waterproof glue between fixture and the mounting surface
|
 |
 |
|
 |
|

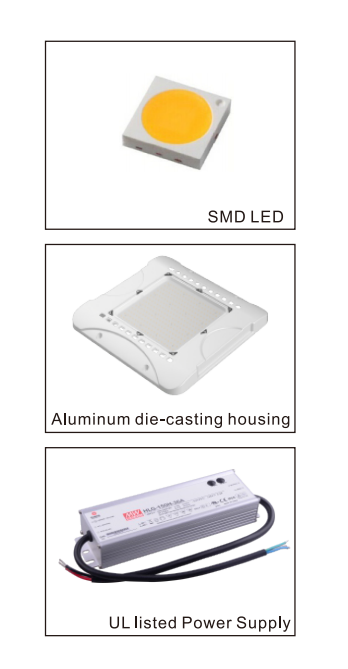

| 1. Aluminum die-casting heat sinks is good for heat dissipation. 2.It's major to replace the conventional gas station light. 3. Green, energy saving, long and reliable life of 50,000 hours. 4. No RF interference, No IR/UV radiation ,no mercury pollution. 5. Wide colour availability in degrees Kelvin(K),2700-6700K. 6. Streamline exterior design, beautiful appearance. 7. Environment friendly .energy saving (70-80%). 8. Special circuit design, each LED work separately, avoiding the single broken LED influence problem. |
 |
 |
|

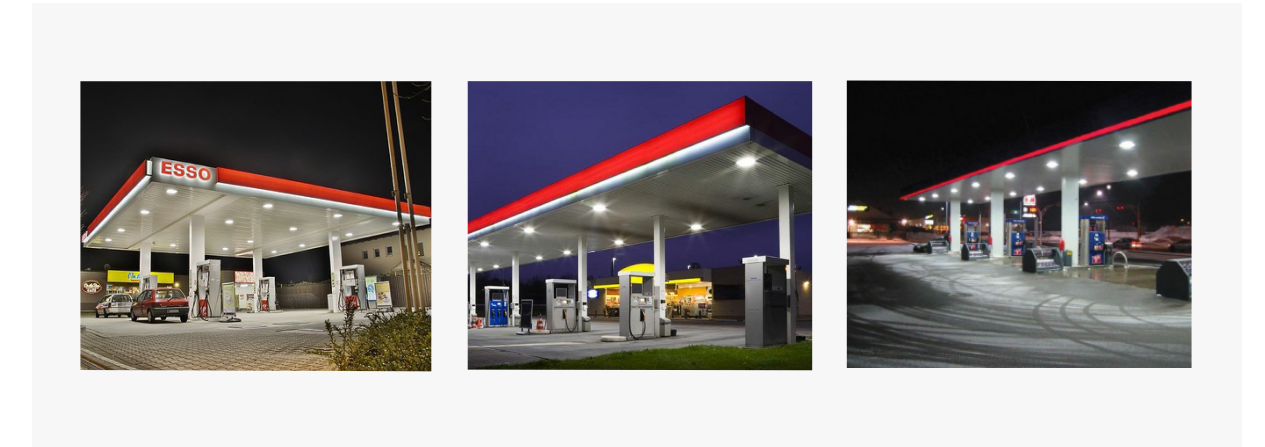

| 1 .Gas station lighting. 2.Petroleum canopies lighting. 3.CNG fueling stations lighting. 4.Low-medium bay general lighting. 5.Soffits lighting. |
|
 |
|
