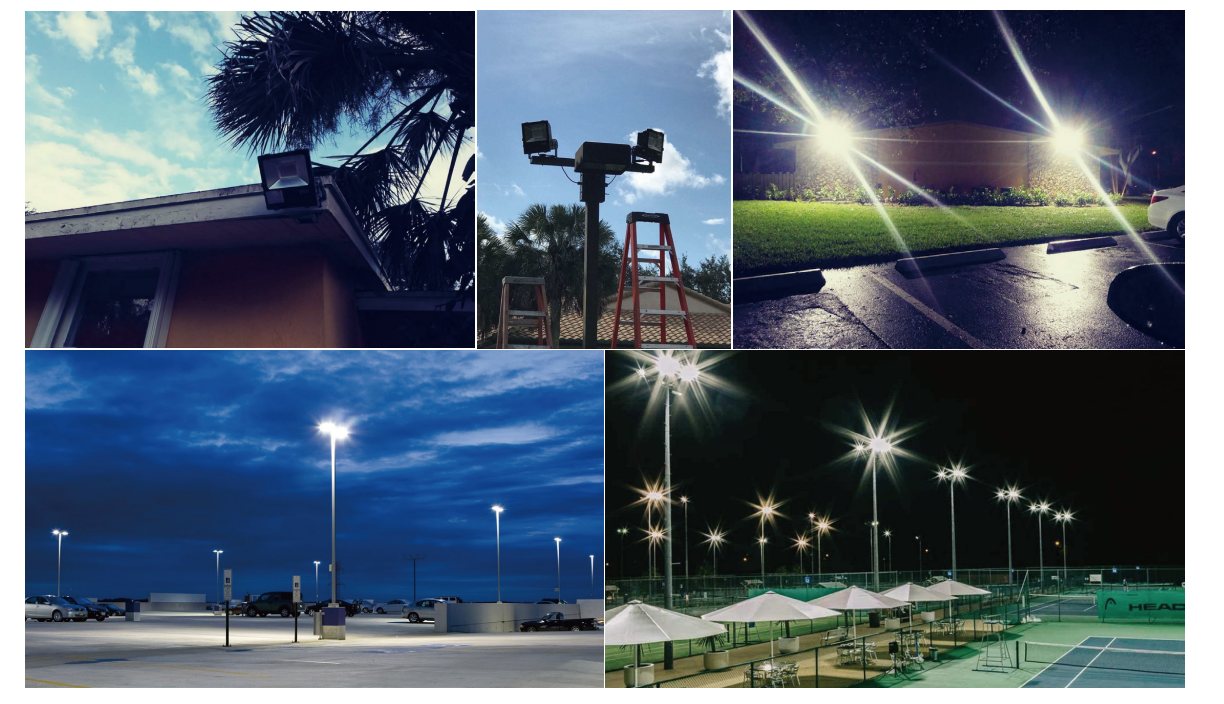

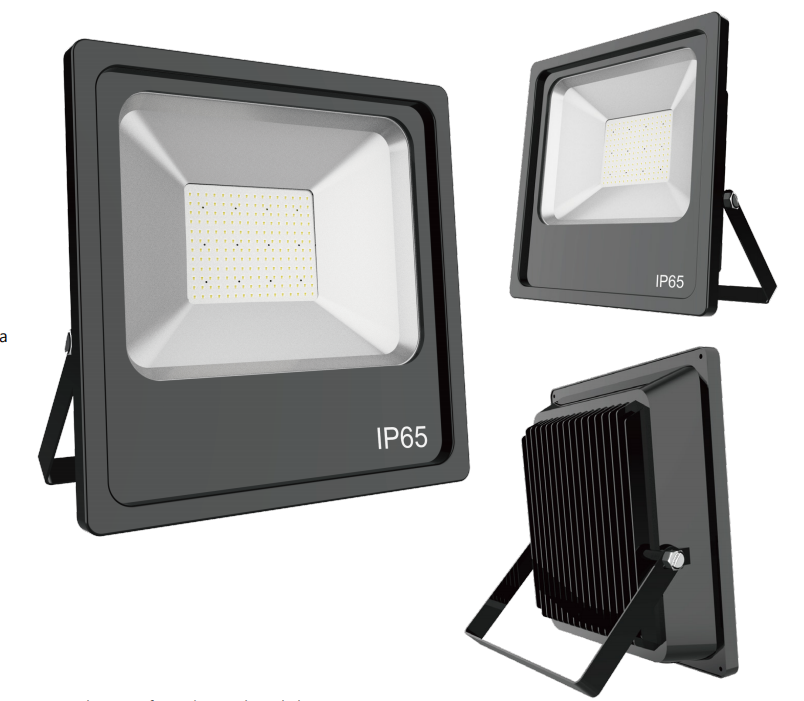

LED FLOOD LIGHT HIGH QUALITY LIGHTING EASY INSTALLATION SAFE AND ENVIRONMENTALLY FRIENDLY WATERPROOF AND DURABLE SAVING ENERGY Features 100W~150W for choice. IP65 Dust free and waterproof ETL,cETL,DLC approved Aluminum fin heat sink light in weight Tempered glass safety to install Adjustable bracket change concentrate lighting area 120 degree Beam Angle. 6K High voltage Surge test approved. SMD2835 140Lm/W LED chips. 120V±10% input voltage 50,000hrs lifespan Ambient operating temperature -40°C to 45° C Replace 250~400W metal halide/HPS External No magnetic disturbance driver design Application in parking lot,street,Garden,yard etc.. |
|
Application LED Deformable lamp series can be widely used in garage, warehouses, factories and workshops etc. |
|

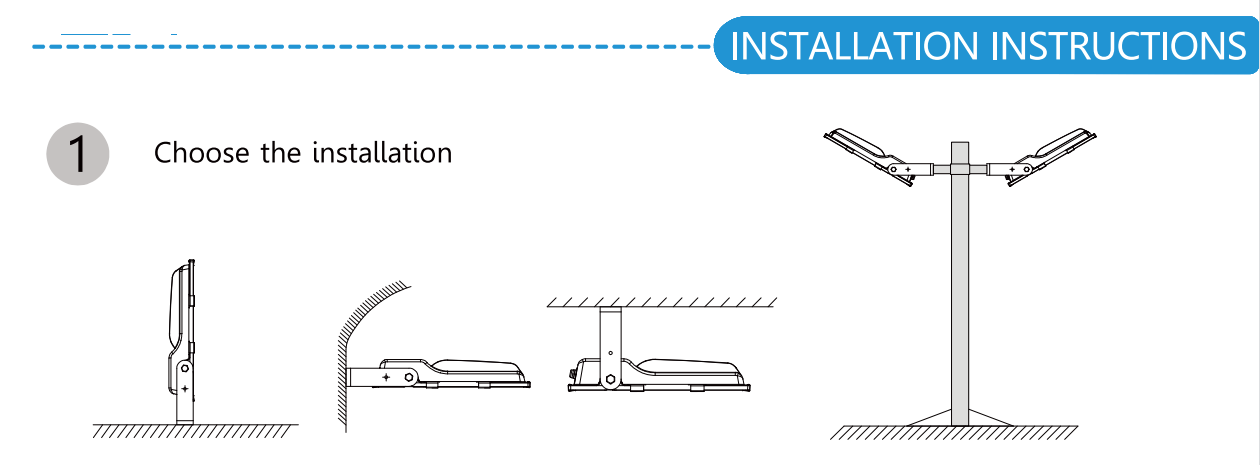

A: Ground installation. |
B: Wall installation |
C: Ceiling installation |
D: Pole installation |
1. Install the lamp into where you need. 2. Use some expansion Nails to fix the bracket of the lamp. |

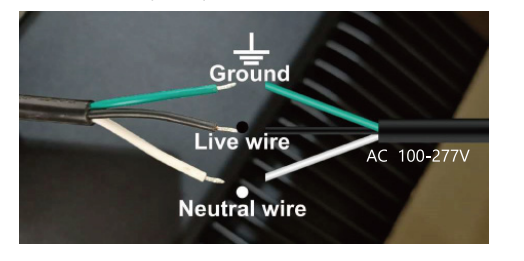

3. Connect the power cord as following diagram then make waterproof protection. |
4. Adjust light fixture to the angle as you want, and then fix it. |
5. When you use junctionbox and strain relief, please make sure to follow the installation requirements as below: Material: Zinc-iron Turn off power supply. The diameter of the hole for power cord do not more than 10mm Put the power cordin the junction box, and make a knotin the cord as strain relief. Connect the wire in the junction box by close-end connector as following diagram, Please note that the the green/yellow wire should be connected to the ground. |
6. Finally, fix the junction box cover with screws. |
